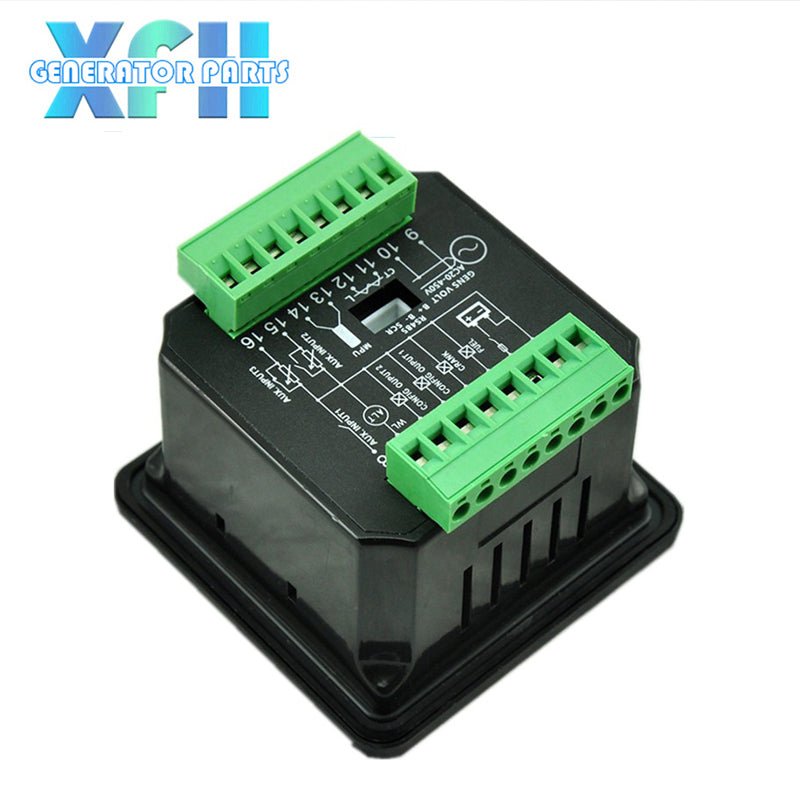

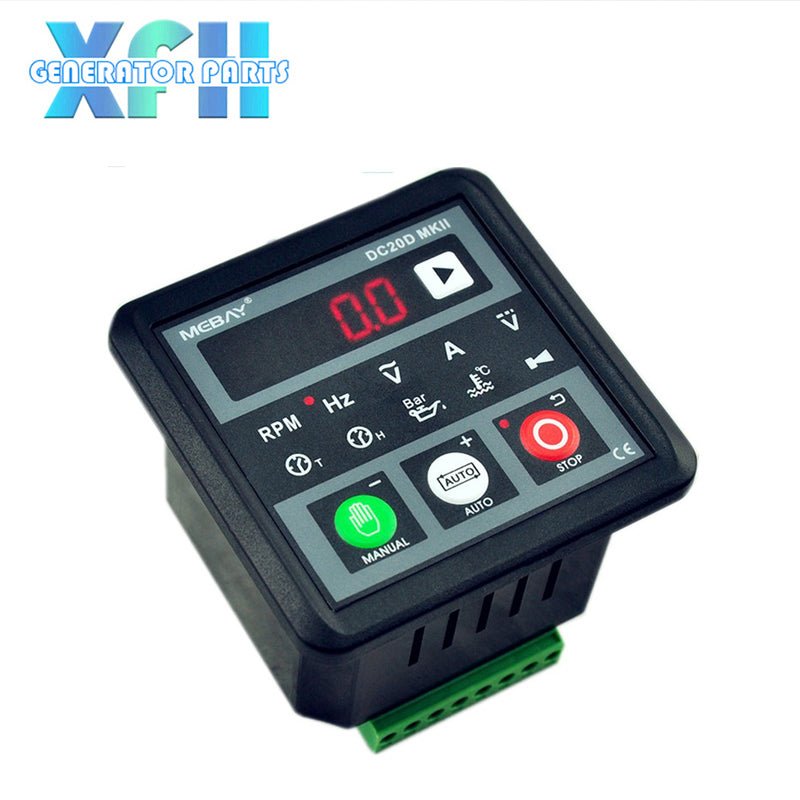

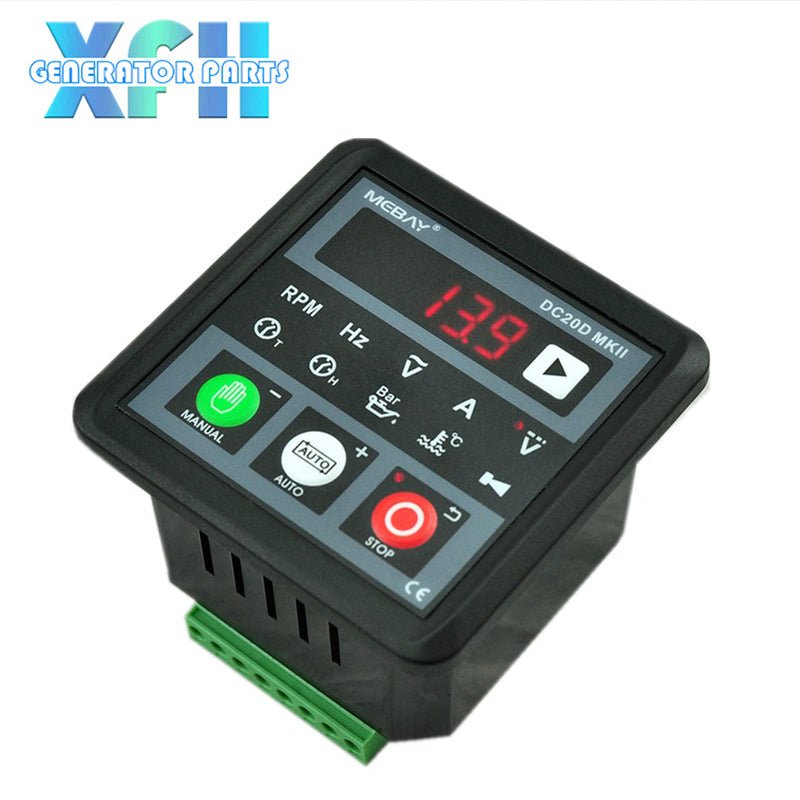

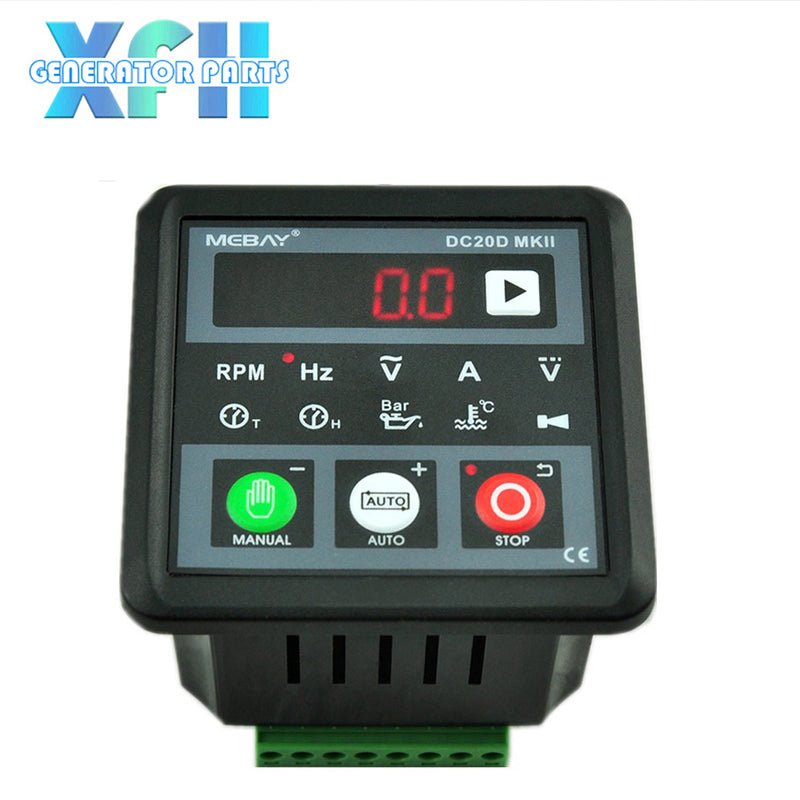

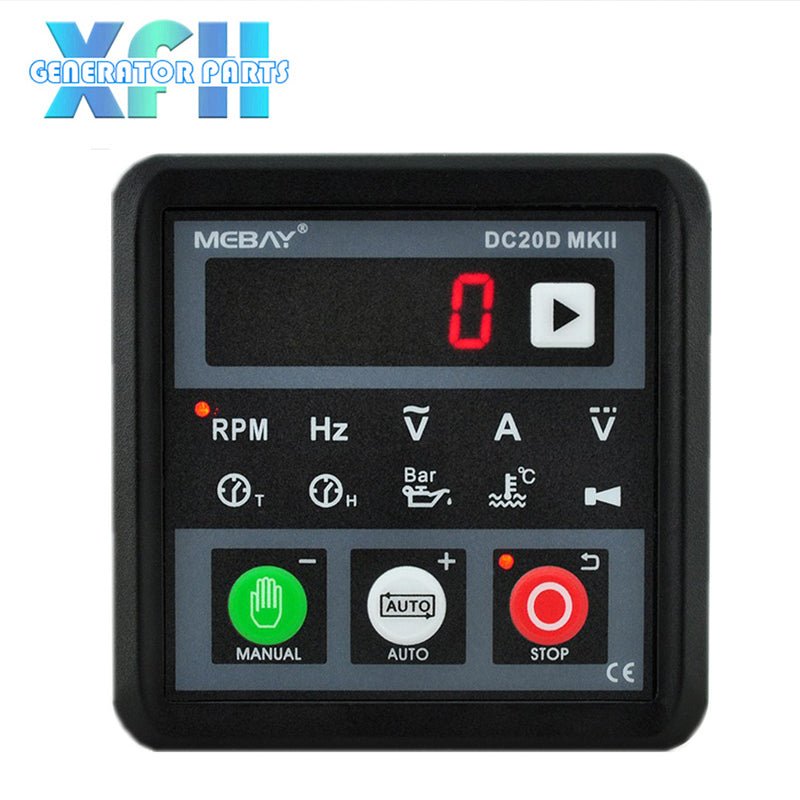

Mebay Brushless Generator Auto Intelligent Control Module Controller DC20D MKII

DC20D MKII is one module used for Diesel/gasoline Generator, It's an upgraded product of DC20D.It is with the functions of Auto Star/Stop, Protection and Alarm indication. DC Power and Running situation is indicated on the front panel.

Main Features:

• Micro-computer Control
• Man/Auto Start/Stop
• 5 Units LED tube Display
• LED and Fault Alarm Code Indication
• Two Group of programmed Relay output
• Application for various kinds of Engine by self-setting
• With RS485 communication port

Control

• Manual Start/Stop
• Auto Start/Stop
• Preheat Control
• Auto idle control
• Choke control
• S.T control

Parameters Display

• Engine RPM
• Generator Frequency Hz
• Generator Phase voltage L-N
• Generator current A
• Engine battery voltage
• Running time
• Accumulation time
• Engine water temperature
• Engine oil pressure

Protection

• Emergency Stop
• Over frequency stop
• Under frequency stop
• Over voltage stop
• Under voltage stop
• Over current stop
• Low Oil Pressure Stop
• High water temperature stop
• Oil pressure sensor Open
• Water temperature sensor Open
• Start Failure
• Stop Failure
• Low Water level stop
• Low Water level stop
• High Oil temperature stop
• RPM signal lost alarm
• Over speed stop
• Under speed stop
• Low Fuel Level warning
• Low Battery voltage warning

Specification

• DC Supply: DC 8～36 V.
• Power Consumption: MAX3W.
• Measuring Frequency:10～70 Hz.
• AC input: AC 50～380 V.
• Current measurement range:0-2000A.
• Speed sensor Frequency:30-9999Hz
• Relay output:
  • Fuel Output: MAX 5A.
  • Start Output: MAX 5A.
  • Configurable output1:MAX 2.5A.
  • Configurable output2:MAX 2.5A.
  • Excitation output: MAX 1A.
• Size:78mm * 78mm * 55mm.
• Panel cut-out:67mm * 67mm.
• Protection Level:IP54when waterproof rubber gasket is added between controller and its panel.
• Operation Temperature :-30℃～70℃.
• Storage Condition:-40℃～85℃.
• Weight:250g.
