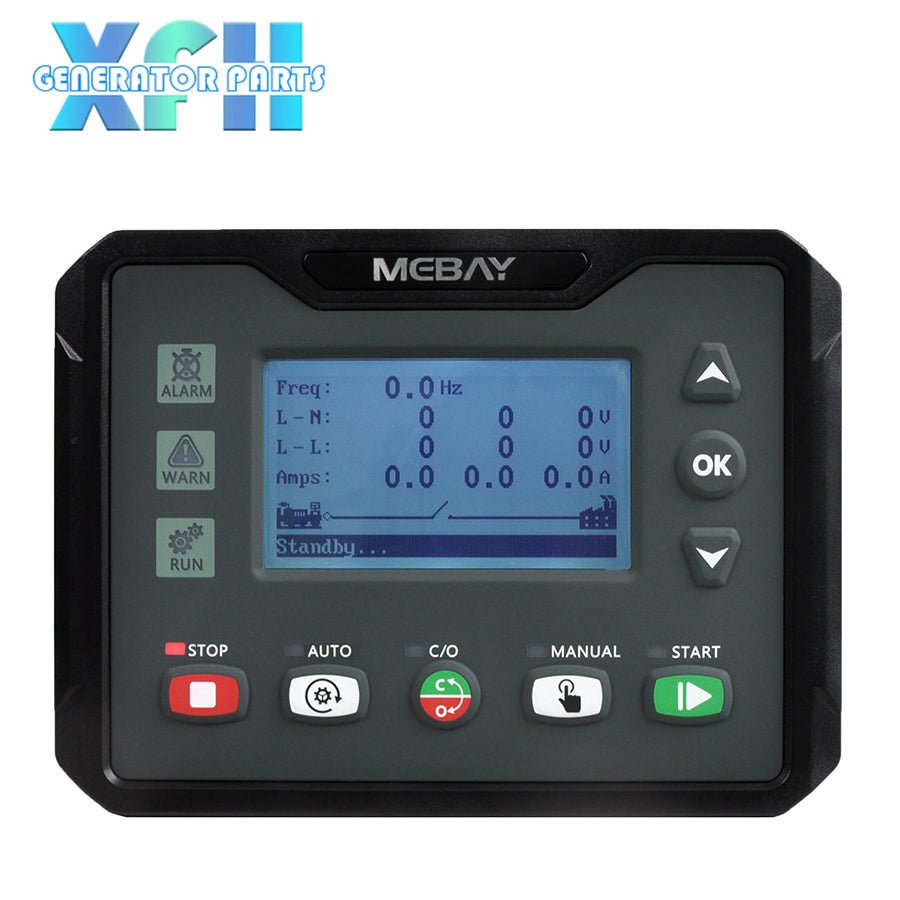

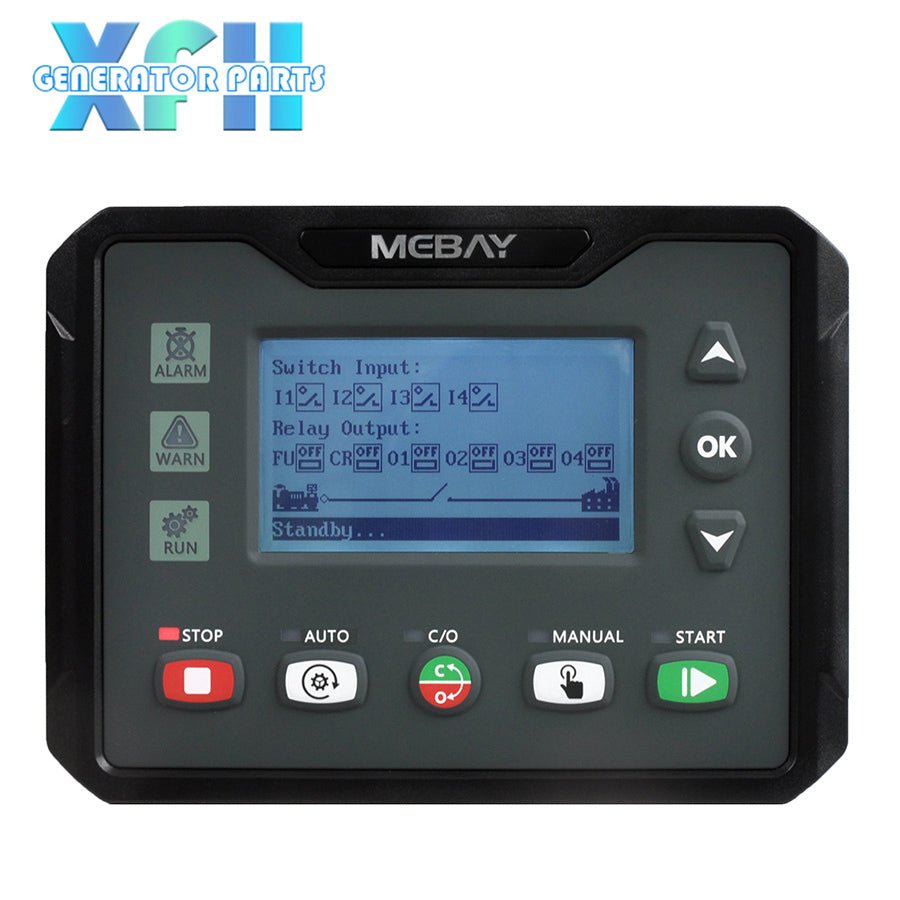

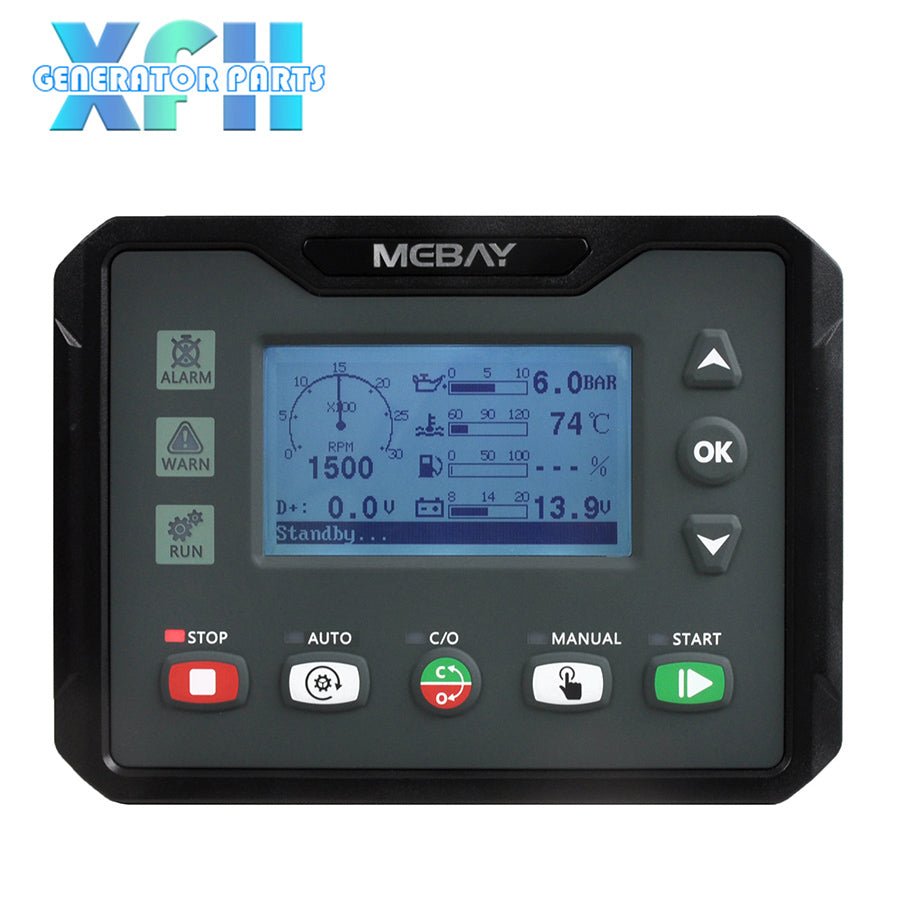

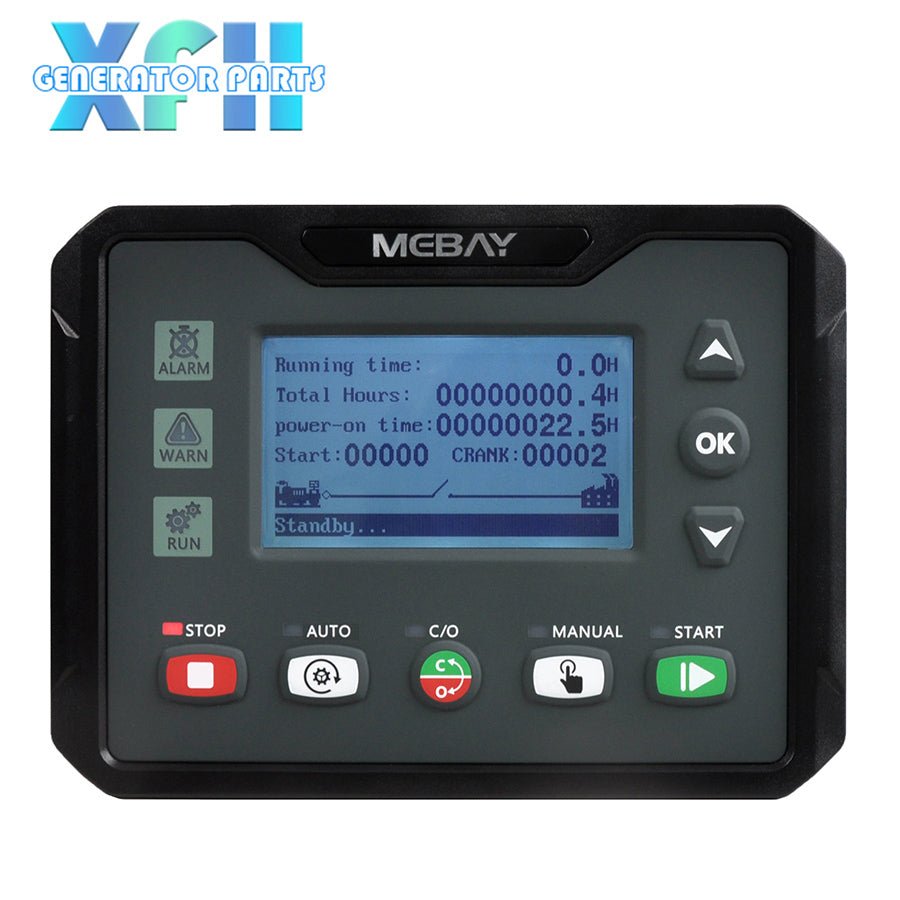

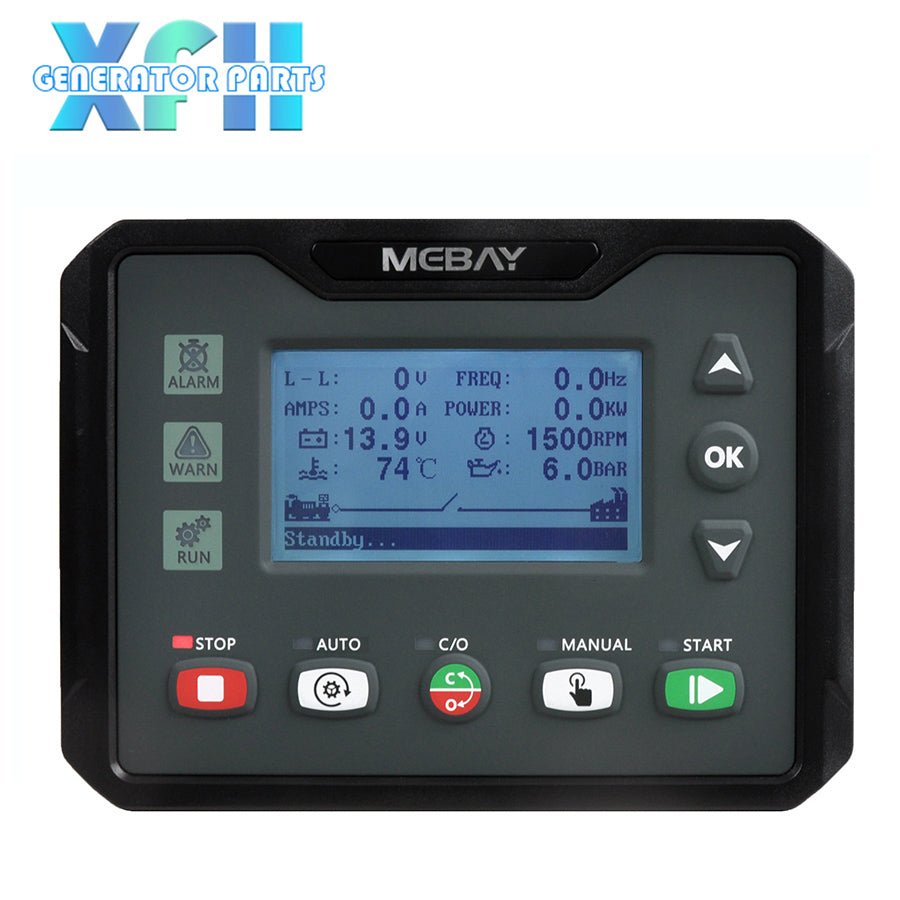

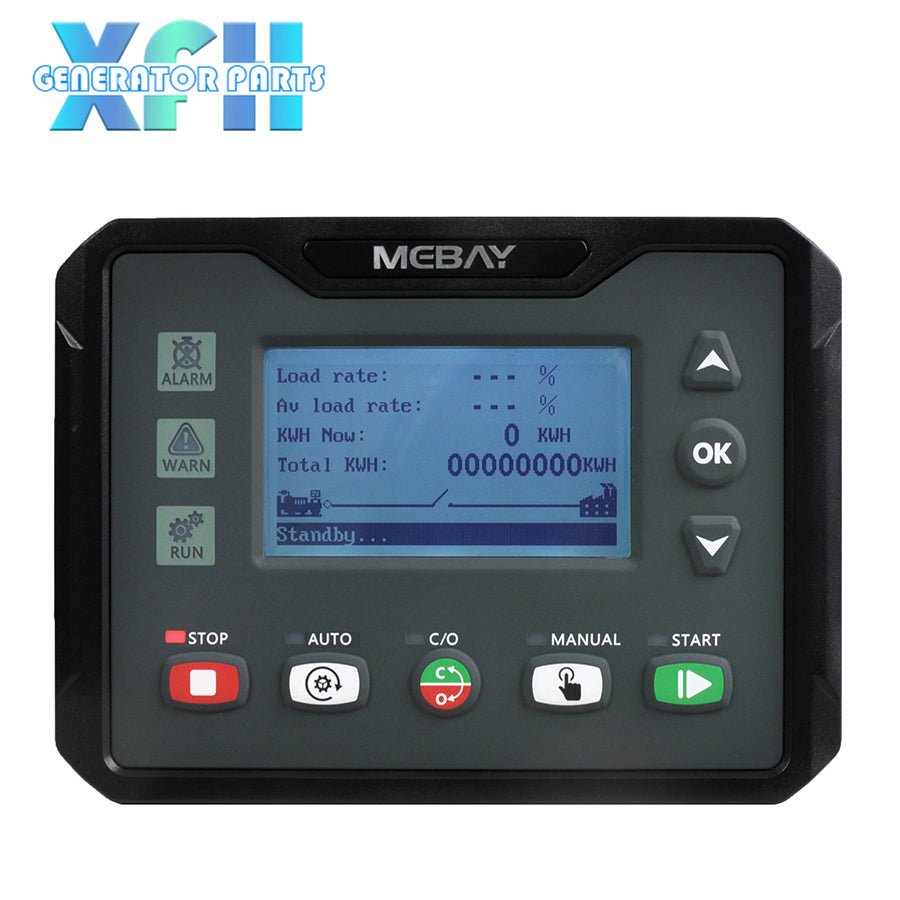

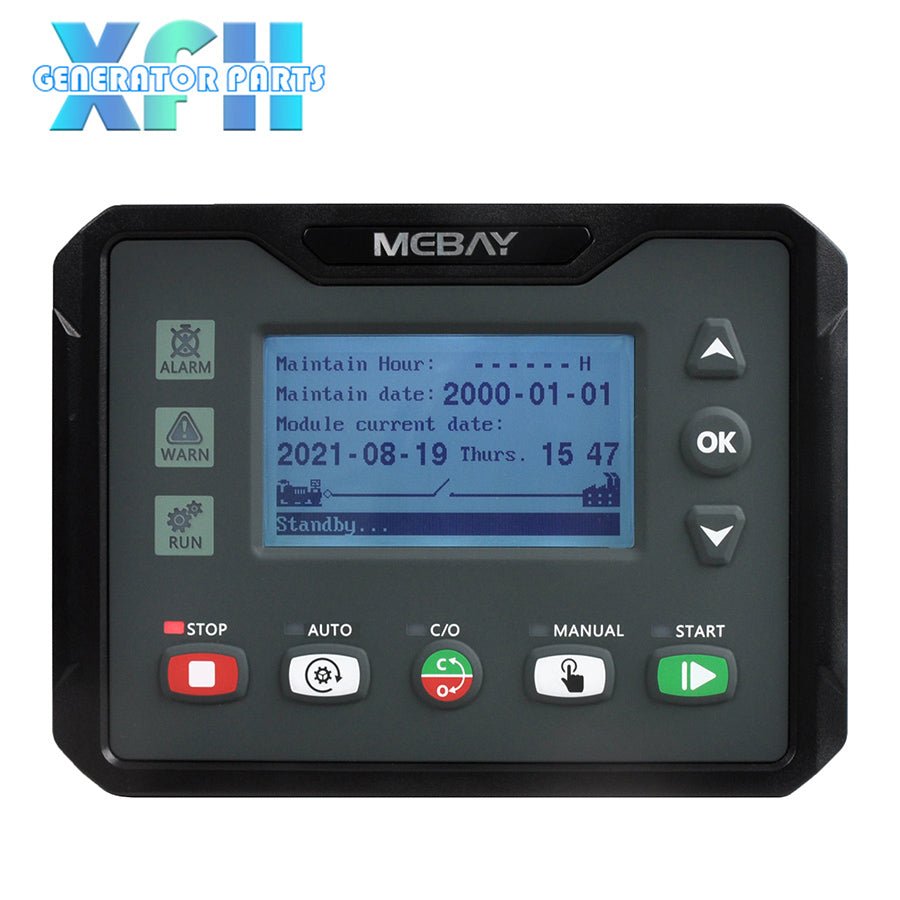

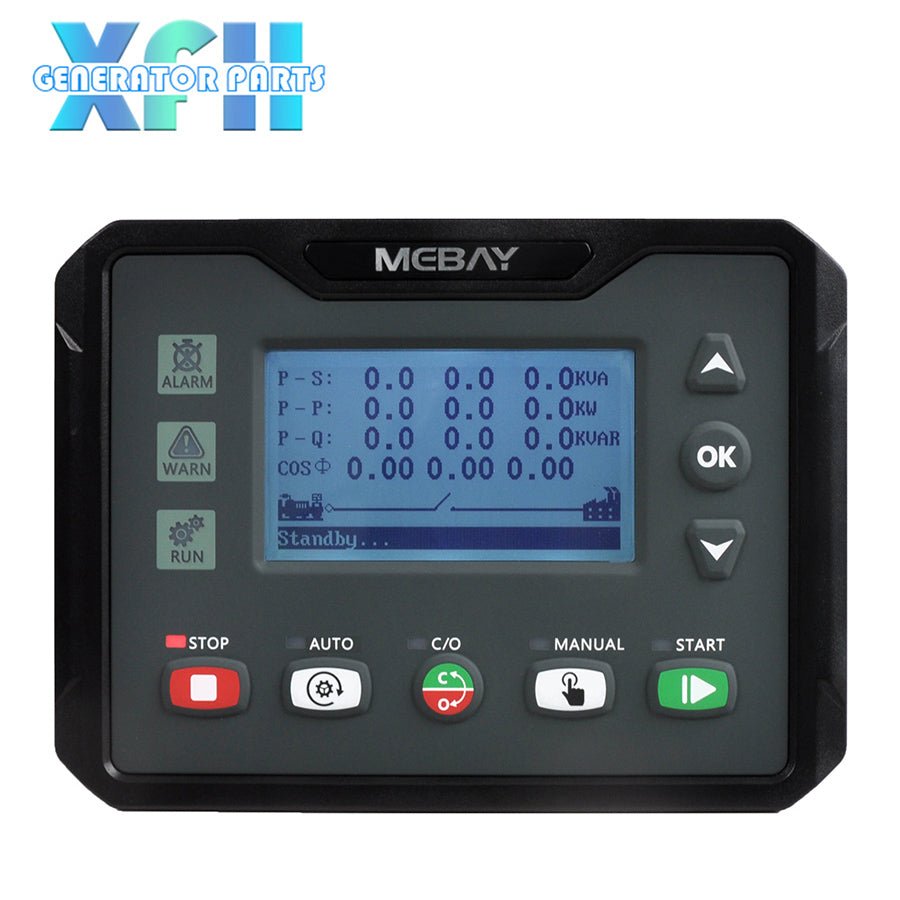

Mebay Auto ATS Control Generator Controller Genset Control Module Panel DC40S 2.8 Inches LCD Screen

Mebay Auto ATS Control Generator Controller Genset Control Module Panel DC40S 2.8 Inches LCD Screen

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$78.00
$78.00
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.

Item Features

1. 2.8" LCD screen. Power Interface can be changed to your company logo.

2. Dual core 32bit high performance single chip.

3. Acrylic material is adapted to protect the screen. Silicone panels.

4. Standard Equipped: USB Port.

5. RS485 Port-Realize remote control: DC40SR, DC42SR, DC40CR, DC42CR

6. CAN Port-for ECU engine: DC40C, DC40CR, DC42C, DC42CR

Item Advantages

1. Real time clock inside: preset time, operate and auto maintenance is available.

2. Maintenance countdown function, can set maintenance time or date.

3. The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time.

4. Totally 6 relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 20 functions.

5. With 4 switches input, up to 20 functions optional;

6. 3 sensor simulation input connectors

7. Battery charging control function, which can protect the battery according to battery voltage status.

8. Sensor can be self-defined by front face button or PC software.

9. Adapt to 3P4W, 1P2W, 2P3W (120V/240V, 50/60HZ)

10. Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.

11. Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
