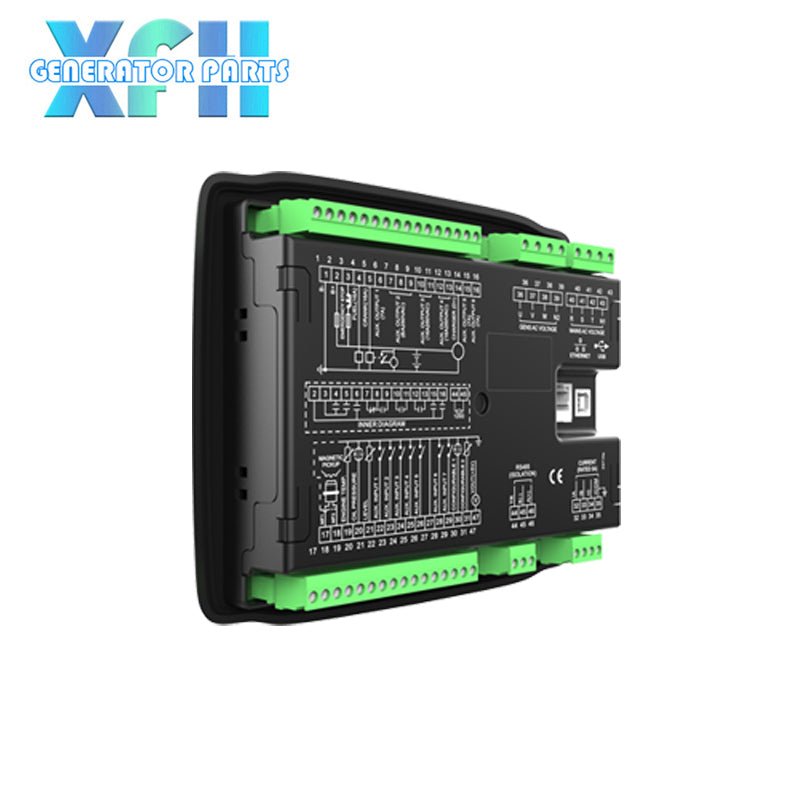

Smartgen HGM7120N Generator Set AMF ATS Controller Electronic Auto Start Control Module

Smartgen HGM7120N Generator Set AMF ATS Controller Electronic Auto Start Control Module

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $230.00
Regular price Sale price $230.00
Sale Sold out
Shipping calculated at checkout.

HGM7110N/HGM7120N series power station automation controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single diesel unit to achieve remote start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English and etc.), and it is reliable and easy to use.

HGM7110N/HGM7120N series power station automation controllers adopt 32-bit micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. Almost parameters can be configured from front panel of controller, and all parameters can be adjusted through PC software via USB/RS485 port and monitored through PC software via RS485. It can be widely used in all types of genset control automation system with compact structure, simple connections and high reliability.



HGM7110N: ASM (Automatic Start Module),it controls generator to start/stop by remote signal;

HGM7120N: AMF (Auto Mains Failure), updates based on HGM7110N, especially suit for automatic system composed by generator and mains.



Specification of Smartgen HGM7120N Generator Set AMF ATS Controller Electronic Auto Start Control Module:

Function Item Parameter
Display LCD(132*64)
Operation Panel Silicon Rubber
Language Chinese & English & Others
Digital Input 7
Relay Output 8
Analogue Input 5
AMF *
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Voltage (15~360)V(ph-N)
Alternator Frequency 50/60Hz
kW/Amp Detecting & Display *
Monitor Interface RS485/USB/Ethernet interface
Programmable Interface RS485/USB/Ethernet interface
RTC & Event Log *
Scheduled Start Genset *
Maintenance *
DC Supply  DC(8~35)V
Case Dimensions(mm) 209*166*45
Panel Cutout(mm) 186*141
 Operating Temp.  (-25~+70)℃
