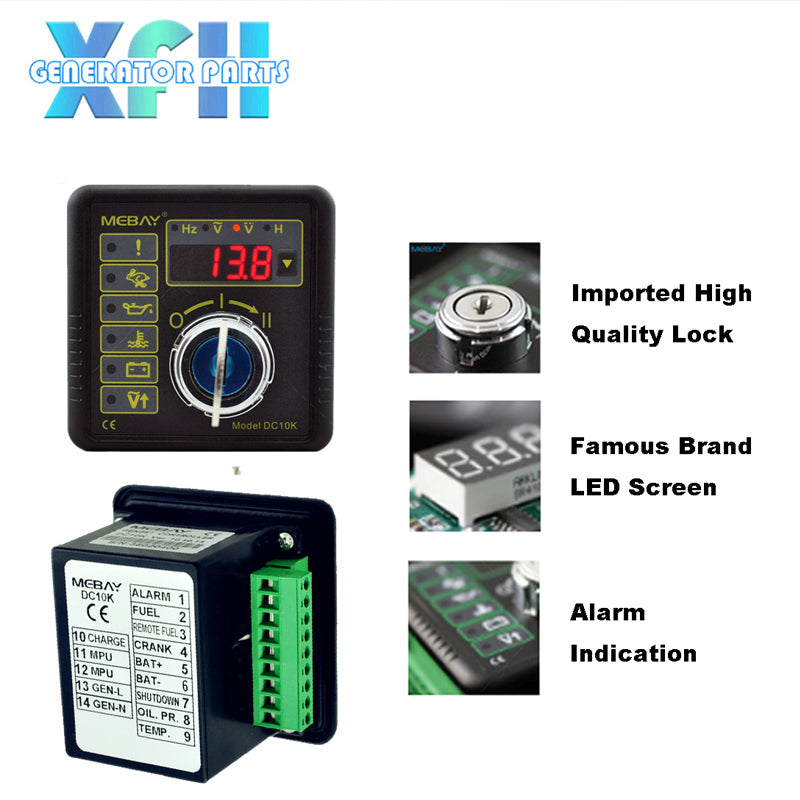

*32 units Micro-procession technology is used. The 4 digital LED display can switch automatically or manually.
*The starting key is very durable for cars.
*It has parameter setting function, and can set parameters through computer connection.
*It has a variety of alarm protection functions.
*The standard waterproof ring is equipped with splash proof function after installation.
*Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
|
The parameter display
|
||||
|
Generator voltage
|
Generator frequency
|
Engine battery voltage
|
Cumulative running time of the unit
|
|
|
Alarm protection
|
Speeding
|
Overclocking
|
Low oil pressure
|
|
|
High water temperature
|
External instant parking alarm
|
Power generation overvoltage
|
Charging failure warning
|
|
|
Specification:
|
|||||
|
Item Type
|
Generator Controller
|
Power supply:
|
8-33VDC Power
|
consumption:
|
MAX 2W Alternator
|
|
Voltage input:
|
15-300VAC, 50/60H Speed
|
Speed inpuinput:
|
Freq 300Hz-10kH
|
Fuel output
|
MAX 16
|
|
Motor output
|
MAX 10
|
Excitation Output
|
MAX 80m
|
Alarm output
|
MAX 16
|
|
Operating temperature
|
-30-75℃
|
Storage temperature:
|
-40-85℃
|
Dimensions
|
78 * 78 * 72mm
|
|
Hole Size: Approx
|
67 * 67mm
|
Package List:
|
1 * Controller 1 * Key 1 * Interface wiring
|
Weight
|
280g
|
