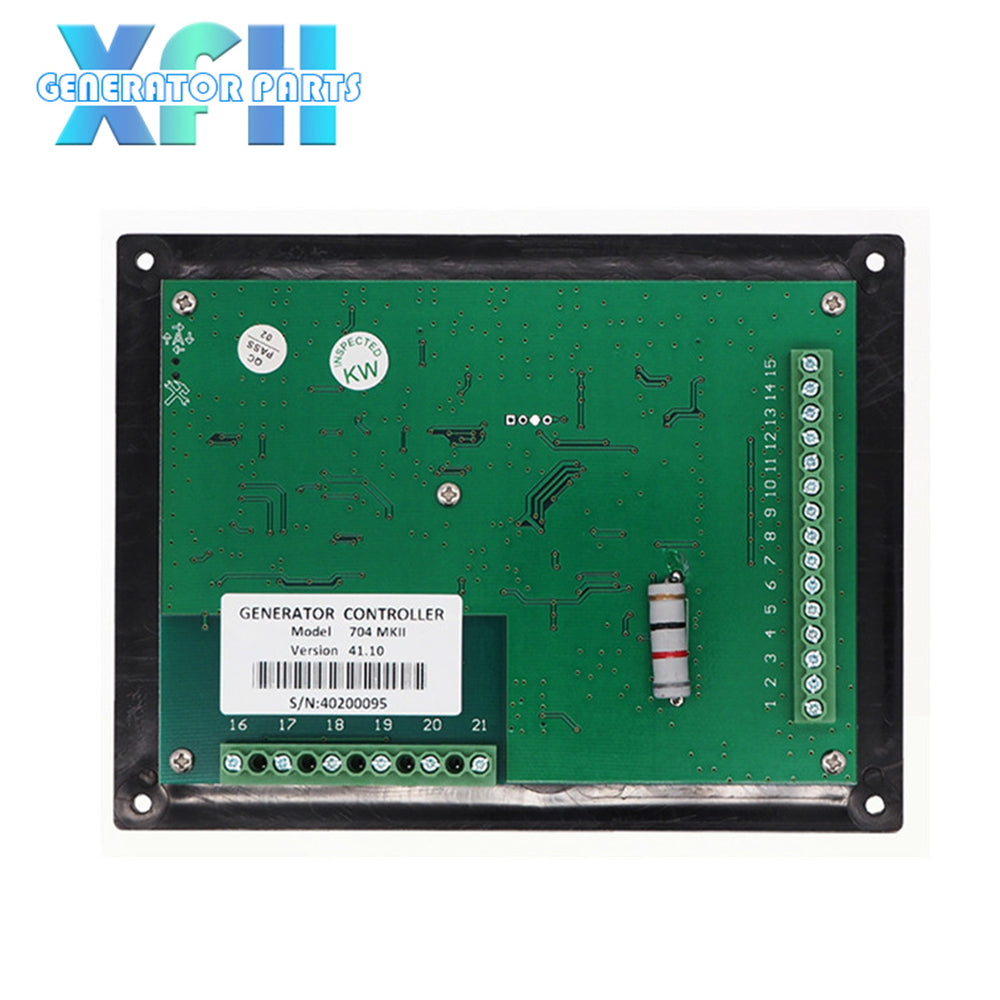

DSE704 Generator Controller Control Panel Dse704 Replacement

DSE704 Generator Controller Control Panel Dse704 Replacement

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Normal fiyat $34.29
Normal fiyat İndirimli fiyat $34.29
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.


DC Supply:

8 Volts to 35 Volts DC Continuous.

Cranking Dropouts:

Able to survive 0 Volts for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 Volts.

This is achieved without the need for internal batteries.

Max. Current:

Operating 50mA

Standby 10mA

Alternator Input Range:

75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%)

Mains Input Voltage:

15 - 277 Volts (ph-N) AC (+20%)

Alternator Input Frequency:

50 - 60 Hz at rated engine speed

(Minimum: 75V AC Ph-N)

(Crank Disconnect from 15V Ph-N @ 20Hz)

Overspeed +14% (+24% overshoot)

Underspeed -20%

Mains Frequency:

50 - 60 Hz

Start Output:

1.2 Amp DC at supply voltage.

Fuel Output:

1.2 Amp DC at supply voltage.

Auxiliary Outputs:

1.2 Amp DC at supply voltage.

Dimensions:

125mm x 165mm x 28 mm

Charge Fail:

12 Volts = 8 Volts CF 24 Volts = 16 Volts CF

Operating Temperature Range:

-30°C to + 700C

Applicable Standards:

Compliant with BS EN 60950 Low Voltage Directive

Compliant with BS EN 50081-2: 1992 EMC Directive

Compliant with BS EN 61000-6-4: 2000 EMC Directive
