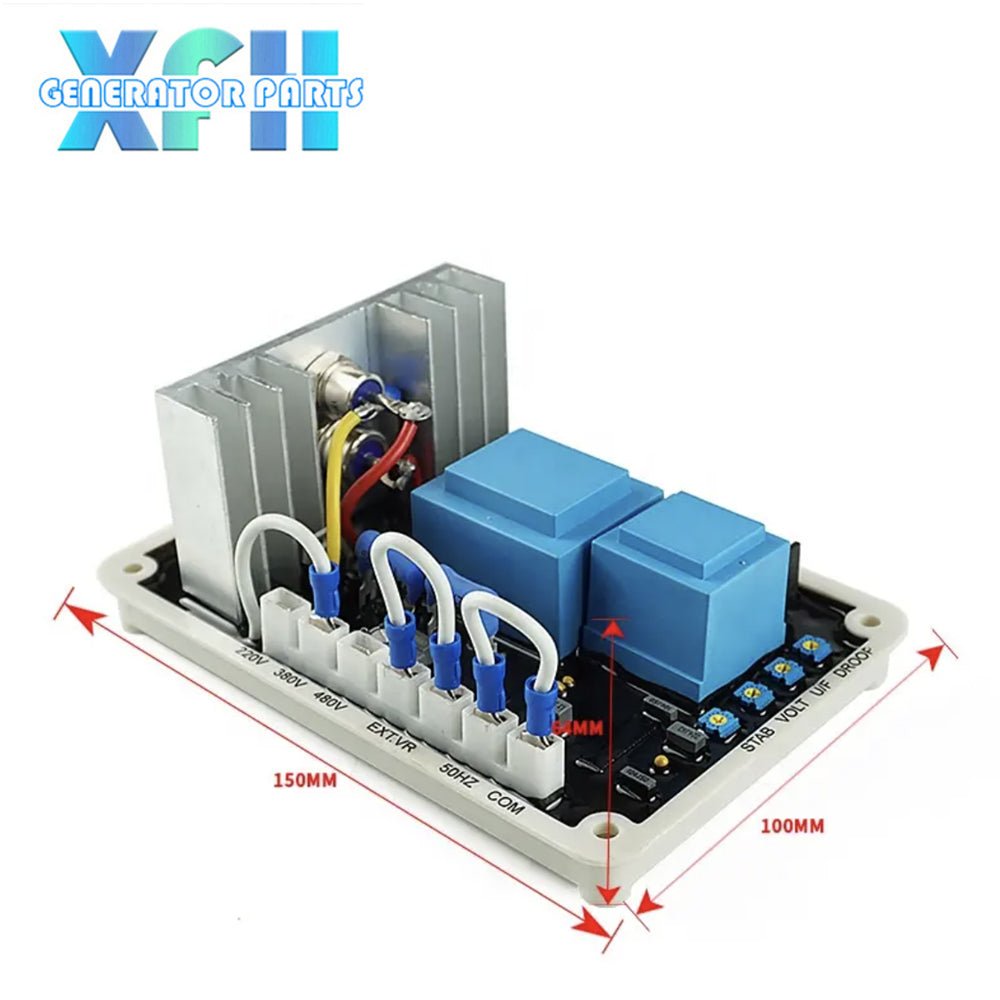

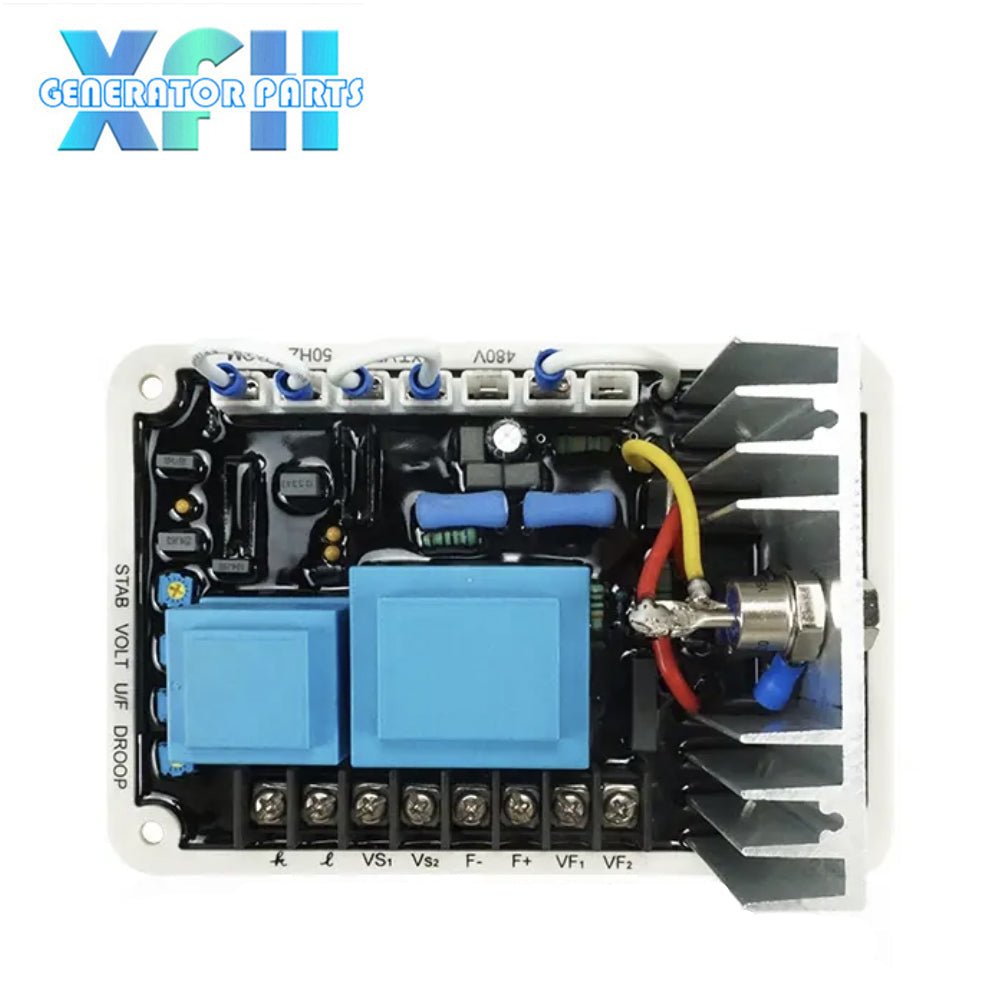

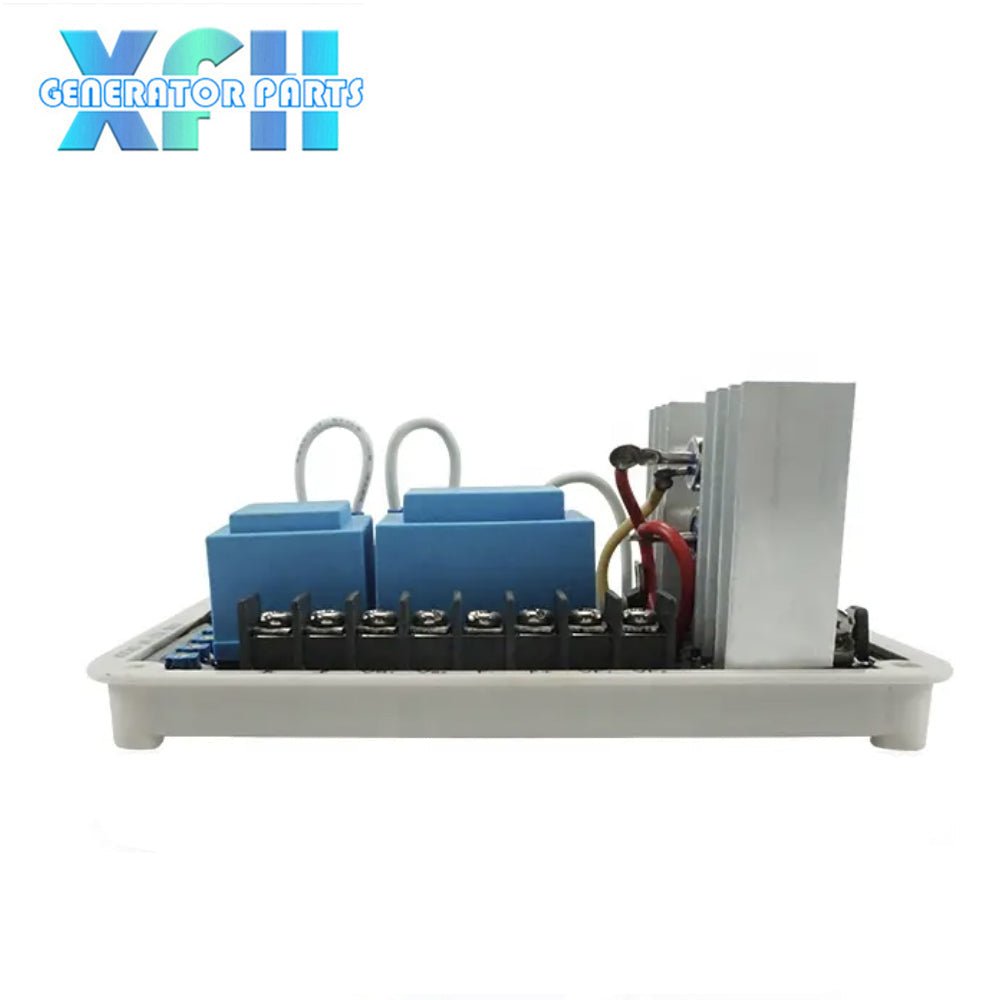

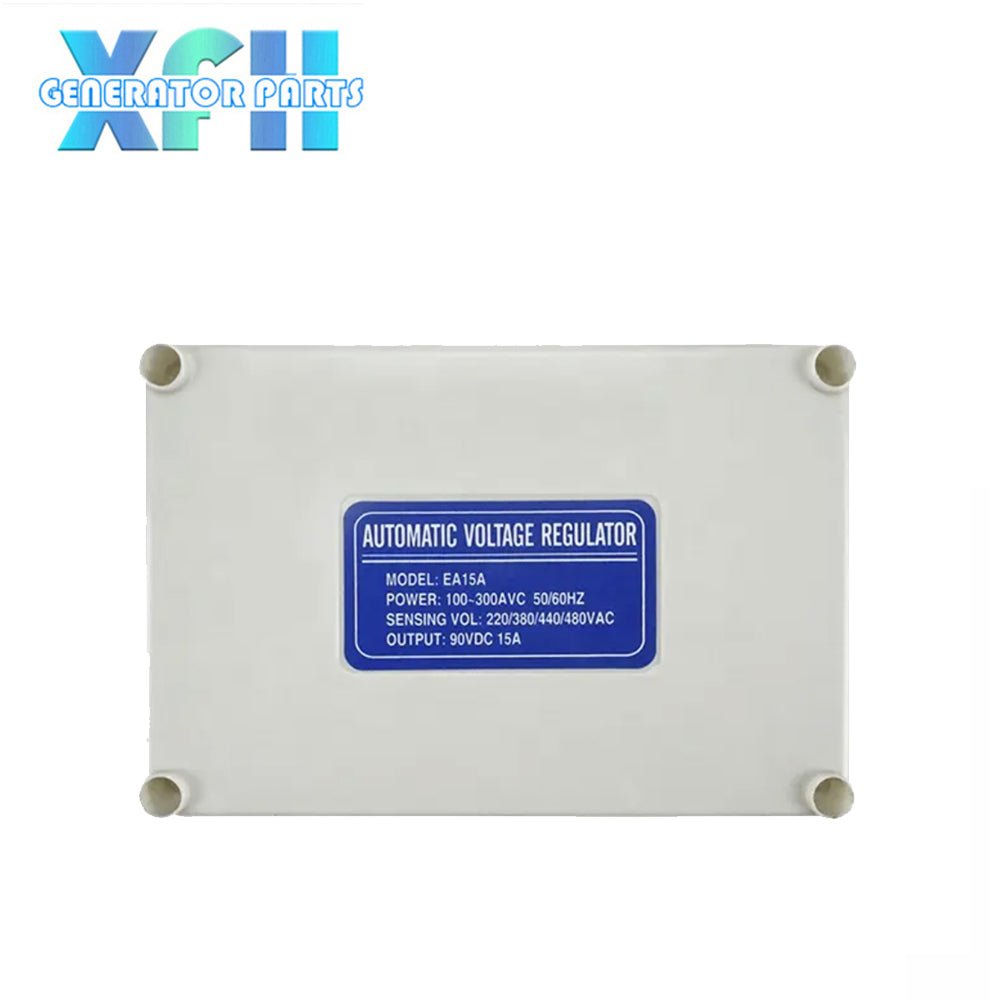

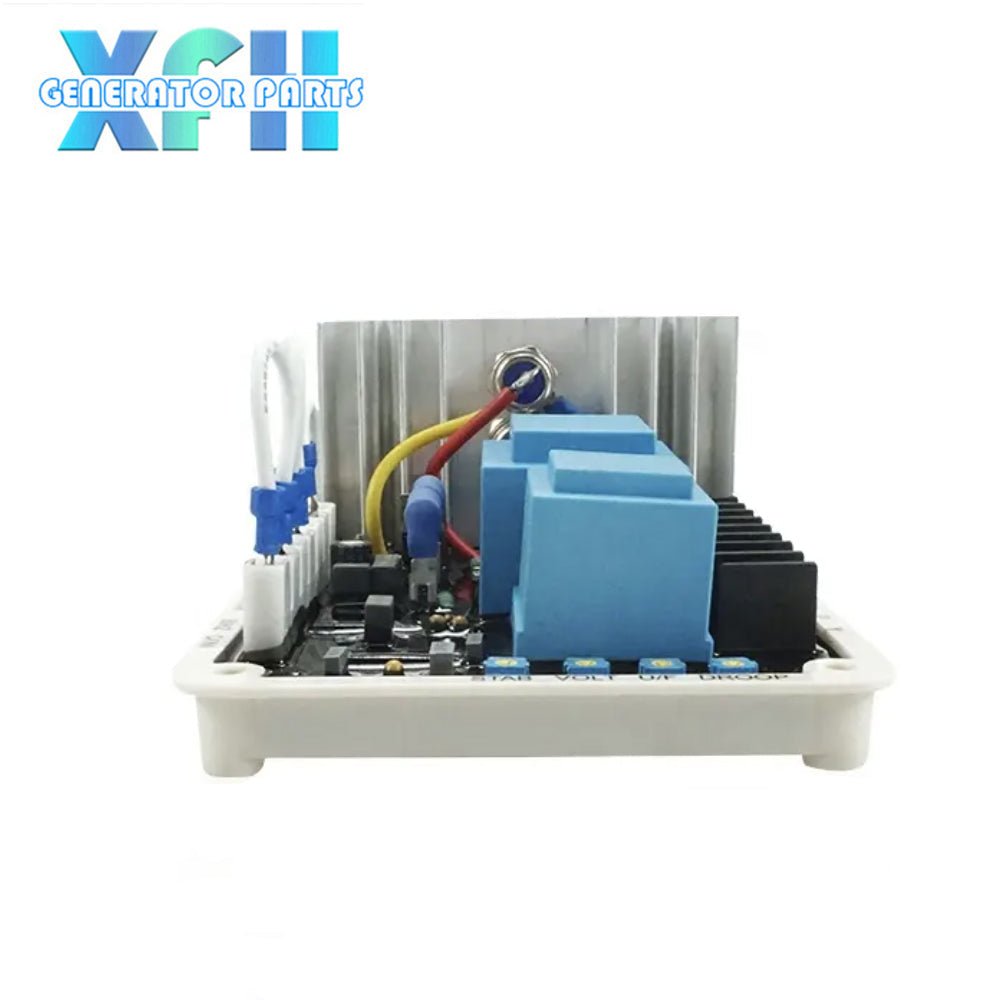

Brushless Generator Circuit Diagram AVR EA15A

Brushless Generator Circuit Diagram AVR EA15A

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Normal fiyat $69.00
Normal fiyat İndirimli fiyat $69.00
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.

Brushless Generator Circuit Diagram AVR EA15A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Product Name
EA15A
SENSING/POWER INPUT

Voltage
100-300 VAC, 1 phase 2 wire
MAGNETIC FIELD OUTPUT

Voltage
max 90VDC at 207VAC input
Current
continuous 15A
PRESSURE REGULATING ACCURACY
<+/-1%RMS with 4% engine governing
