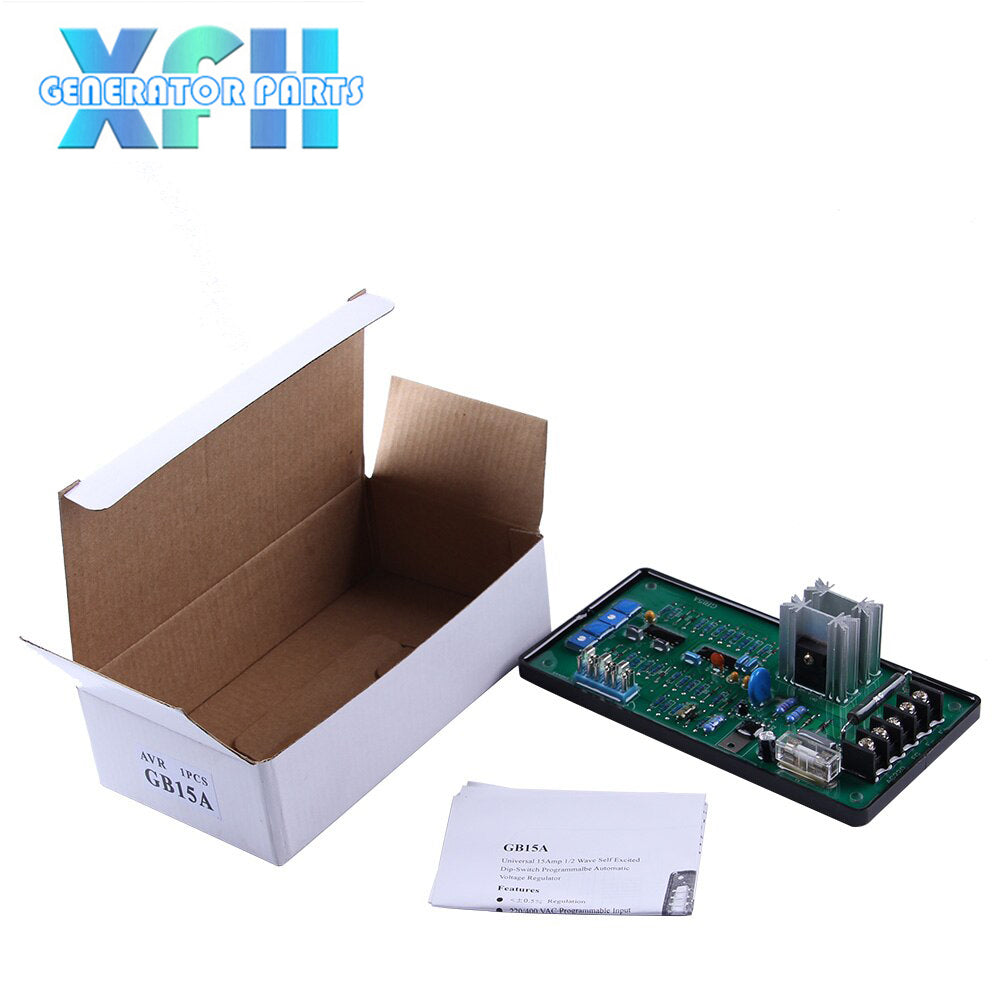

GB15A Universal 15Amp Wave Self Excited Dip Switch Programmable Automatic Voltage Regulator GB-15A

GB15A Universal 15Amp Wave Self Excited Dip Switch Programmable Automatic Voltage Regulator GB-15A

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$32.00
$32.00
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.
Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 15Amp Fuse

Voltage 18.0/400VAC , 1 phase 2 wire
Power Input voltage 180-240VAC , 1 phase 2 wire
Output voltage max 90 VDC at 240VAC input
Current Continuous 6A , intermittent 12A for 10secs
Resistance Min.10 ohm , Max 100ohm
Voltage Build-up residual voltage at avr terminal >5VAC
Voltage Regulation <±0.5% with 4% engine governing
Operating Temperature (-40°C to +65°C
Storage Temperatue (-40°C to +85°C
External Volts Adjutment ±7% with 1k ohm 1 watt trimmer
EMI Suppression Internal electromagnetic interference filtering
Unit Power Dissipation Max.8 watt
Under Frequency Protection 60Hz system presets knee point at 57Hz
  50Hz system presets knee point at 47Hz
Dimensions

157mmL*117mmW*70mmH
