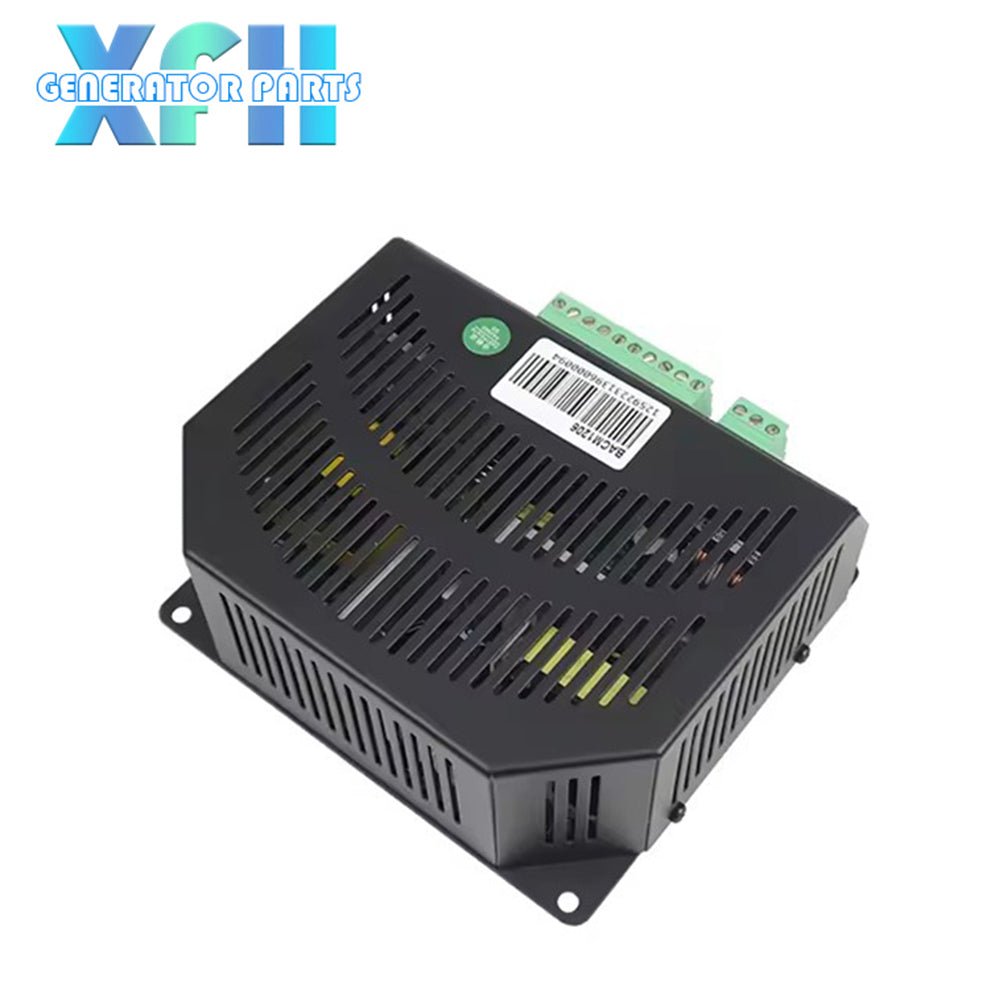

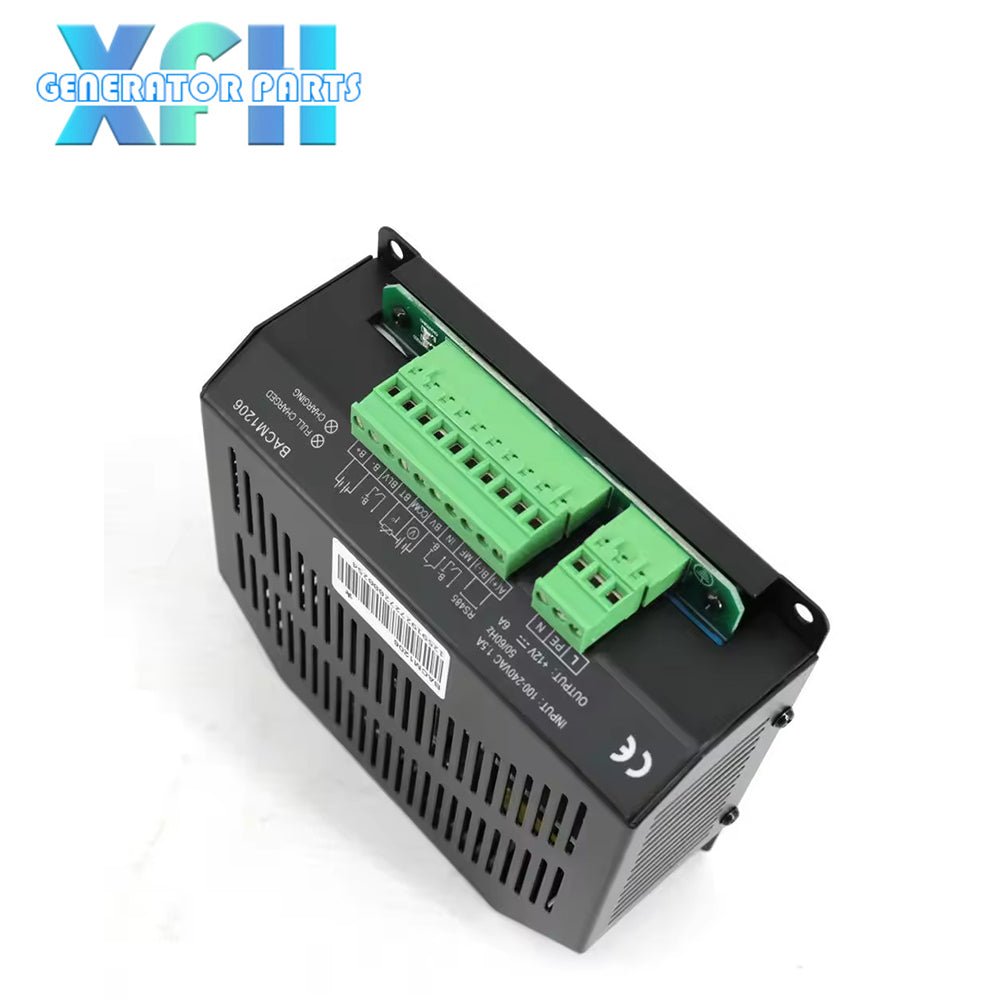

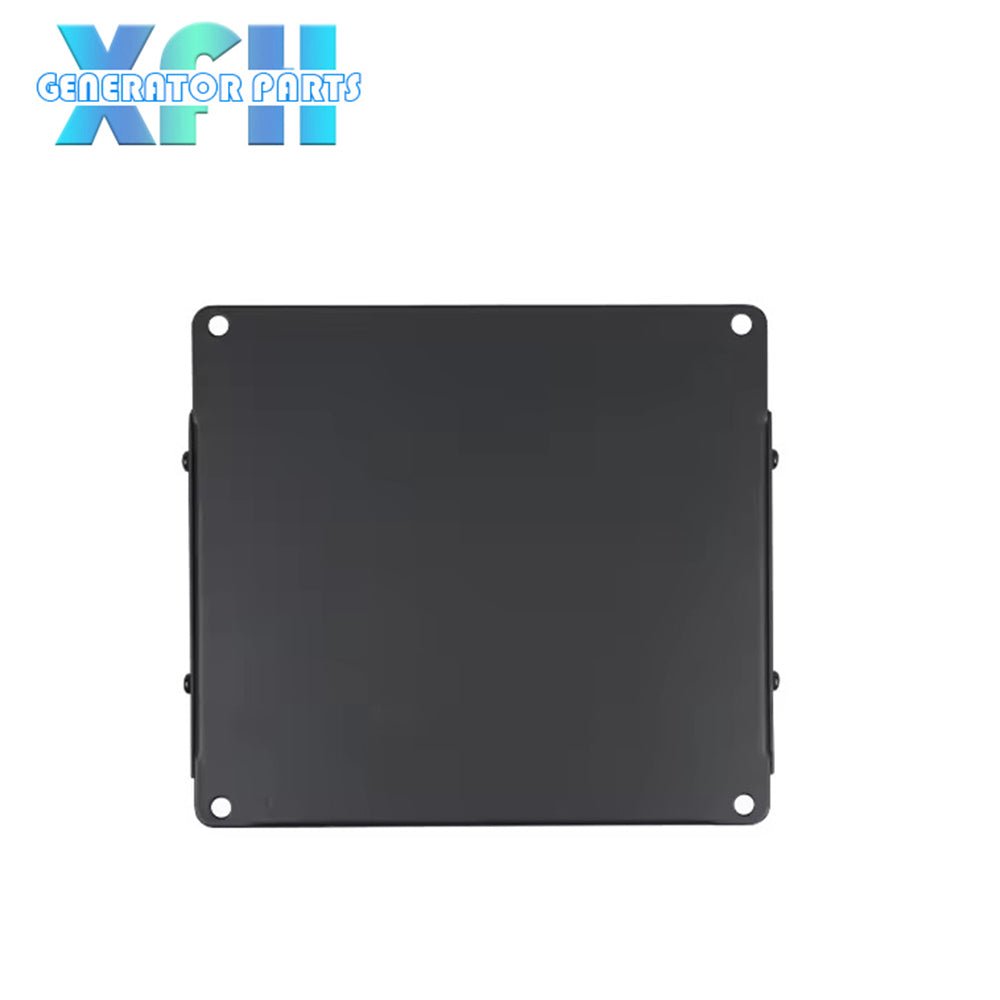

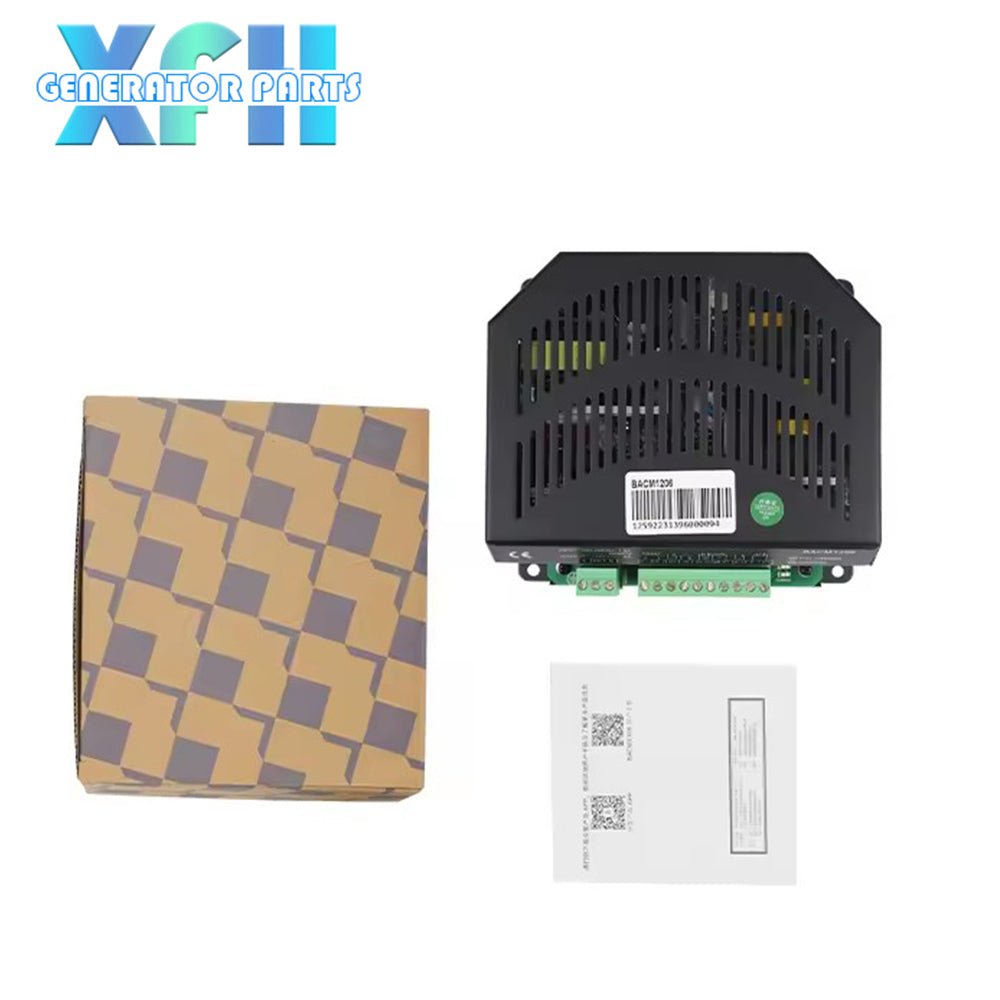

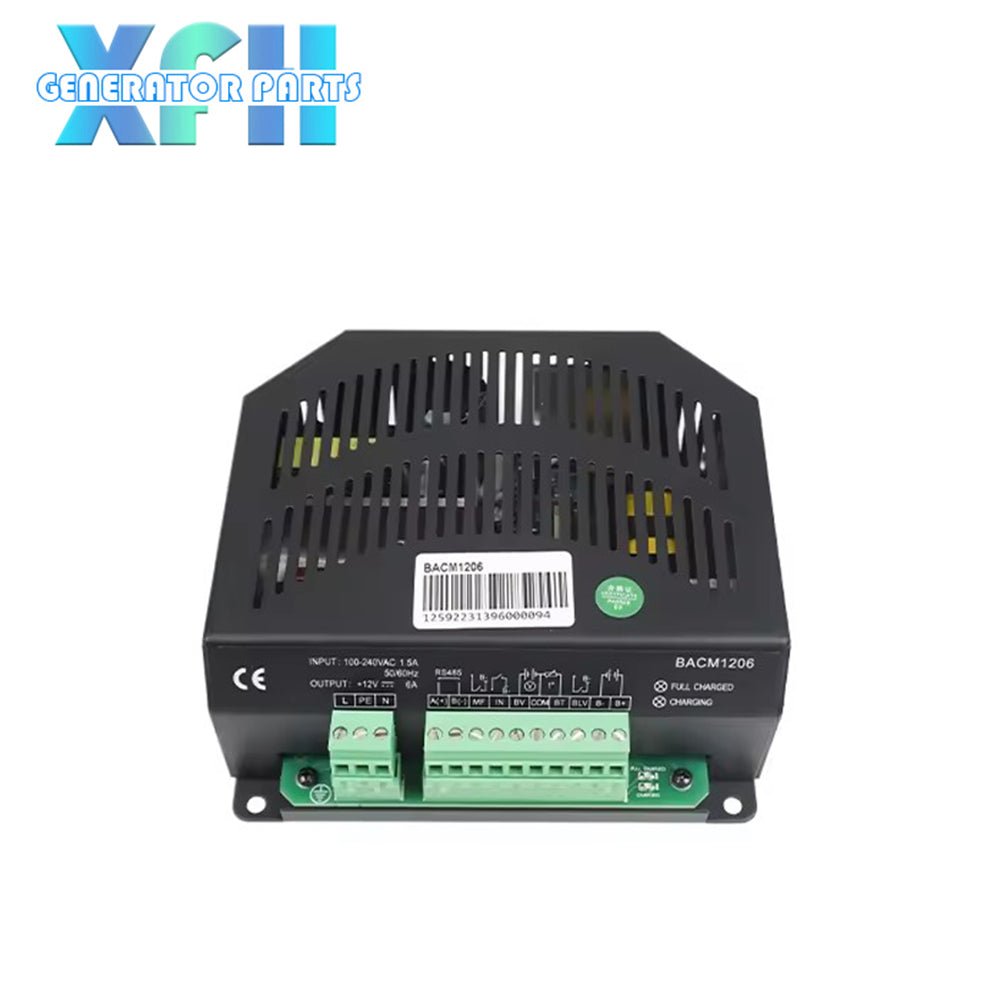

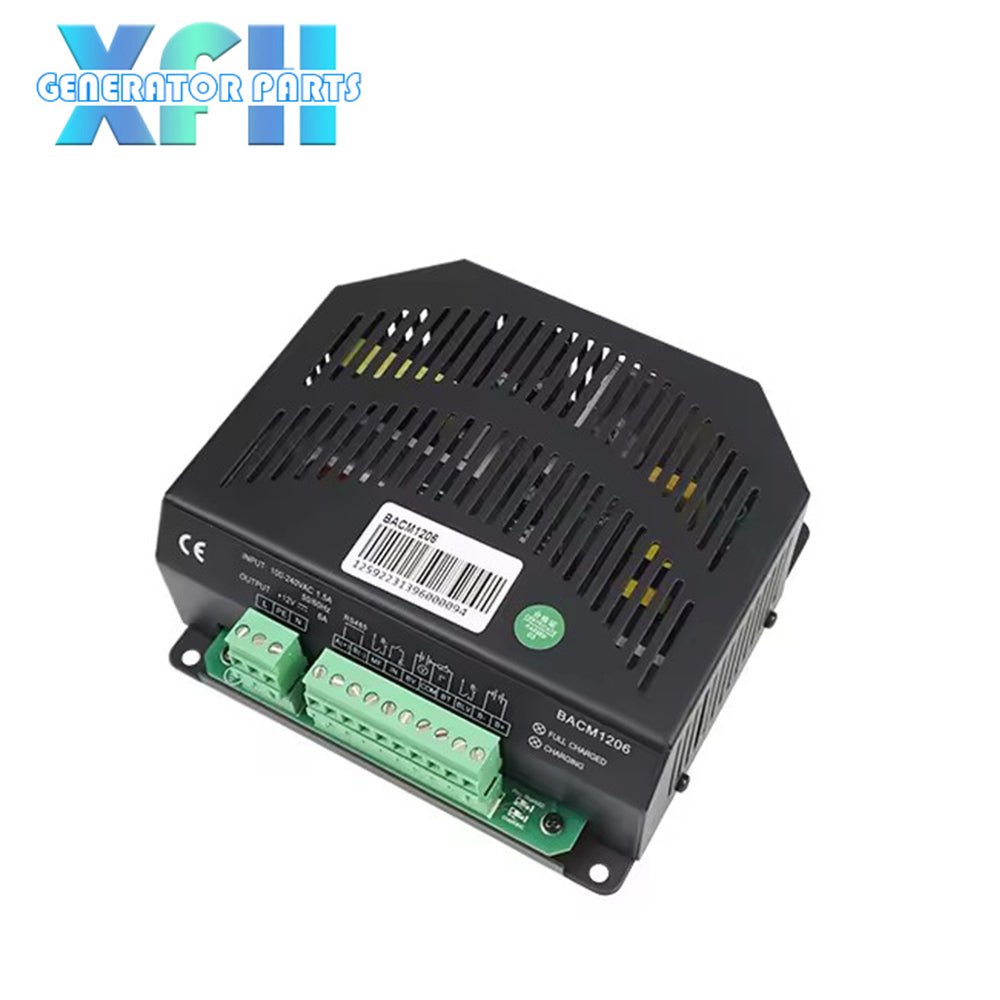

Smartgen BACM1206 Generator Genset Battery Charger BACM1206

BACMXX06 battery charger is intelligent and multi-function which is specially designed for meet the charging characteristics of the lead-acid engine starter batteries. BACMXX06 battery chargers are divided into 2 types according to the battery voltage: BACM2406 (suitable for 24V) and BACM1206 (suitable for 12V). Both their maximum charge current are 6A.

PERFORMANCE AND CHARACTERISTICS

1.Switch power supply structure, wide input AC voltage range, small size, light weight, high efficiency rate;

2.Users can select automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process are carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

3.Built-in PFC circuit can calibrate the power factor above 0.99;

4.Built-in current protective circuit for over current protection, short-circuit protection and reverse connection protection. The output will be recovery automatically after the failure is removed.

5.Battery voltage detection ports can detect the battery voltage in real time.

6.Battery low voltage output port; It will output low level immediately when the battery voltage has fallen below the set value.

7.Temperature sensor port allows for monitoring the battery temperature in real time and temperature compensation function which can prevent the battery temperature is too high effectively.

8.Mains failure port; It will output low level immediately when the AC input is interrupted.

9.485 communication port.

10.BACM2406 charger is suitable for 24V battery; rated current; 6A; BACM1206 charger is suitable for 12V battery; rated current; 6A.

11.LED display: Power indication (Green light) and charging indication (Red light).
