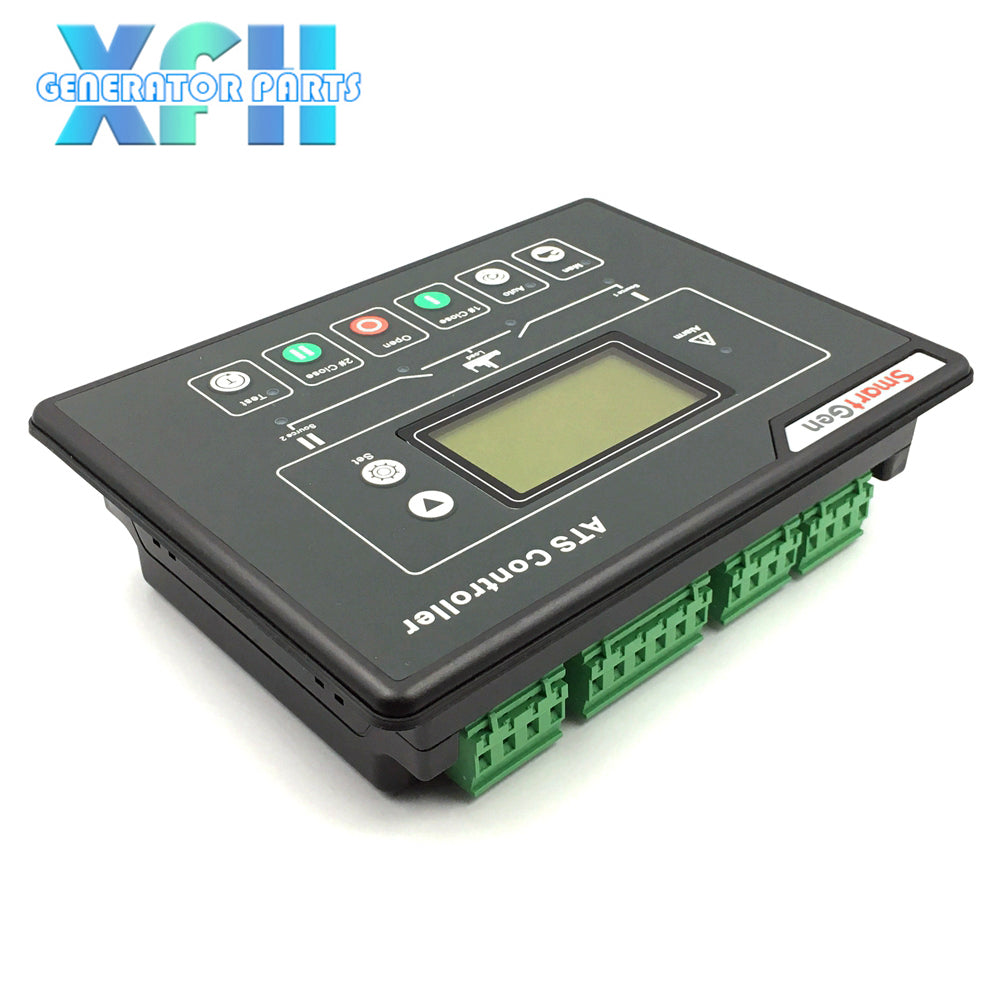

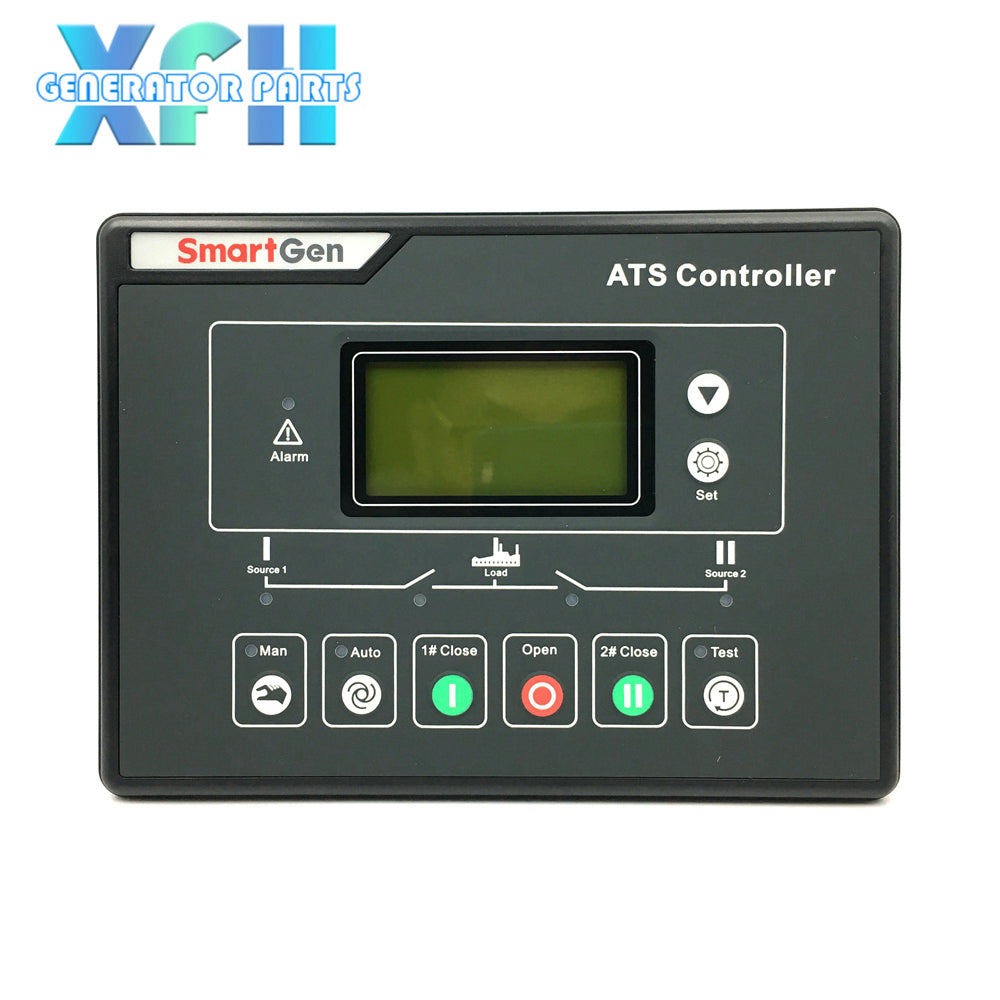

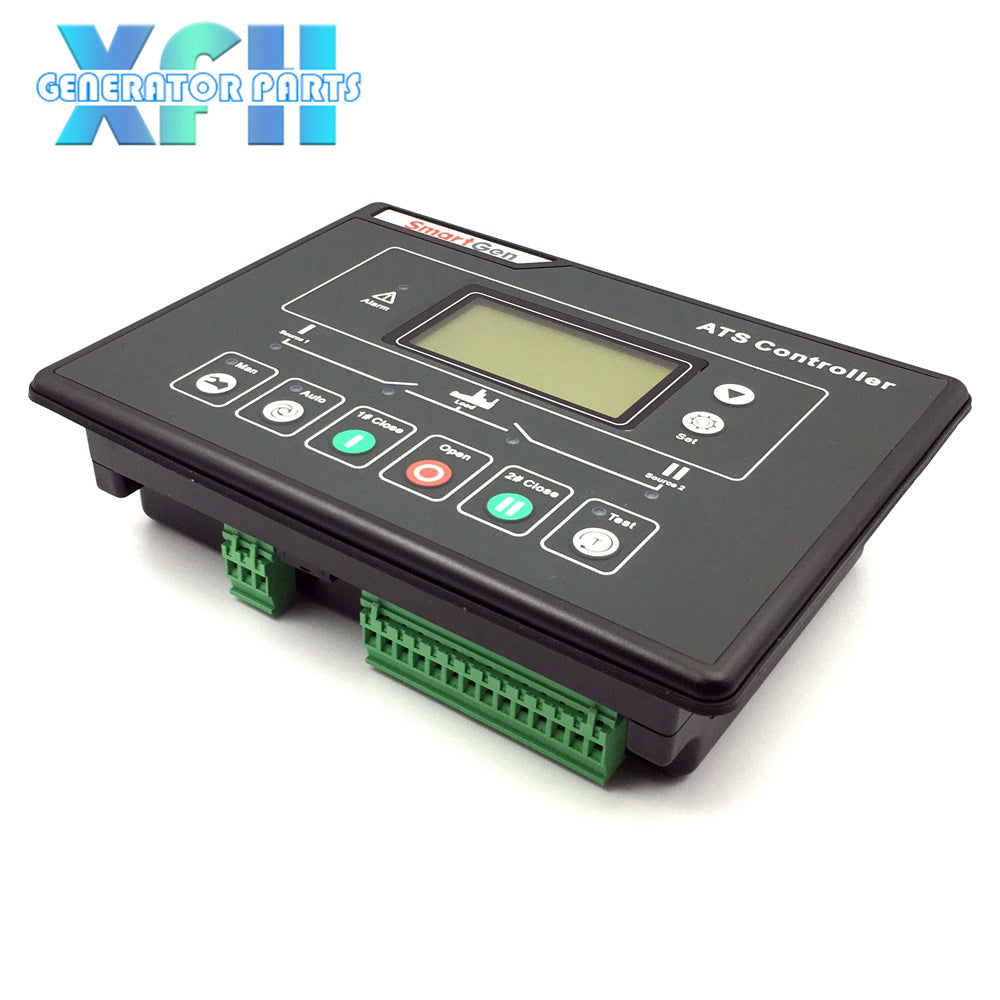

HAT600N HAT600NI SmartGen Original Genset ATS Controller HAT-600N HAT-600NI for Diesel Generator
HAT600N HAT600NI SmartGen Original Genset ATS Controller HAT-600N HAT-600NI for Diesel Generator
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Preço normal
$238.00
Preço normal
Preço promocional
$238.00
Preço unitário
por
Frete calculado no checkout.
Não foi possível carregar a disponibilidade de retirada.
HAT600N series ATS controller is intelligent dual-supply module with programmable function, automatic measurement, LCD display, and digital communication. It combines digital intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
HAT600N series ATS controller is made of microprocessor as its core, can accurately detect extended-spectrum 2-way-3-phase voltage and also make accurate judgment and output passive control switch under the abnormal voltage (over and under voltage, miss phase and over and under frequency). This controller has full consideration in various application of ATS (automatic transfer system) can be directly used for Intelligent ATS, Contactor ATS, Circuit Break ATS etc. It have compact structure, advanced circuits,
simple wiring and high reliability, be widely used in electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, electrical devices, automatic control and testing system etc.
|

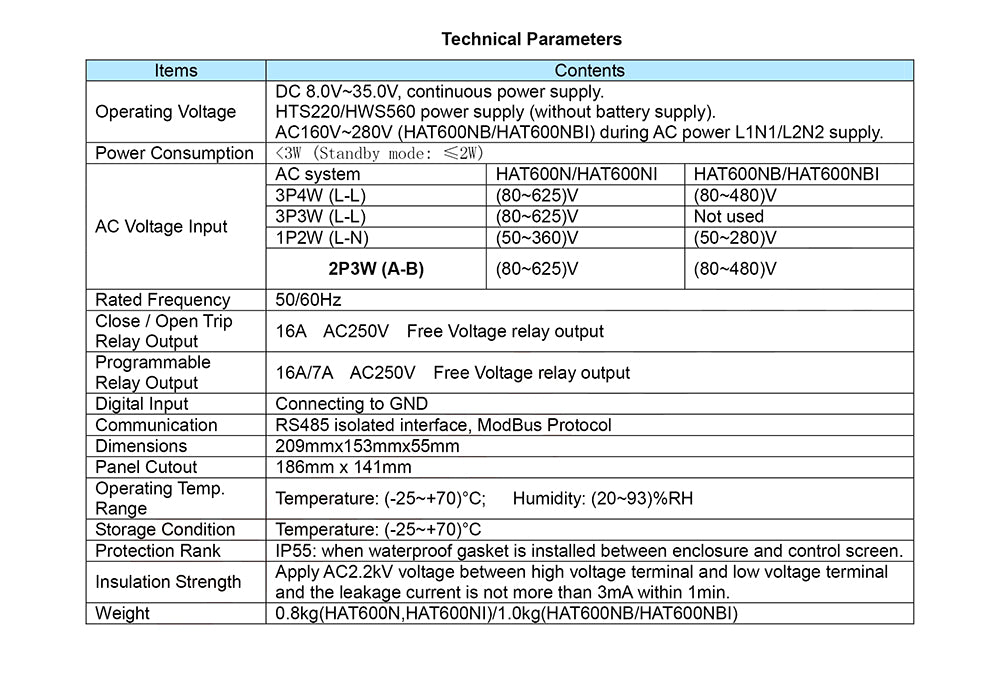

Function Item
|
Parameter
|
|
Display
|
LCD(128*64)
|
|
Language
|
Chinese/English
|
|
AC System
|
1P2W/2P3W/3P3W/3P4W
|
|
Alternator Voltage
|
(50-625)V(ph-N)
|
|
DC Supply
|
DC(8-35)V
|
|
Alternator Frequency
|
50/60HZ
|
|
Monitor Interface
|
RS485
|
|
Programmable Interface
|
LINK/RS485
|
|
Applicable Switch Type
|
All types
|
|
Case Dimensions(mm)
|
209*153*55
|
|
Panel Cutout(mm)
|
186*141
|
|
Operating Temp.
|
(-25-+70)℃
|
