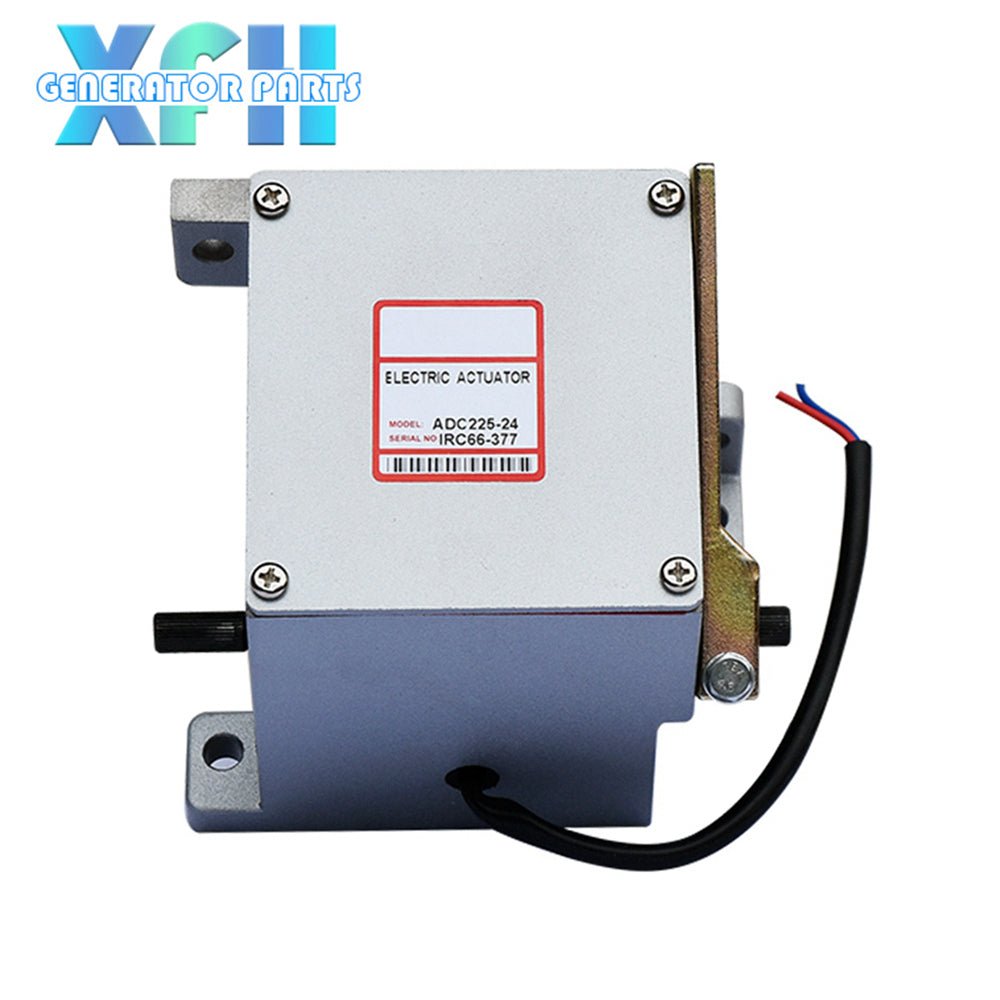

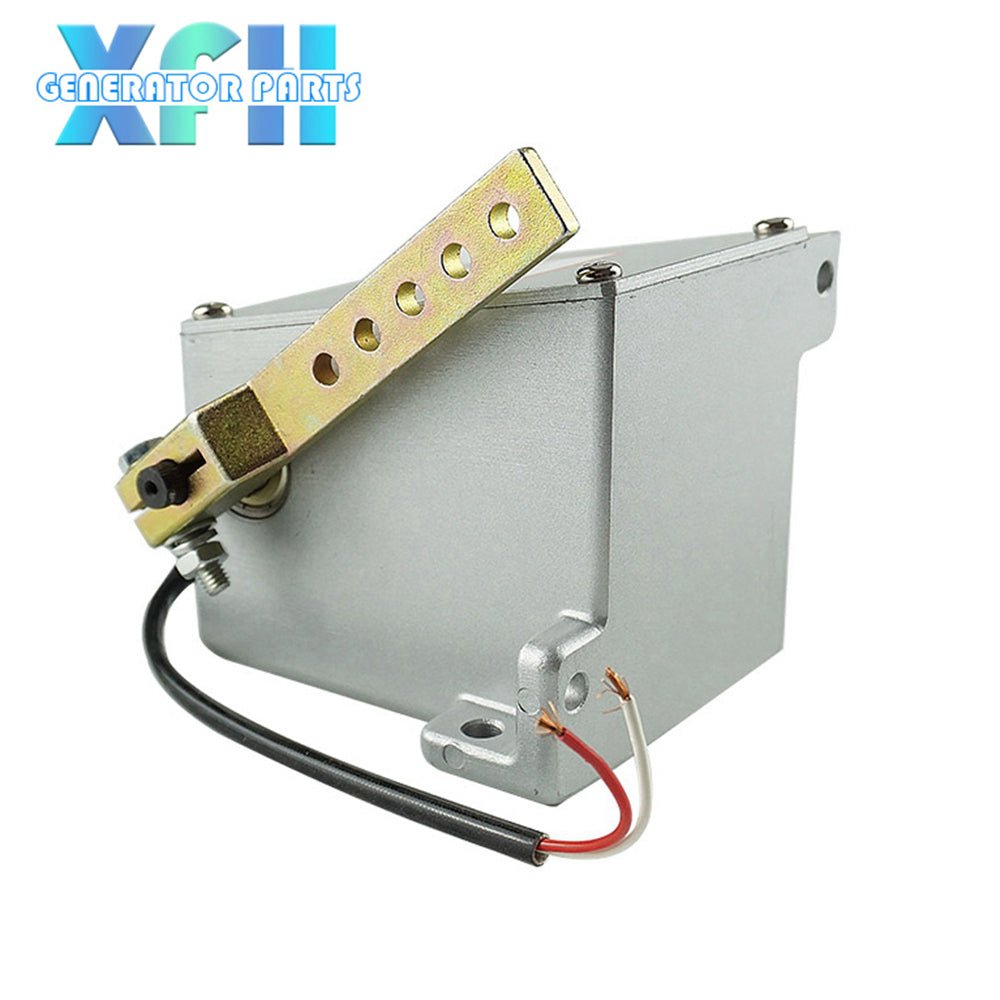

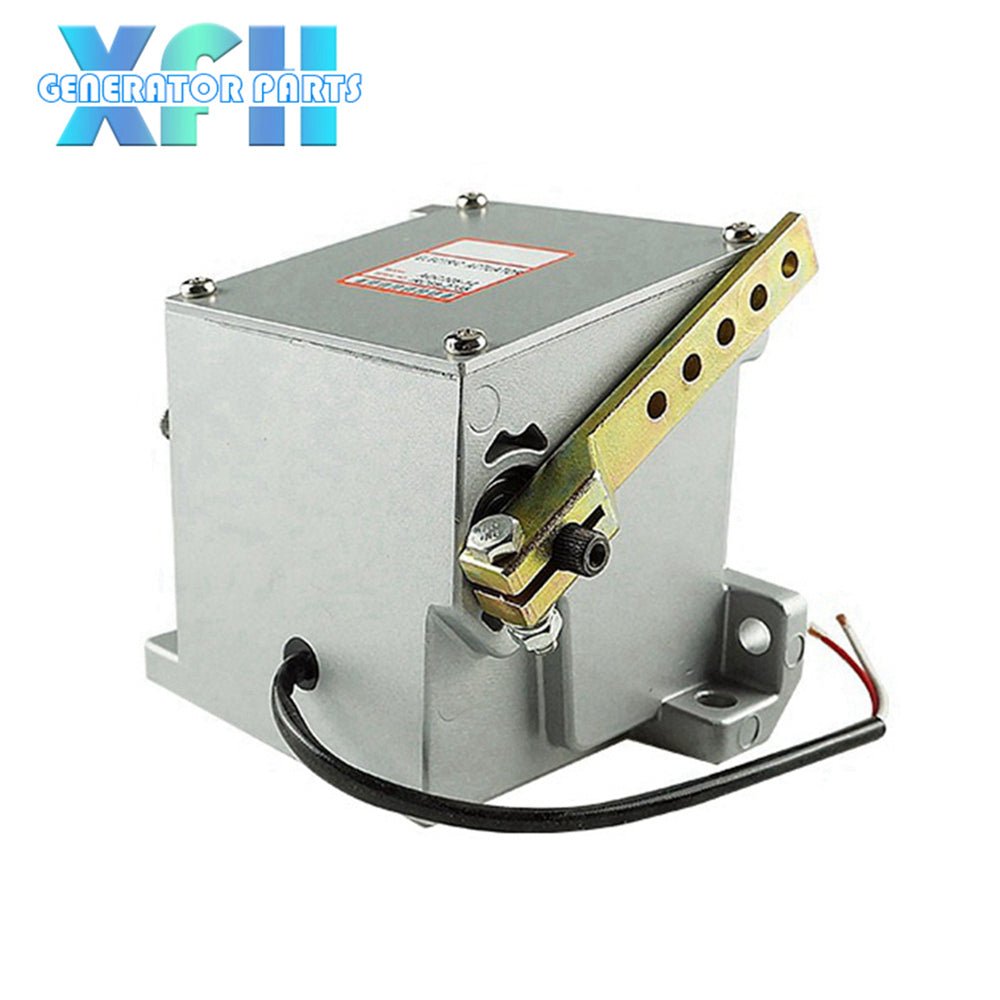

ADC225 Governor Actuator ADC 225 For Diesel Generator

ADC225 Governor Actuator ADC 225 For Diesel Generator

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Preço normal $65.00
Preço normal Preço promocional $65.00
Promoção Esgotado
Frete calculado no checkout.

Specification
Working stroke :28°
Model:general
Working voltage:12/24V DC
Input current:0-5A
Max. torque:3Nm

PERFORMANCE
Working pressure :12VDC/24VDC
Working angle:28 degree.
Working Current:Less than 4A
DC resistance:4.5OM
the maximum torque:4Nm
Hit:20G
Vibration:Less than 500Hz.

ELECTRICAL POWER INPUT
Operating Voltage:12 or 24V DC
Nominal Operating Current:
12V DC version:4.0A
24V DC version:2.0A
Maximum Current:
12V DC version:5.8A
24V DC version:3.1A

ENVIRONMENTAL
Operating Temperature:-40 to +95 °C (-40 to +200 °F)
Relative Humidity:up to 100%
Vibration:20g, 20-500 Hz
Shock:20g @ 11 msec.

PHYSICAL
Weight:4.75 lb. (3.2kg.)
Mounting:
Requires camshaft bearing retainer kit
P3000pump KT275
P7000 pump KT276
Mating Connector:EC1300
Mating Cable Harness:CH1215
