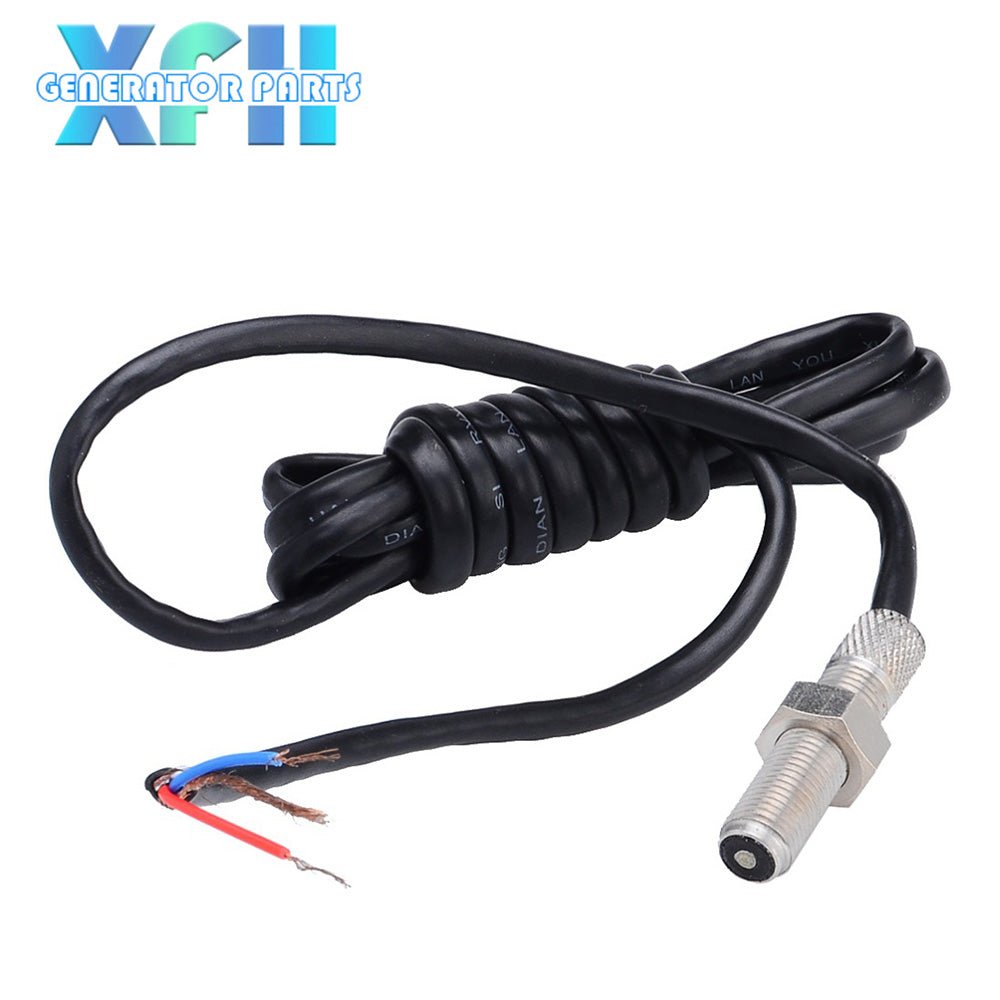

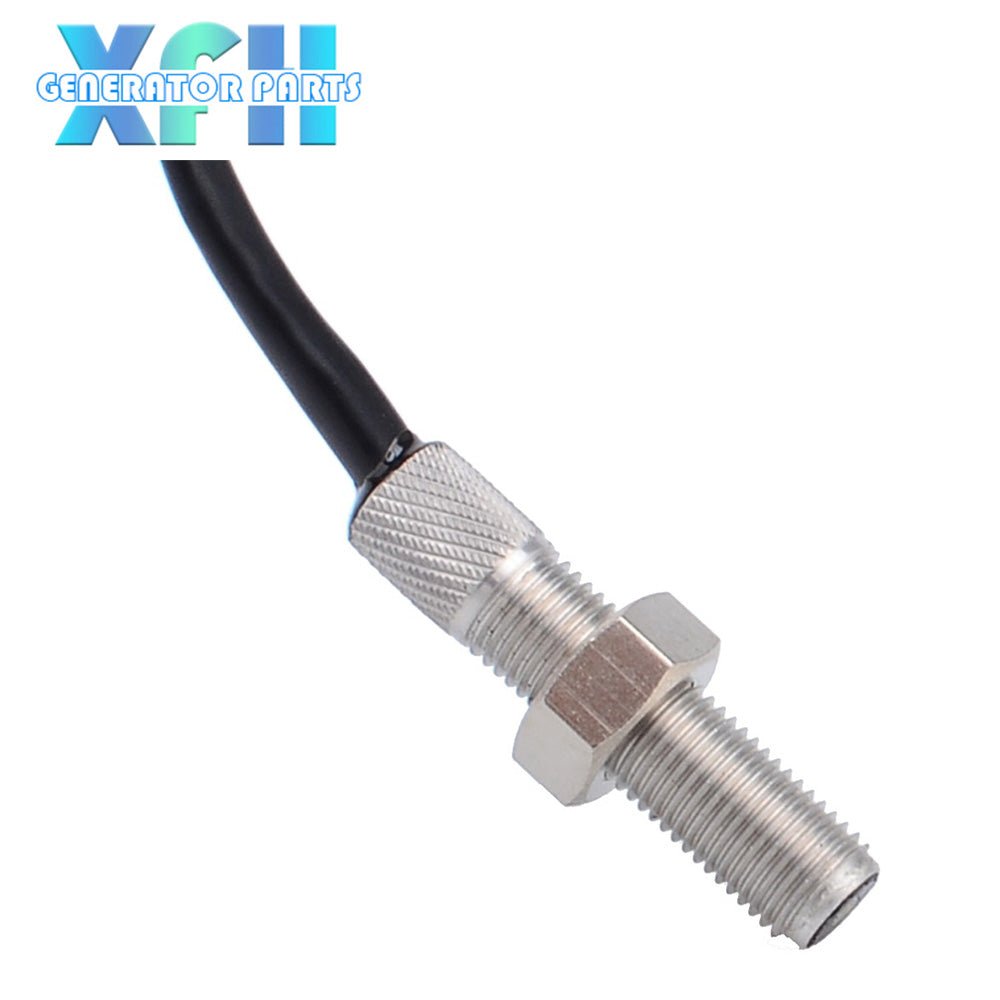

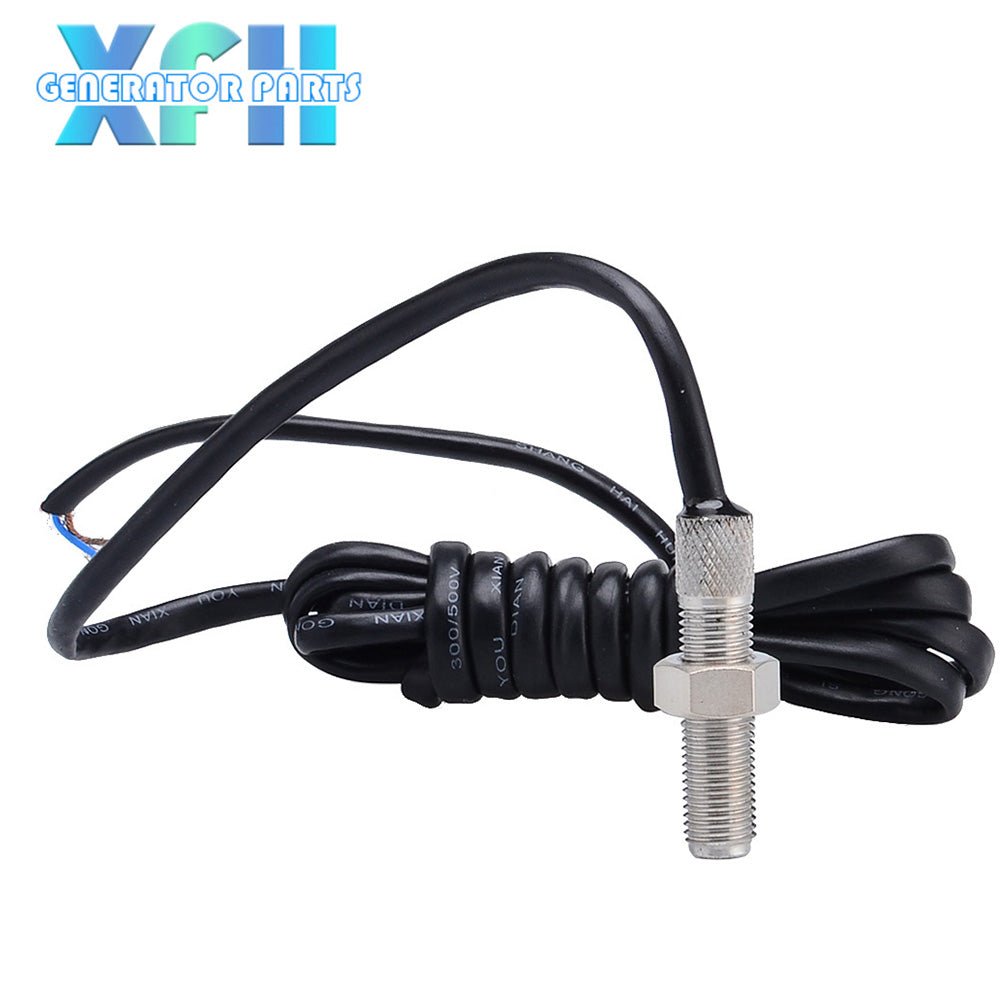

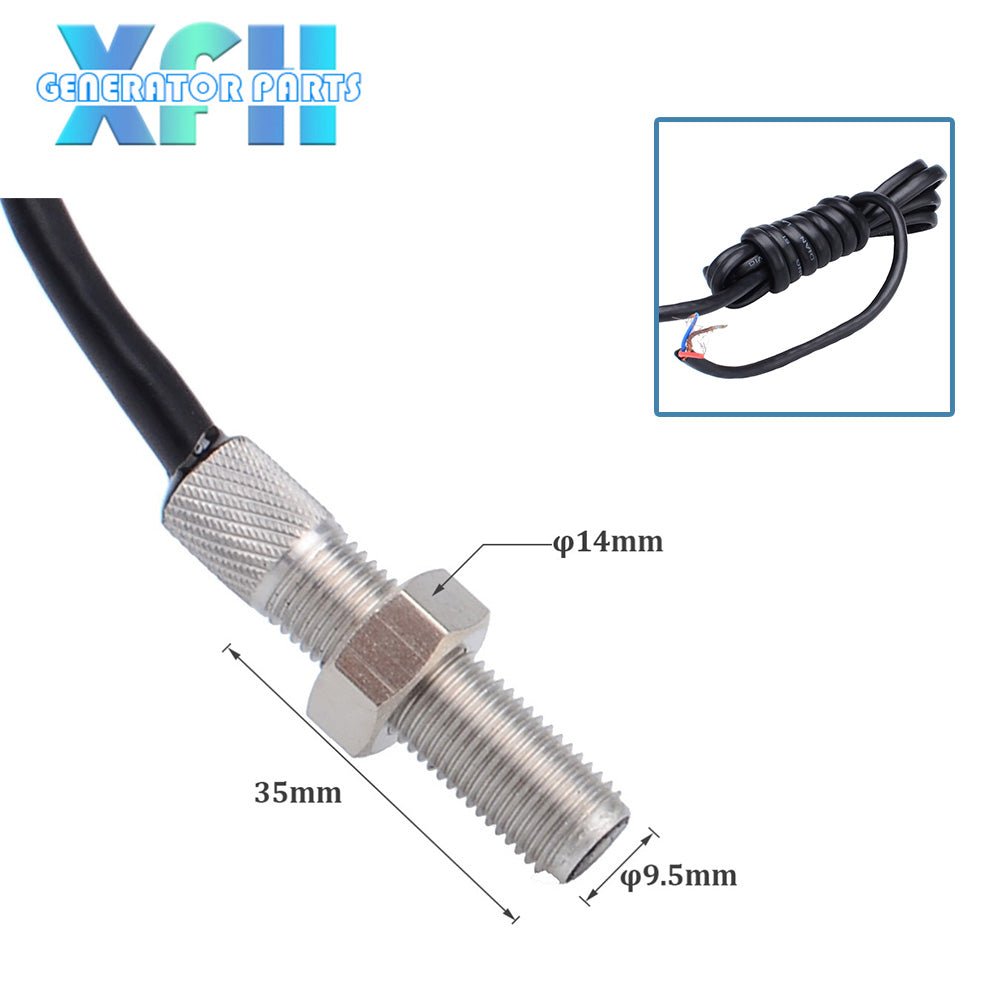

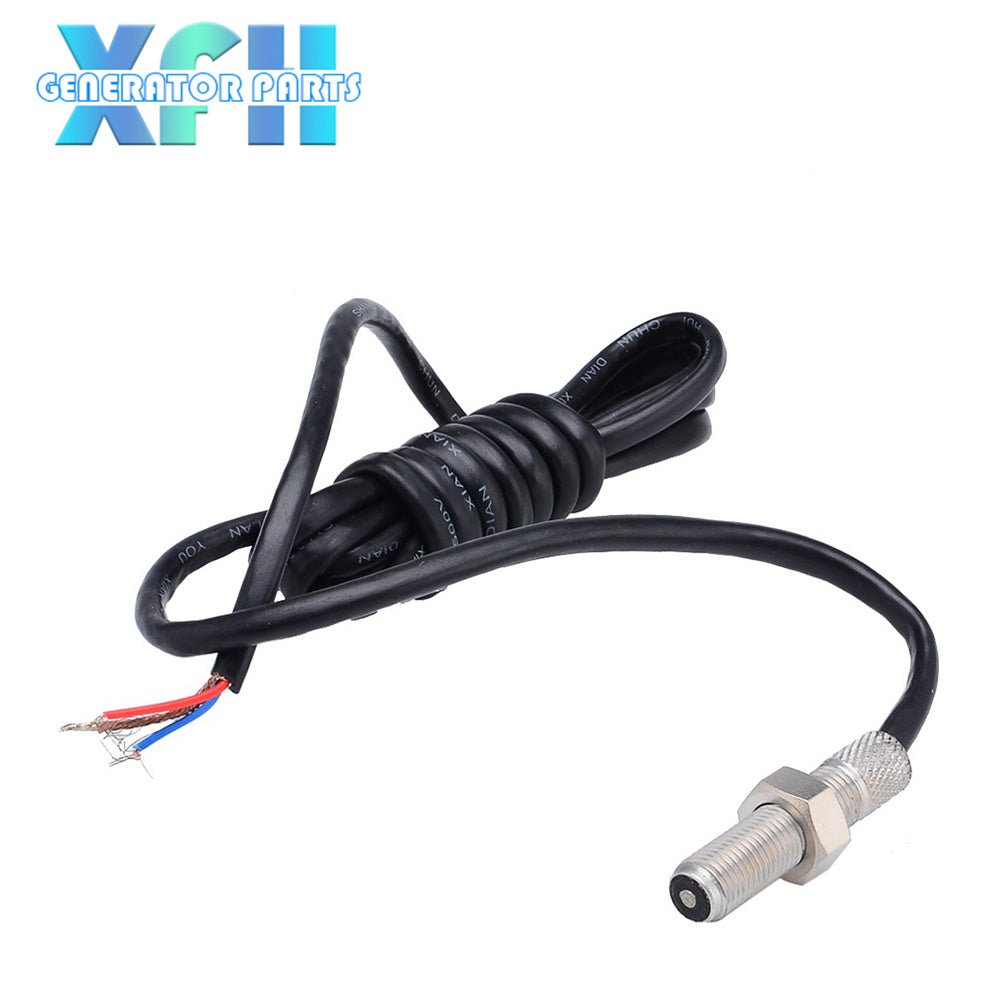

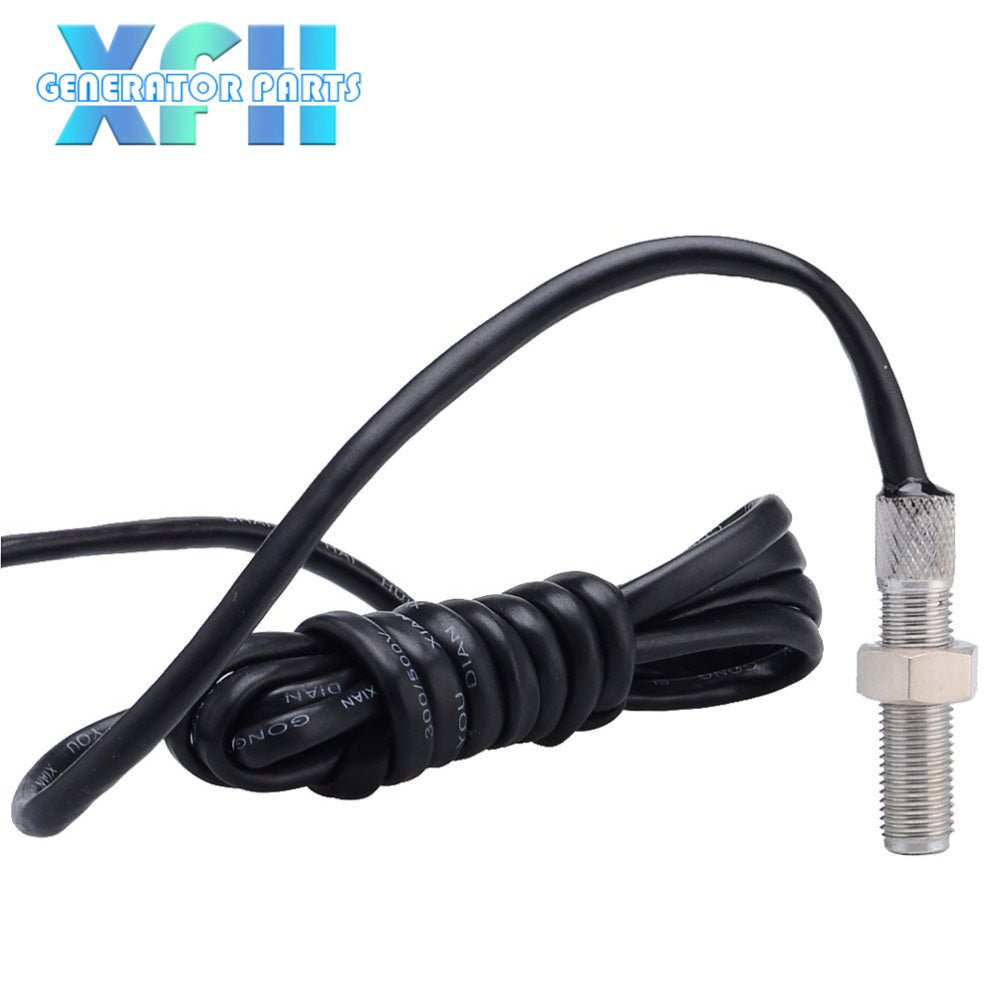

3/8 MSP6730 Magnetic Pickup MPU Generator Speed Sensor Rotational Speed Sensor RPM for Generator Set
3/8 MSP6730 Magnetic Pickup MPU Generator Speed Sensor Rotational Speed Sensor RPM for Generator Set
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Não foi possível carregar a disponibilidade de retirada.
The Generator Speed Sensor MSP6730 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the Generator Speed Sensor MSP6731, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
|
3/8-24 UNF Thread Generator Speed Sensor |
||||
|
Product # |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
|
MSP6729 |
2.7in [69mm] |
6ft [1.8m] |
Flying Leads |
No |
|
MSP6730 Speed Sensor |
1.7 in. [43mm] |
6ft [1.8m] |
Flying Leads |
No |
|
MSP6731 Speed Sensor |
4.0in [102mm] |
6ft [1.8m] |
Flying Leads |
No |
|
MSP6737 |
2.7in [69mm] |
6in [1.8m] |
Push-On Terminals |
No |
|
MSP6740 |
1.7in [43mm] |
6ft [1.8m] |
Packard |
No |
|
MSP6742 |
2.7in [69mm] |
1ft [0.3m] |
Flying Leads |
No |
