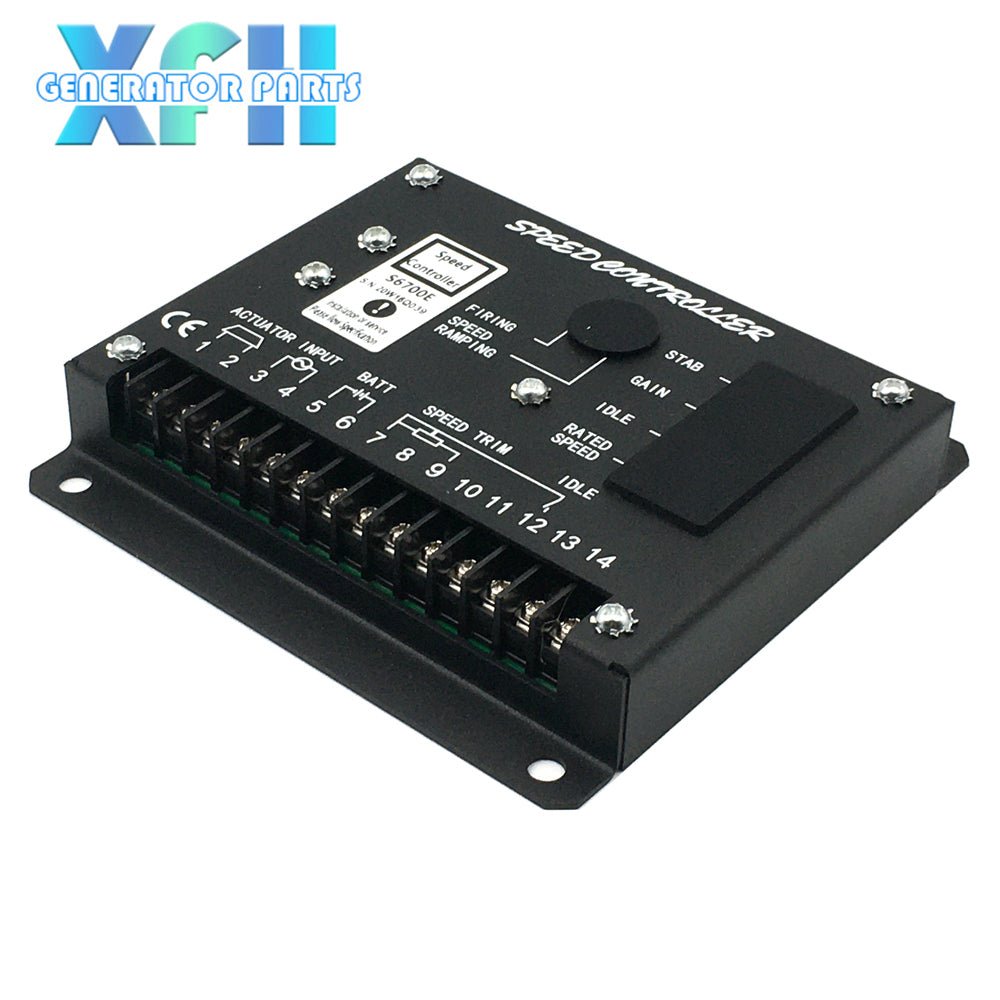

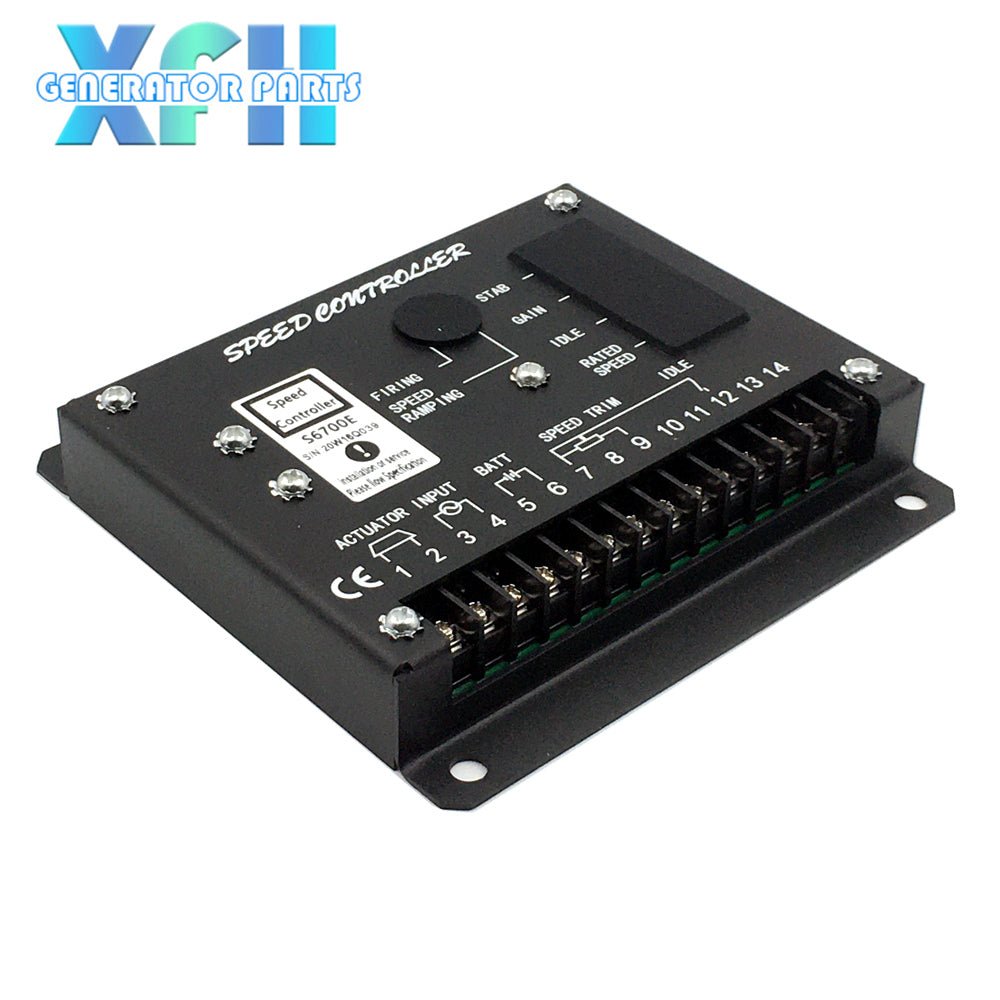

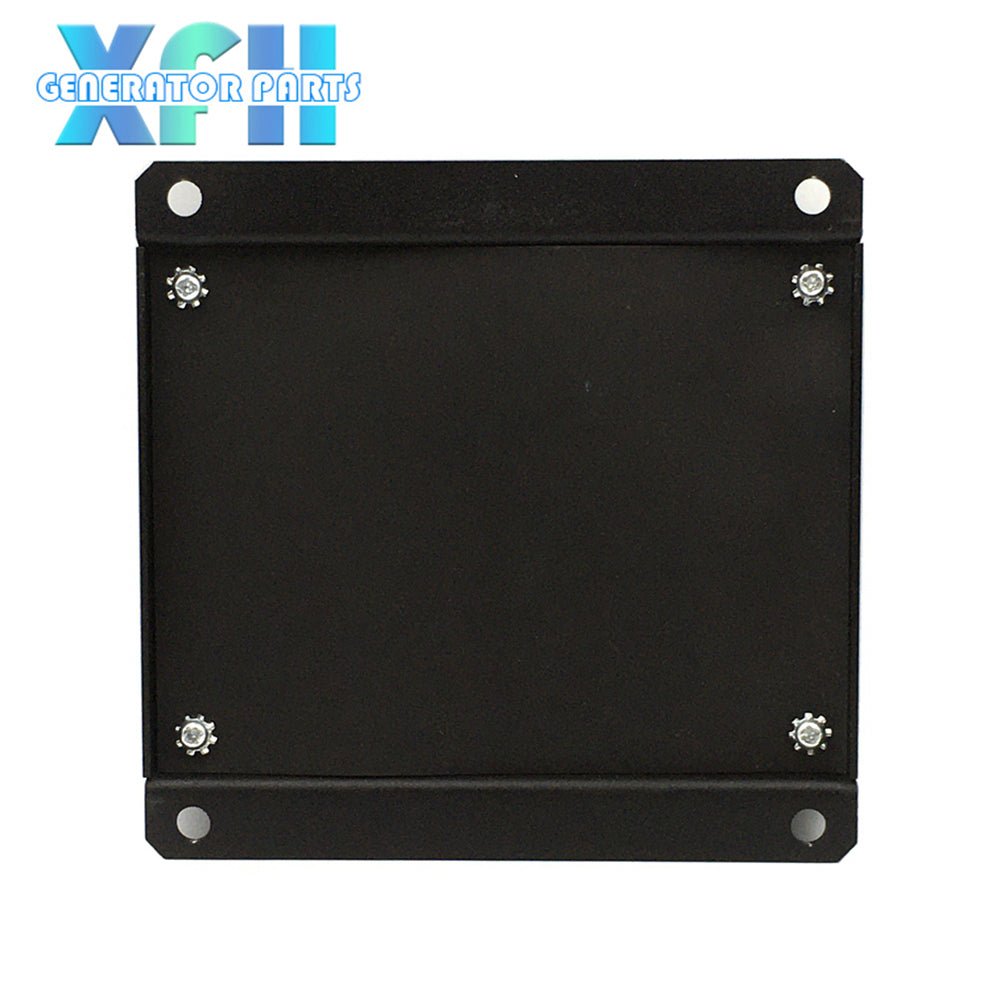

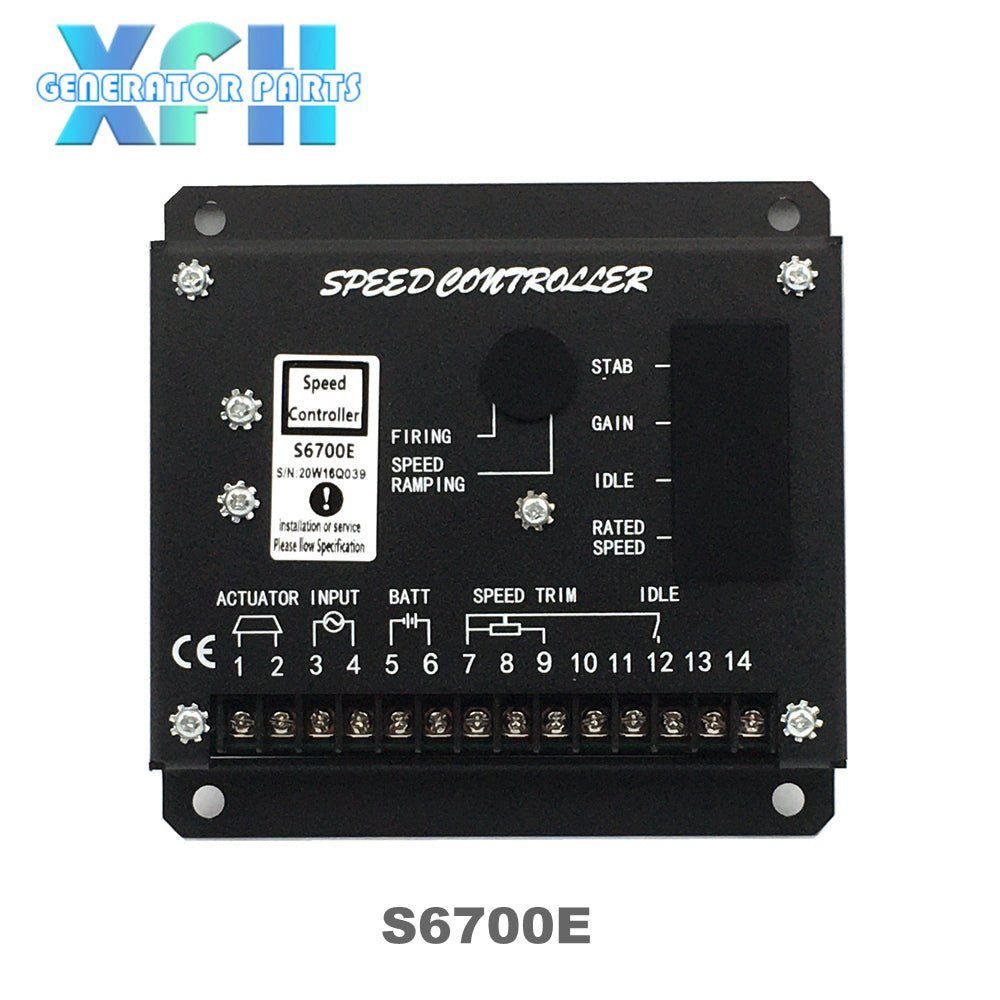

Speed Control Unit S6700E Speed Controller for Diesel Generator Genset
Speed Control Unit S6700E Speed Controller for Diesel Generator Genset
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Regular price
$74.42
Regular price
Sale price
$74.42
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.
Power reverse connection protection
Actuator default protection
Speed signal Lose protection
Over-speed & External high Level input Alam
Environmental
Ambient operating temperature range：- 40 ~ 85 °C
Relative humidity：95%
Input Power Supply：24VDC
Actuator current range：2.5-10A(continuous)
Speed sensor signal：1-20v
Characteristics
Speed fine adjustment range：± 100% r / min
Frequency fluctuation：± 0.25%
Steady speed droop：0~3% (variable)
Temperature drift： ± 1% (maximum)
The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.
Power reverse connection protection
Actuator default protection
Speed signal Lose protection
Over-speed & External high Level input Alam
Environmental
Ambient operating temperature range：- 40 ~ 85 °C
Relative humidity：95%
Input Power Supply：24VDC
Actuator current range：2.5-10A(continuous)
Speed sensor signal：1-20v
Characteristics
Speed fine adjustment range：± 100% r / min
Frequency fluctuation：± 0.25%
Steady speed droop：0~3% (variable)
Temperature drift： ± 1% (maximum)
