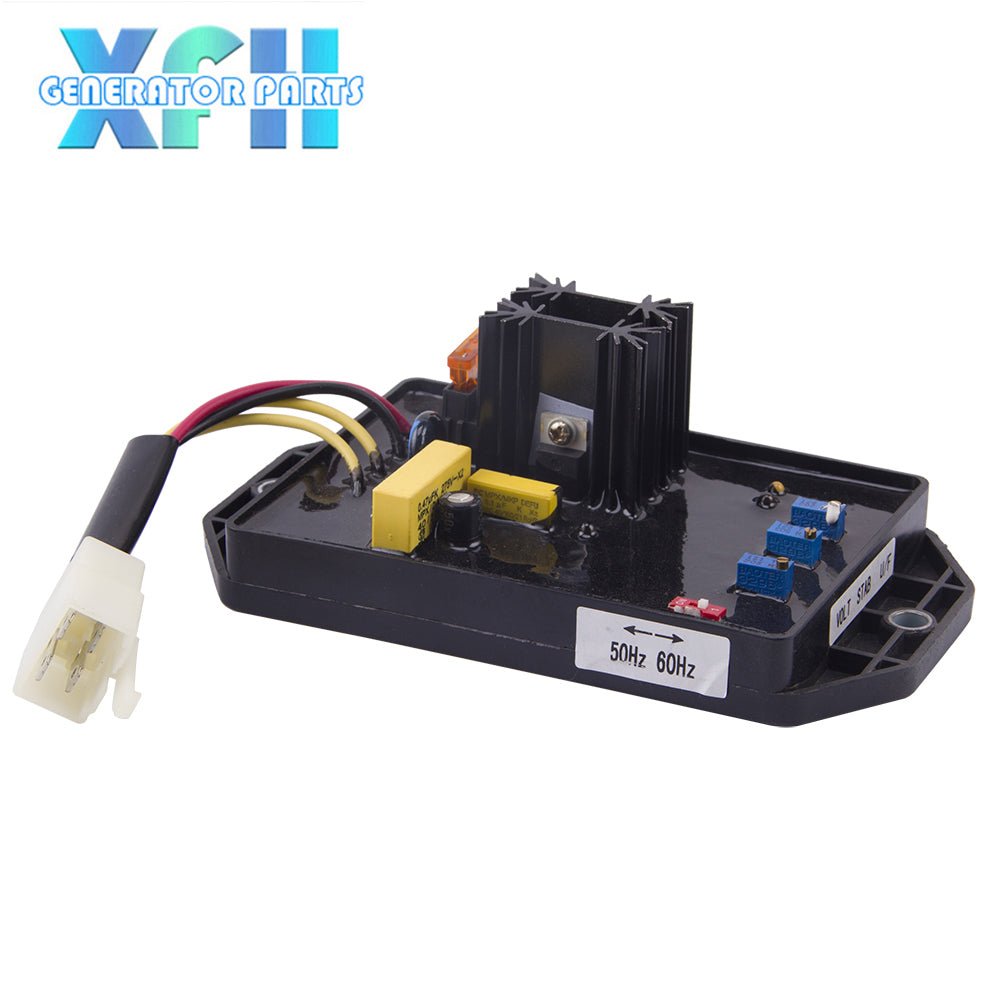

KT245BL-BNP AVR Brushless Generator Automatic Voltage Regulator Stabilizer Control Adjuster Module 5-15KW 4 Wires

KT245BL-BNP AVR Brushless Generator Automatic Voltage Regulator Stabilizer Control Adjuster Module 5-15KW 4 Wires

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

$44.00
$44.00
Sale Sold out
Shipping calculated at checkout.

1. Matching parameters with generator

Number of phases: single-phase, three-phase universal
Secondary winding, sampling voltage: 220V±40V
Starting voltage: ≥3.5V
Excitation current: ≤3.5A

2. AVR parameters
Output voltage: single-phase 230V, three-phase 400V
No-load voltage adjustment range (VOLT): ±20% (motor output voltage)
Applicable generator power: 5KW～15KW
Output voltage change rate: ≤1% (variable range can be adjusted according to generator parameters)
Voltage stability: ≤±0.5V
Temperature rise: ≤30℃
Low frequency protection (U/F): 50Hz (protection point 46Hz), 60Hz (protection point 56Hz) (conversion on adjustment off)
Stability adjustment (STAB): Slow adjustment to stabilize the output voltage

3. Installation instructions
Connector
Secondary winding sampling and excitation: 70413-6.3-11
Thread color
Secondary winding sampling: yellow (220V), excitation: red positive, black negative
clue
Wire diameter: ∮0.75m㎡, lead length: 100mm, external length: 450mm
Mounting holes
Aperture: ∮6.0mm, hole distance: 133mm
Dimensions
Rectangle: Maximum size 148*78*50mm
