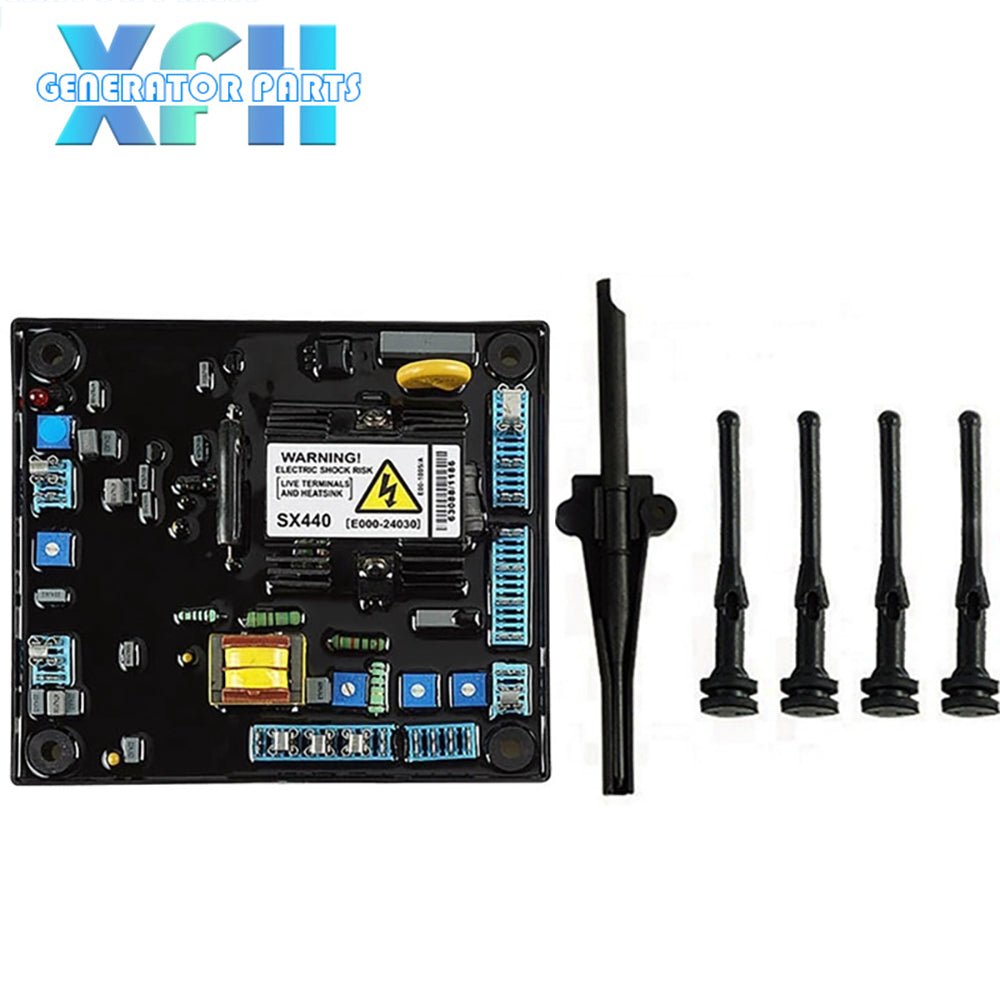

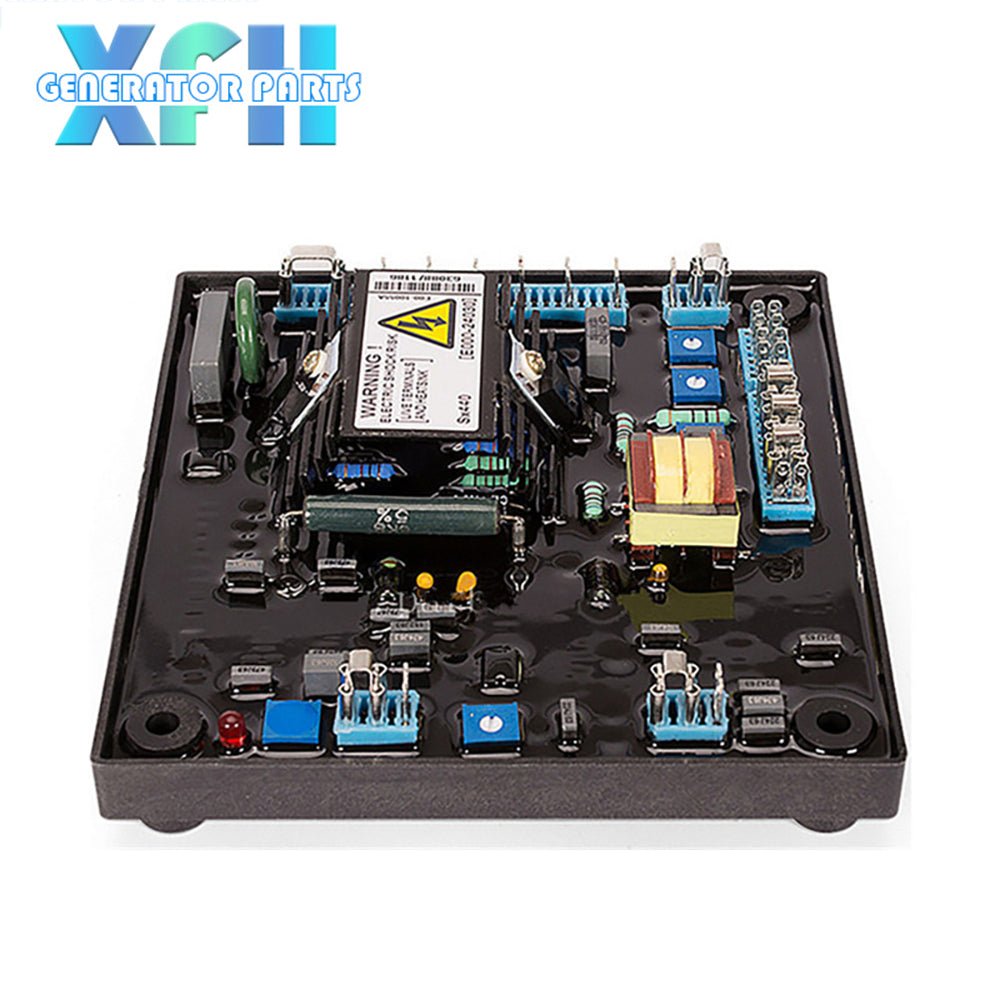

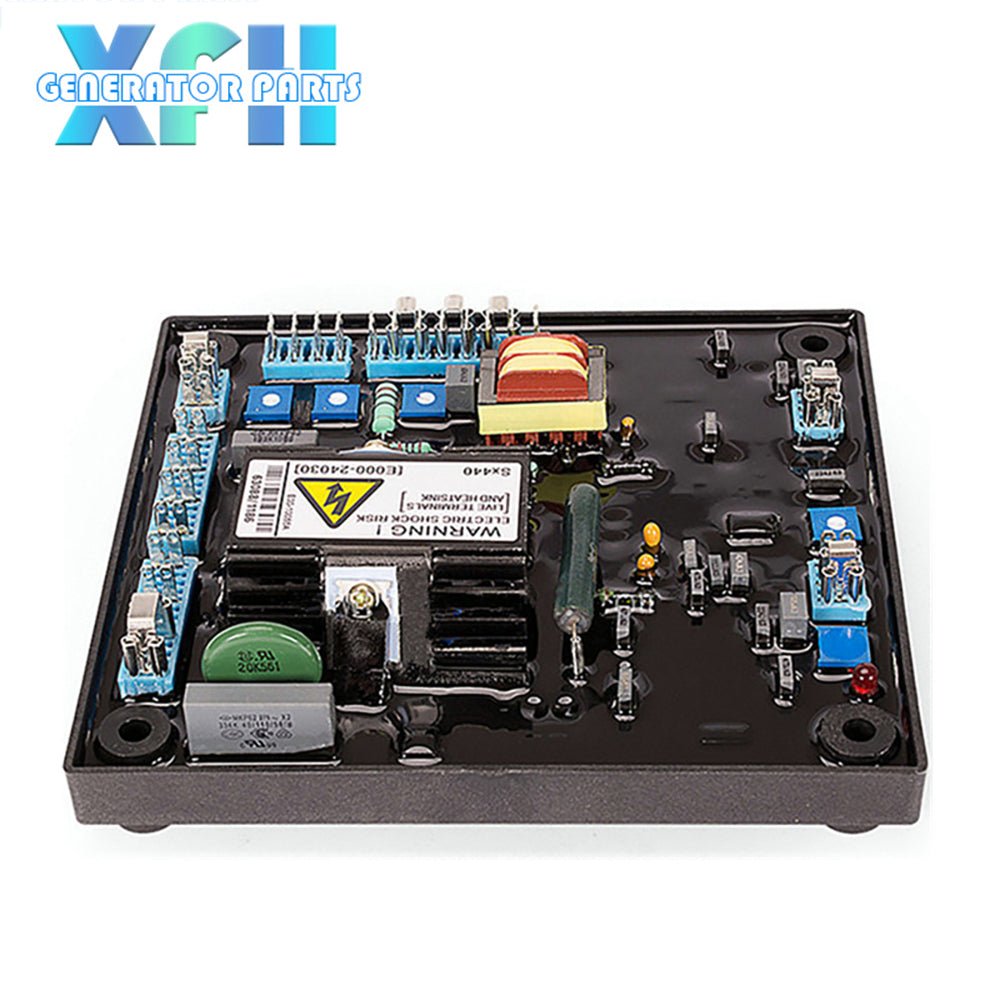

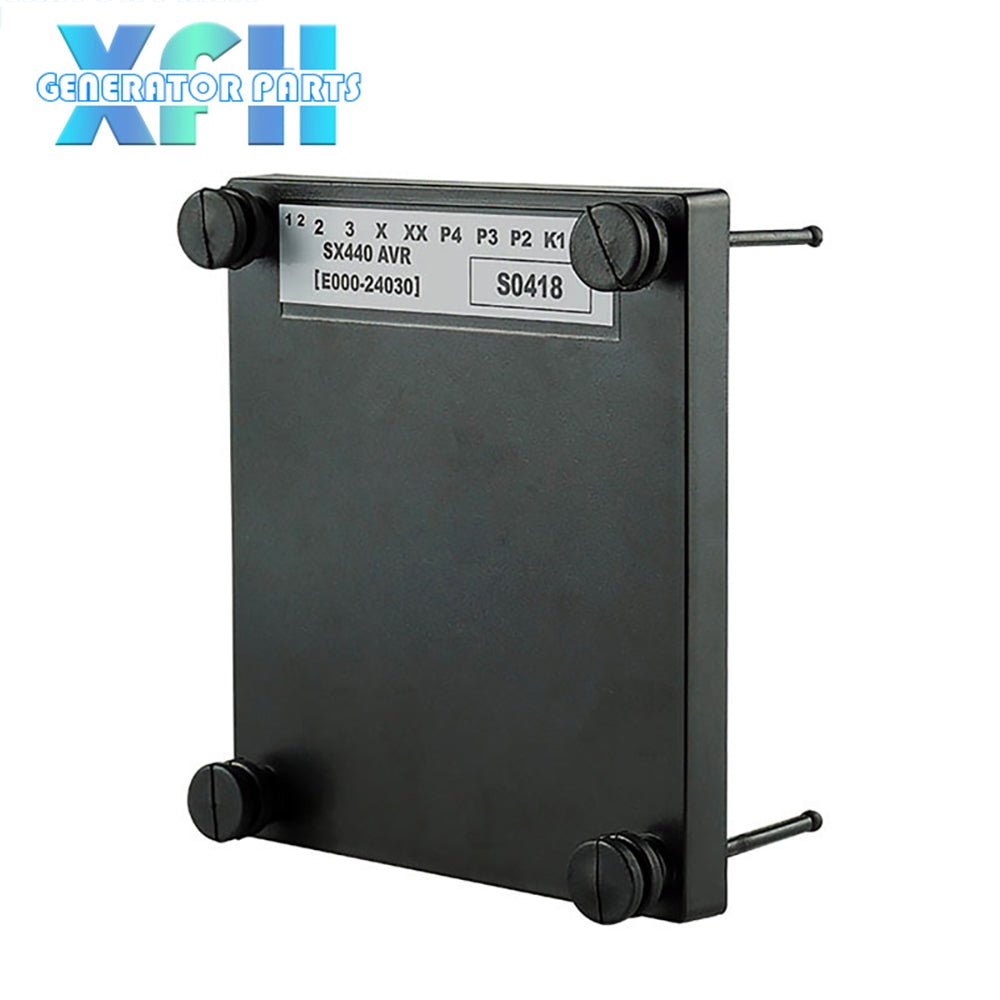

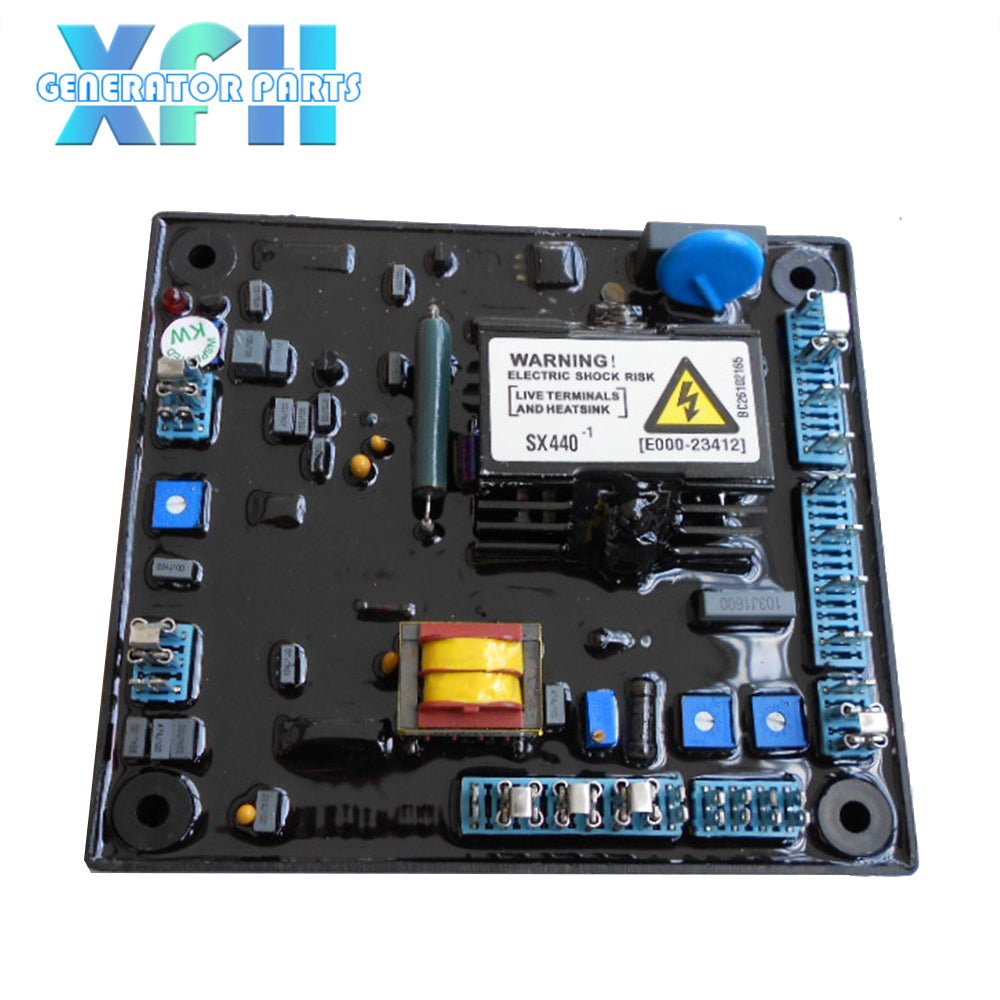

Generator AVR SX440 Automatic Voltage Regulator Electronic Power

Specifications:

*SENSING INPUT Voltage :190-264V ac max, 1 phase, 2 wire
*Frequency: 50-60 Hz nominal
*POWER INPUT (PMG) Voltage: 140-220V ac max, 3 phase, 3 wire Current 3A/phase
*Frequency: 100-120 Hz nominal
*OUTPUT Voltage: max 120V dc
*Current continuous 2.7 A
*Intermittent 6A for 10 secs.
*Resistance 15 ohms minimum REGULATION:+/- 1% (see note 1)
*THERMAL DRIFT:0.03% per oC change in VOLTAGE REGULATOR ambient (note 2)
*SOFT START RAMP TIME:3 seconds
*TYPICAL SYSTEM RESPONSE
*EXTERNAL VOLTAGE ADJUSTMENT:+/-10% with 1 k ohm 1 watt trimmer (see note 3)
*UNDER FREQUENCY PROTECTION:Set point 95% Hz (see note 4)

Features:

* High quality generator voltage regulator, long service life.
* Protection function: built-in low speed, over excitation, LAM.
* Compact size and light weight, easy to use.
* High quality capacitor and terminal, superior performance.
* Professional manufacturing, exquisite workmanship, high reliability.
