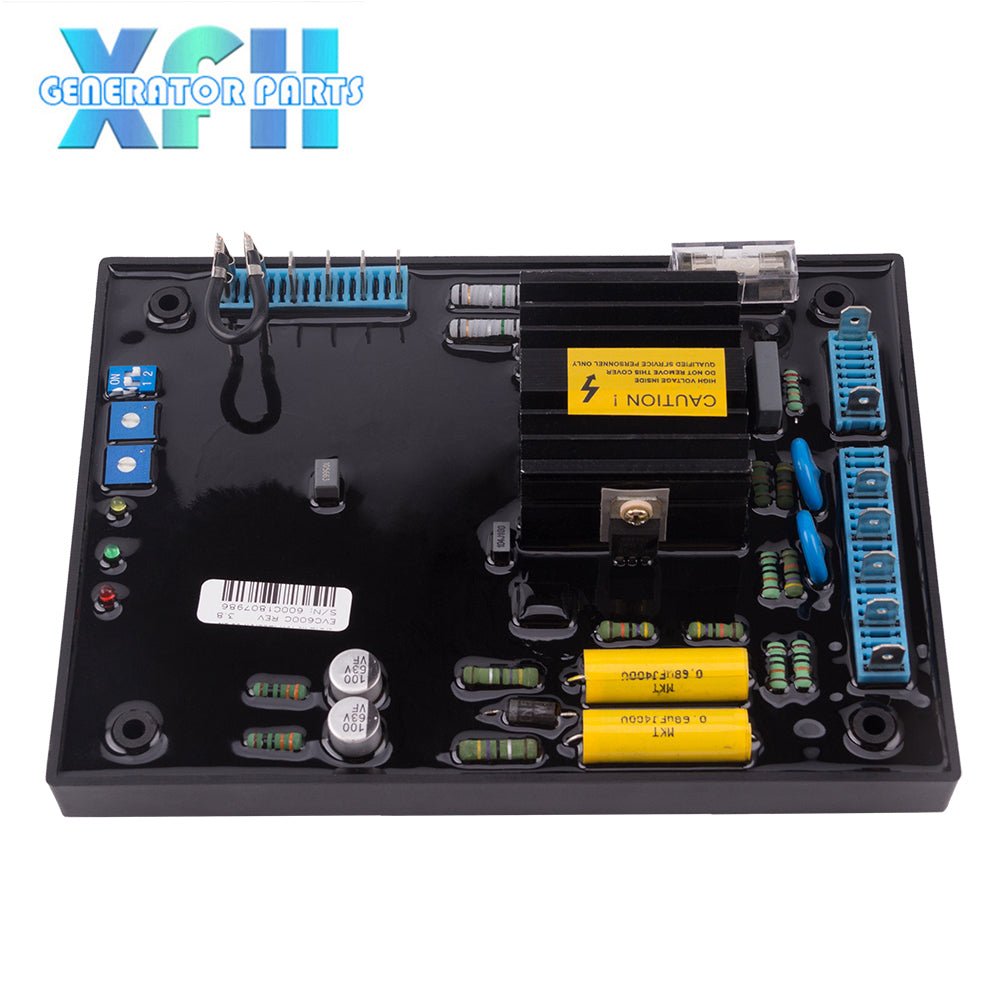

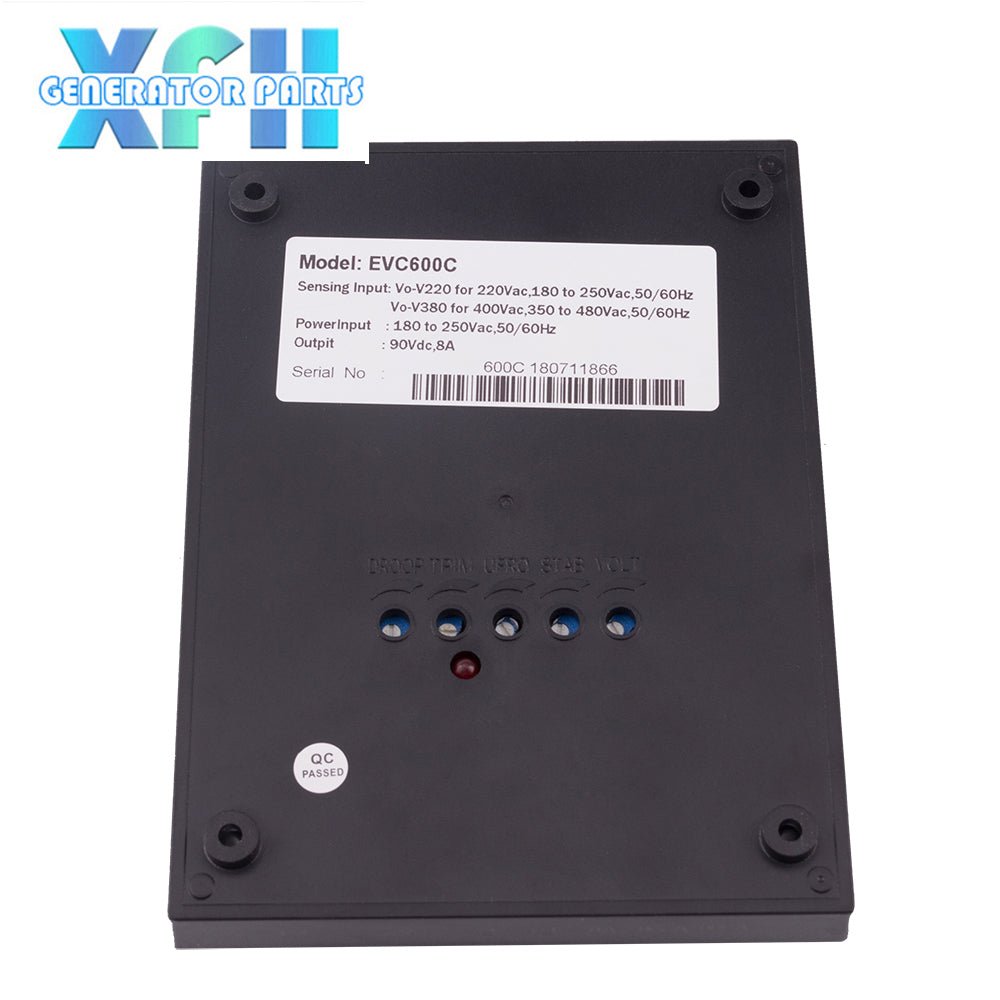

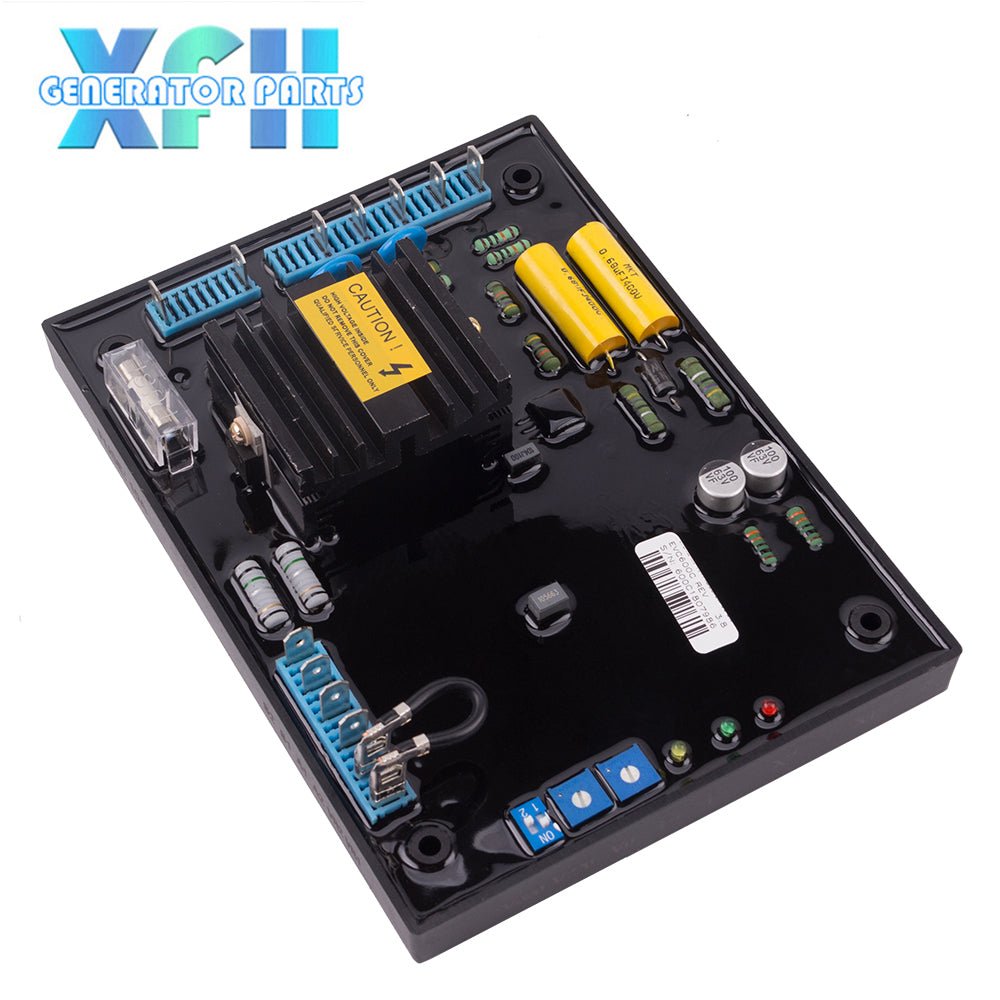

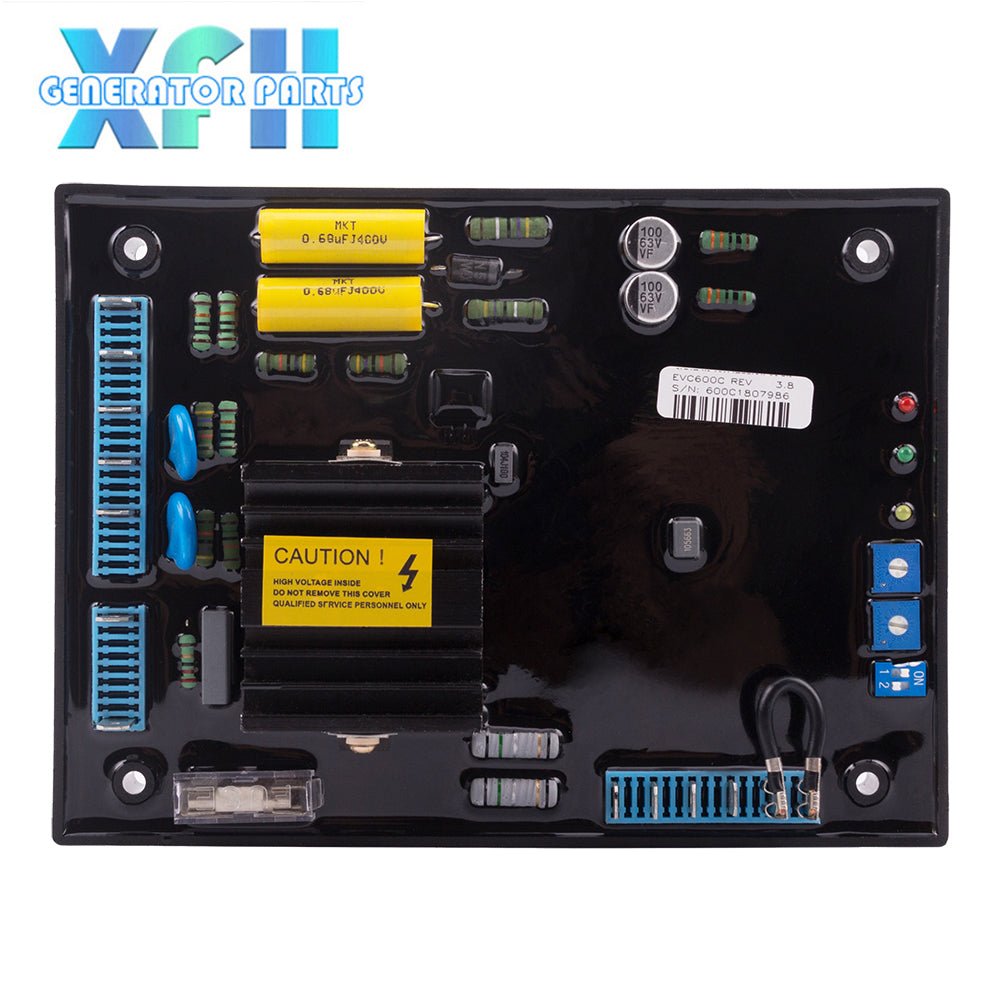

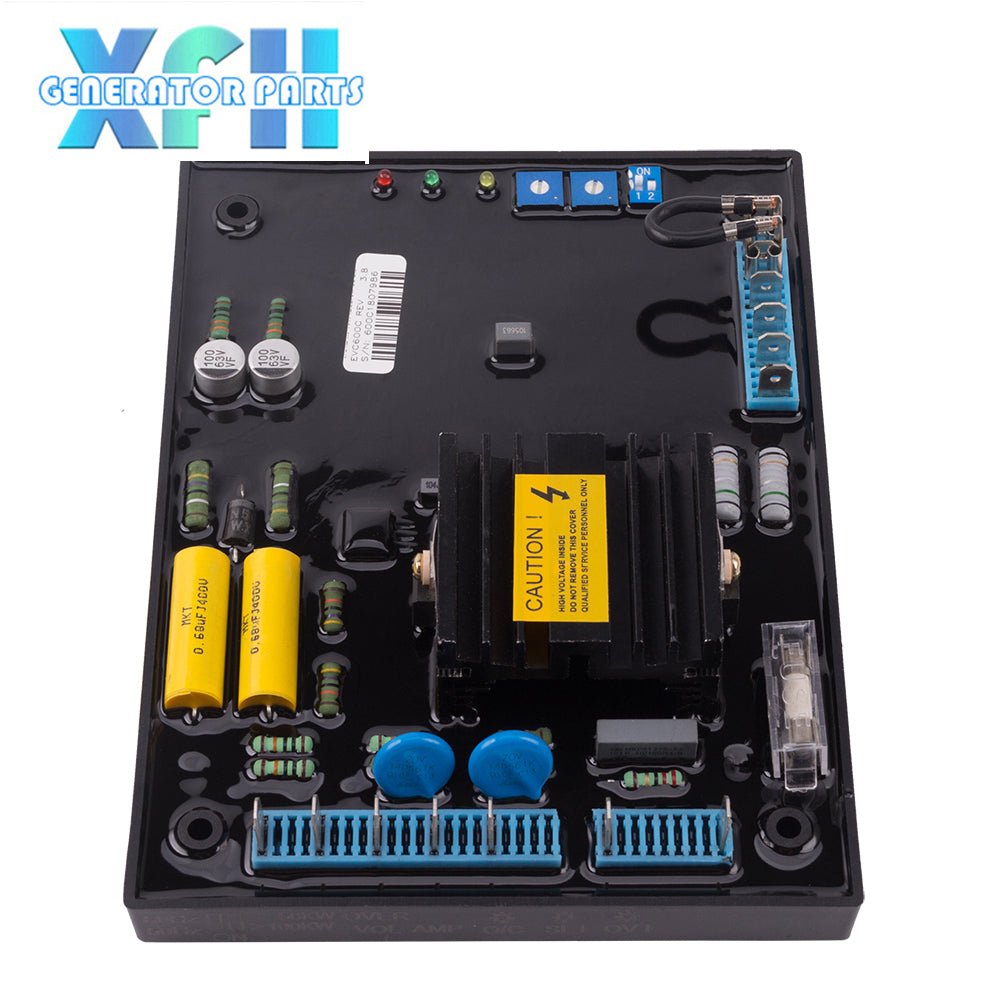

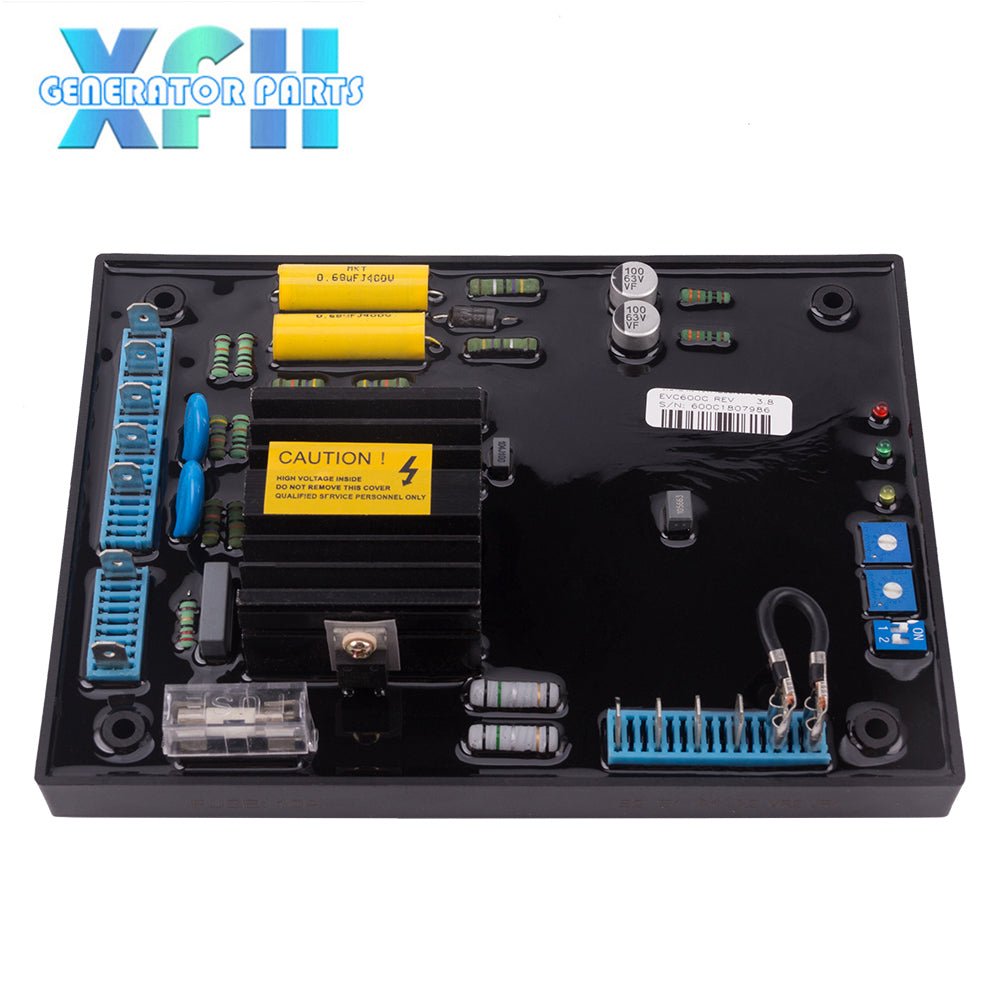

EVC600C Engga AVR Diesel Generator Voltage Regulator Stabilizer Genset Spare Parts

EVC600C Engga AVR Diesel Generator Voltage Regulator Stabilizer Genset Spare Parts

Features

EVC600C it is a generator automatic voltage regulator based on the principle of half- phase-controlled rectification excitation.
To stabilize the output voltage of an alternator by adjusting the excitation current of the generator.
A generator used as an excitation power source with an auxiliary winding, a phase power source, or the like.
The regulator has the characteristics of high stability, fast reaction and convenient installation and maintenance.
High resistance accuracy, wide range of operating temperature, good drift and good stability.
High quality capacitors, good parameter consistency and high reliability.

Specification

Voltage：Up To 90 V DC ,220V AC
Continuous Current： 8A
Maximum Instantaneous Output Current：10ADC. ≤10S
Minimum Excitation Winding Resistance： 8Ω
Input Voltage (AC)：180-250Vac, 50/60Hz
Power：Up To 1000VA (240Vac)
Detection Voltage (AC)：
180~250Vac (220Vac System), Single Phase, 50/60Hz;
350~480Vac(400Vac System), Single Phase, 50/60Hz;
Power Consumption：5VA
Voltage Adjustment Range：180-300Vac,220Vac System; 350~480Vac,400Vac
Voltage Regulation Accuracy： ≤ ± 1%
Voltage Drift：< 0.05% / °C
Response Time：1.5S
The Residual Excitation Voltage Of The Generator Is Automatically Built, 5Vac, 25Hz
Power Consumption：Up To 40W
CT：Rated Current Ratio 5A
Ordinary Current Transformer Drop0~6%, 0.8 Power Factor
Operating Temperature：-30°C~+800°C
Vibration：12Gs, 5-26Hz;
0.036 Inch Amplitude, 27~52Hz;
5.0Gs, 53~1000Hz
Shock：20Gs On Three Orthogonal Planes
Installation Location：Mounting The Junction Box Of The Generator With Bolts
