Electrical EA05AF Genuine 50/60 Hz Control Brushless Generator Parts AVR Automatic Voltage Regulator Stabilizer Power
Electrical EA05AF Genuine 50/60 Hz Control Brushless Generator Parts AVR Automatic Voltage Regulator Stabilizer Power
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Couldn't load pickup availability

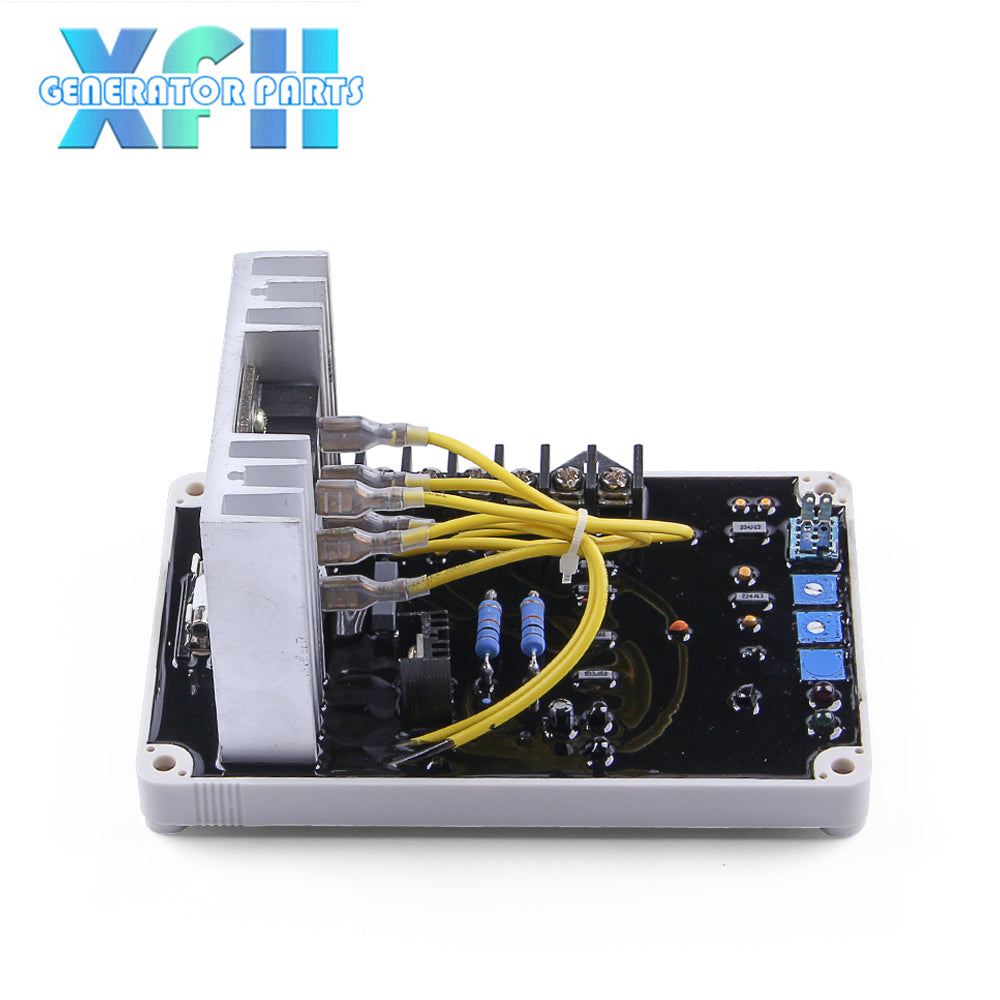

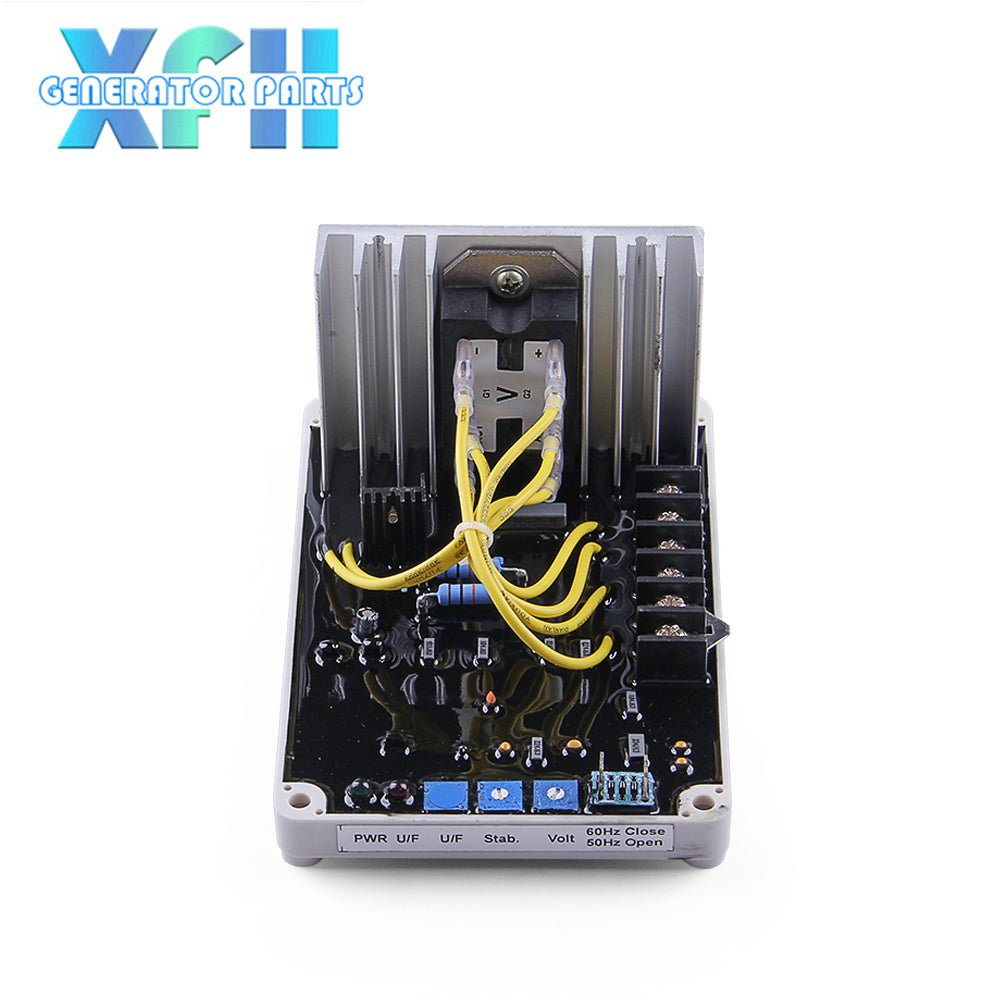

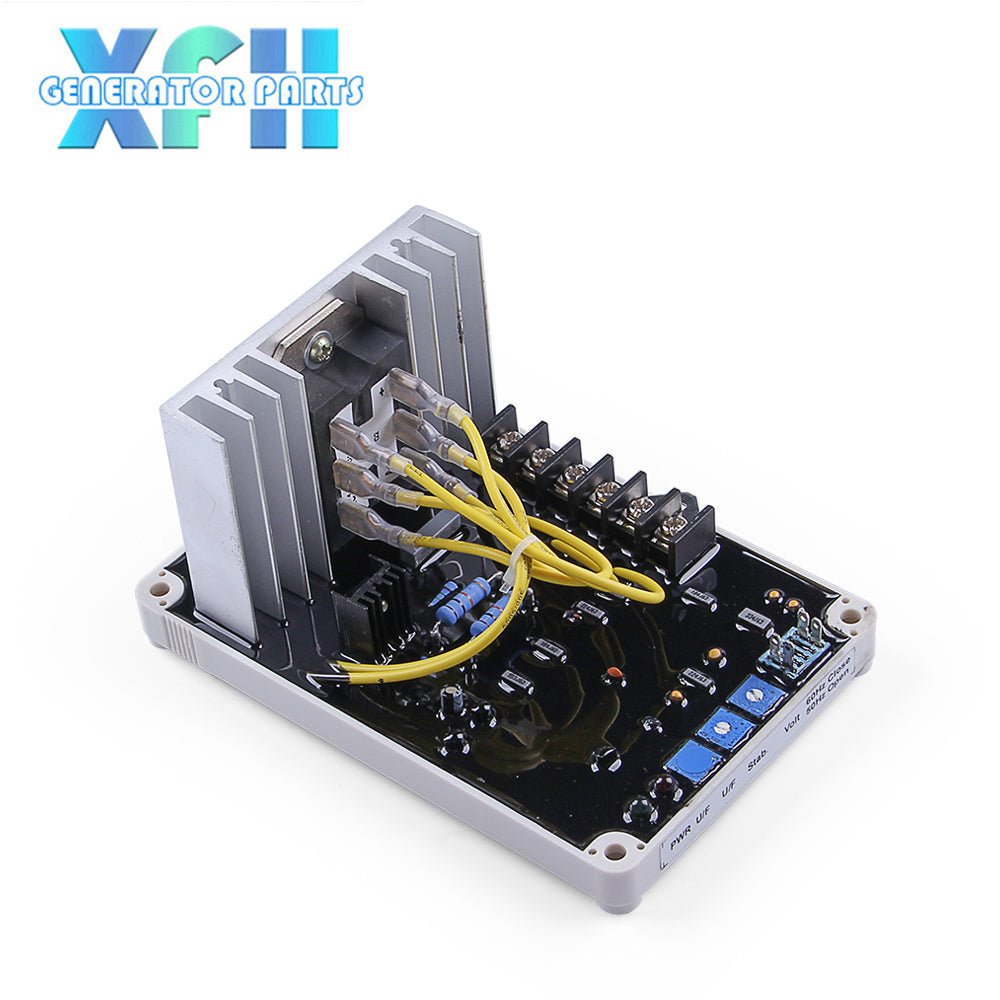

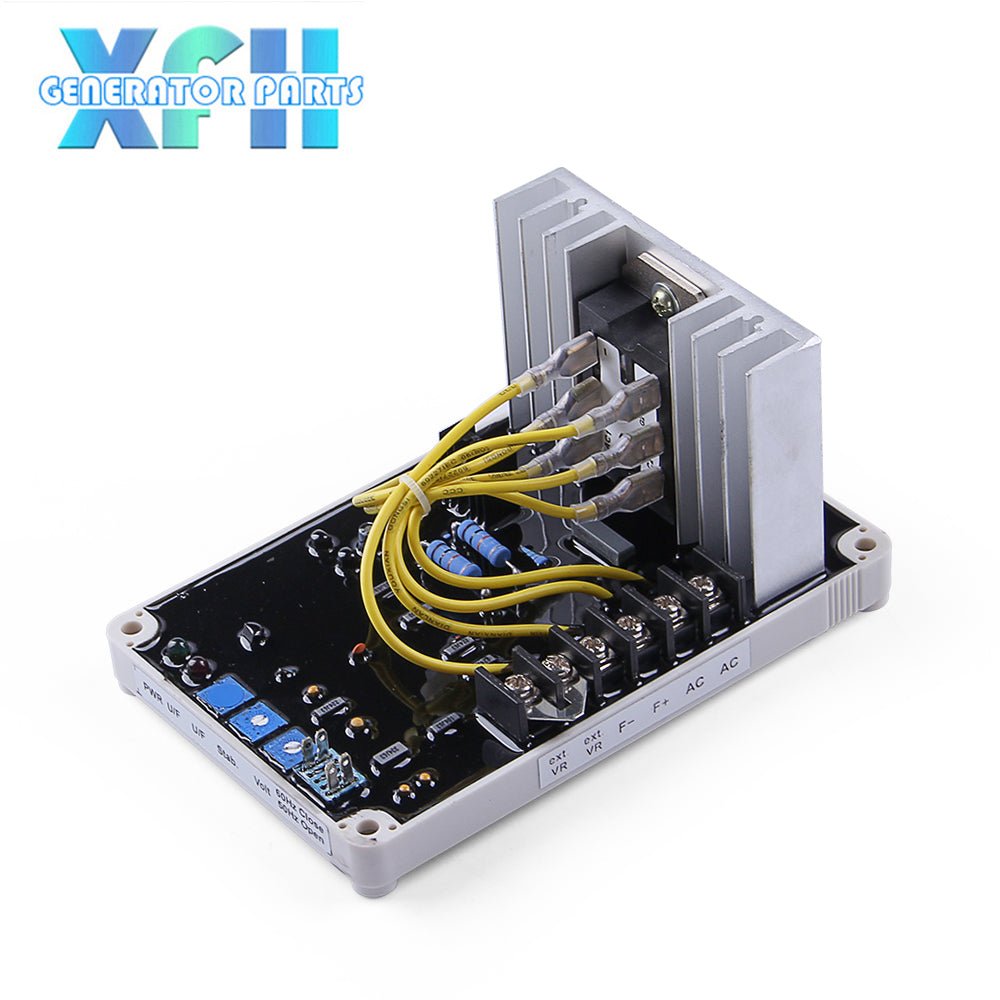

Brushless AVR EA05AF
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
Built-in High Capacity 5 Amp Fuse
Sensing Input
Voltage:220/380/440VAC , 1 phase 2 wire
Frequency:50-60Hz nominal
Voltage input:100-300VAC , 1 phase 2 wire
output Voltage:max90VDC at 240VAC input
Current:continuous 5A,intermittent 7A for 10 secs
Resistance:12 Ω minimum , max 100Ω
Regulation:+/-0.5% RMS with 4% engine governing
Voltage build-up: residual voltage at avr terminal >5VAC
External Voltage Adjustment:+/-7% with 1k ohm 1 watt trimme
the size:125*95*55 mm
