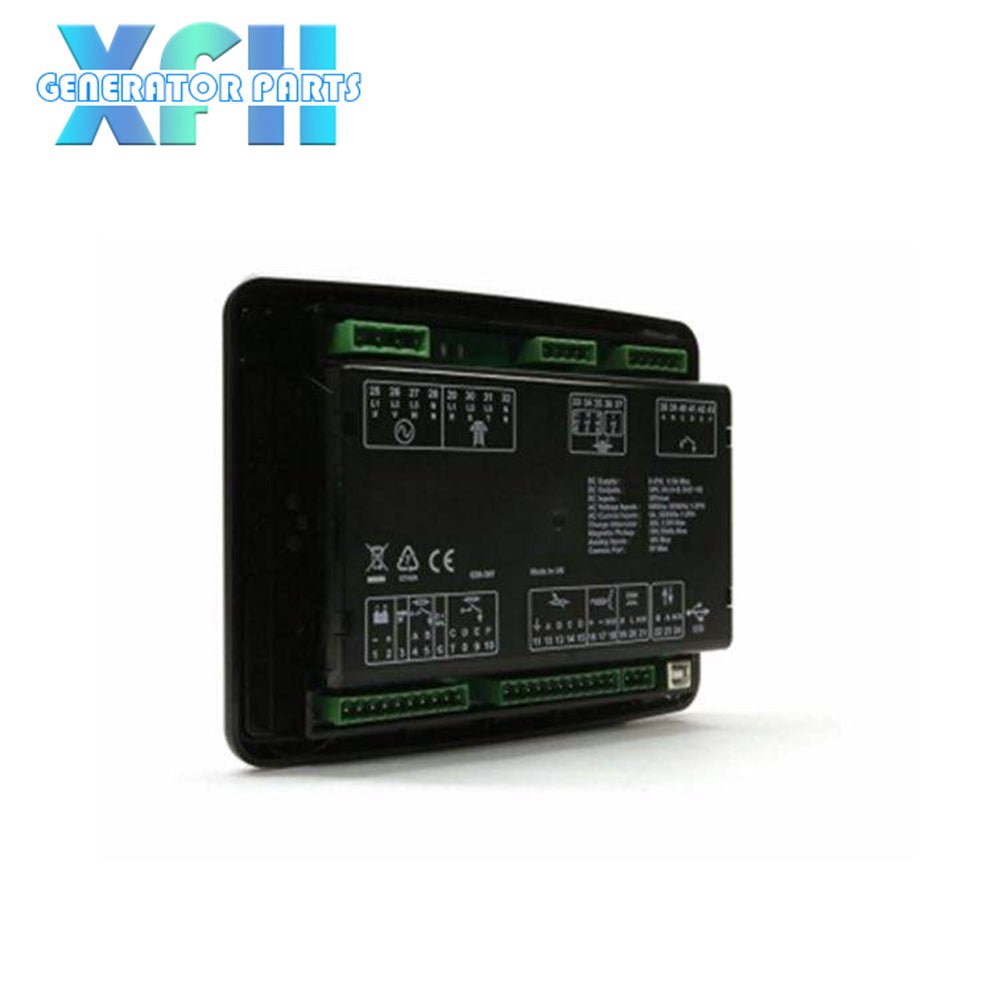

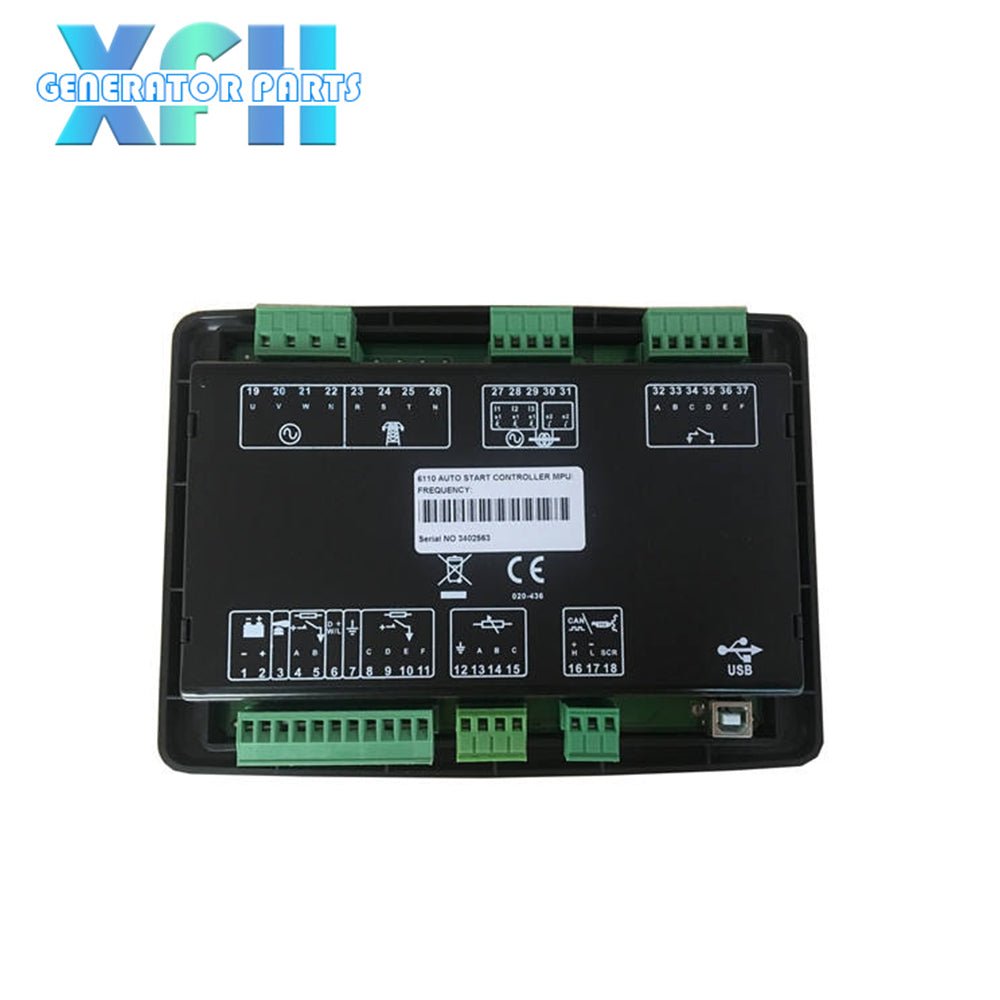

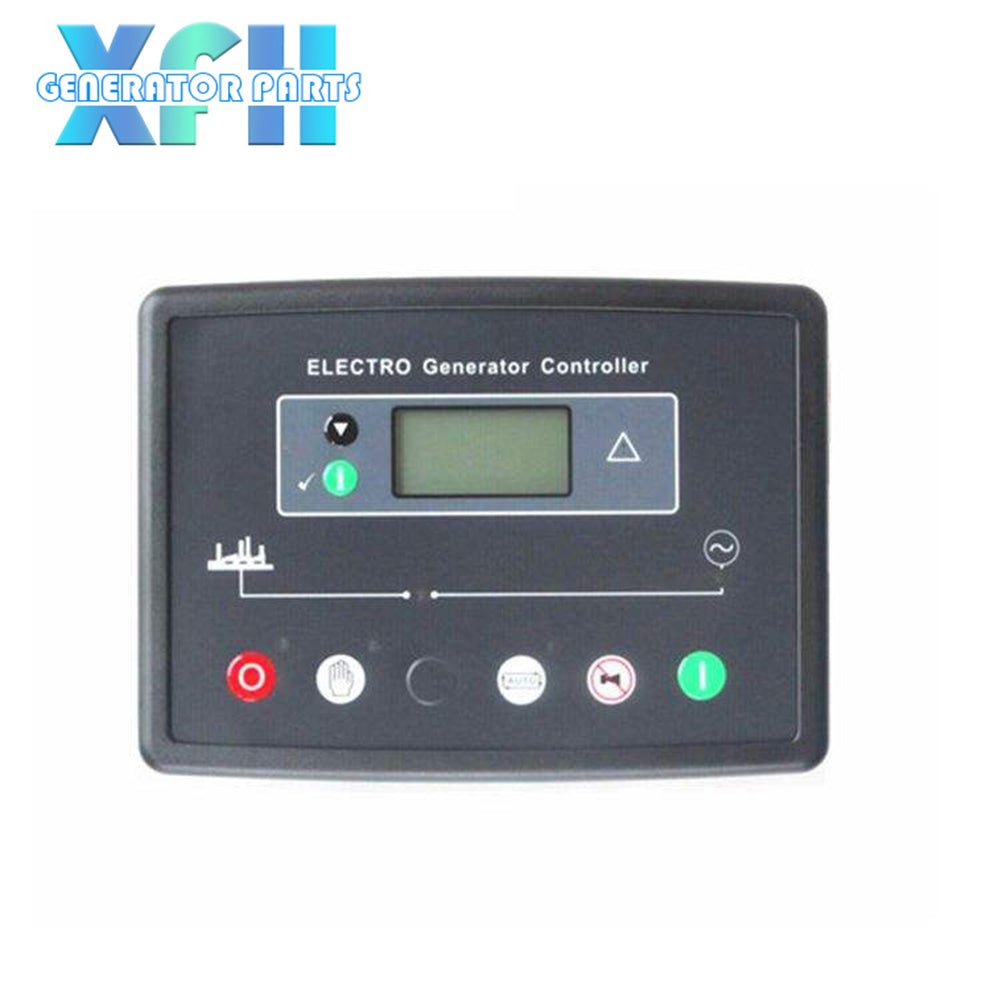

DSE6110 Generator Controller DSE6110 Auto Start Diesel Genset Control Pannel

DSE6110 Generator Controller DSE6110 Auto Start Diesel Genset Control Pannel

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Regular price $126.40
Regular price Sale price $126.40
Sale Sold out
Shipping calculated at checkout.

Product Introduction

The DSE6110 is an Auto Start Control Module and the DSE6120 is
an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single gen-set applications.
Monitoring speed, frequency,voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

Key Features

• Back-lit text LCD display
• Front panel editing
• LED and LCD alarm indication
• Power Save mode
• CAN and Magnetic Pick-up/Alt.versions available (specify on
ordering)
• PC and front panel configuration
• 6 Digital inputs
• 3 Analogue inputs
• 6 Outputs (4 configurable on Magnetic Pick-up/Alt., 6
configurable on CAN version)
• Configurable timers and alarms
• Alternative configuration
• Event Log (10)
• Remote Start input
• 3 Phase generator monitoring
• Current Monitoring and protection • 3 Phase Mains (Utility) monitoring
(DSE6120 only)
• Test button (DSE6120 only)
• Battery voltage monitoring
• Engine pre-heat
• Hours counter
• Comprehensive shutdown or warning on fault condition

Specification

CONTINUOUS VOLTAGE RATING:8 to 35 Vdc Continuous

CRANKING DROPOUTS:Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT: 178 mA at 12 V, 95 mA at 24 V

MAXIMUM STANDBY CURRENT:88 mA at 12 V, 50 mA at 24 V

MAINS (UTILITY) DSE6120 ONLY
VOLTAGE RANGE:15 V - 333 V AC (L-N)

FREQUENCY RANGE:3.5 Hz to 75 Hz

WORKING TEMPERATURE RANGE:-40 oC to +85 oC
