Mebay DC102D Synchronising AMF Load Sharing Generator Controller Control Module

Mebay DC102D Synchronising AMF Load Sharing Generator Controller Control Module

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Harga reguler $599.00
Harga reguler Harga obral $599.00
Obral Habis
Biaya pengiriman dihitung saat checkout.

mebay controller DC102D the genset parallel controller utilizing the GOV (Engine Speed Governor) and AVR (Automatic Voltage Regulator) control function, the controller is able to synchronize and share load automatically. It can control manual/auto parallel system generators with similar or different capacity. Additionally,It is suitable for independent constant power output and multiple generators in parallel. It allows automatic start/stop, parallel running, data measurement, alarm protection as well as remote control, remote measurement and remote communication function.

Main Features

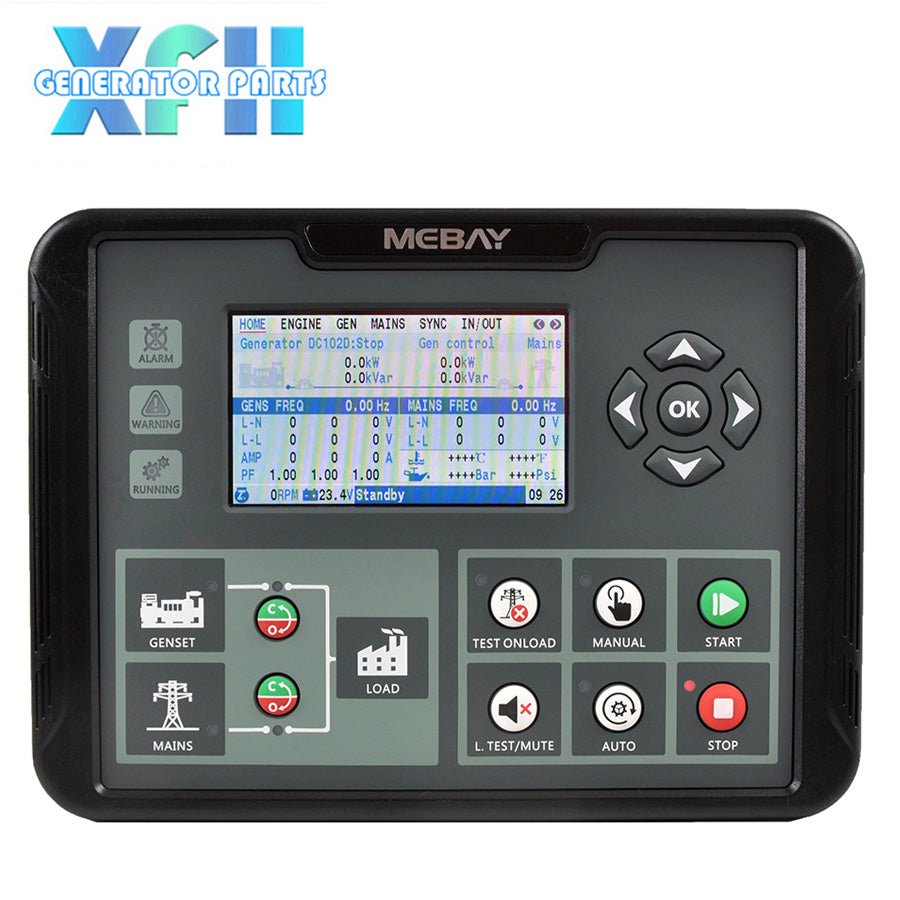

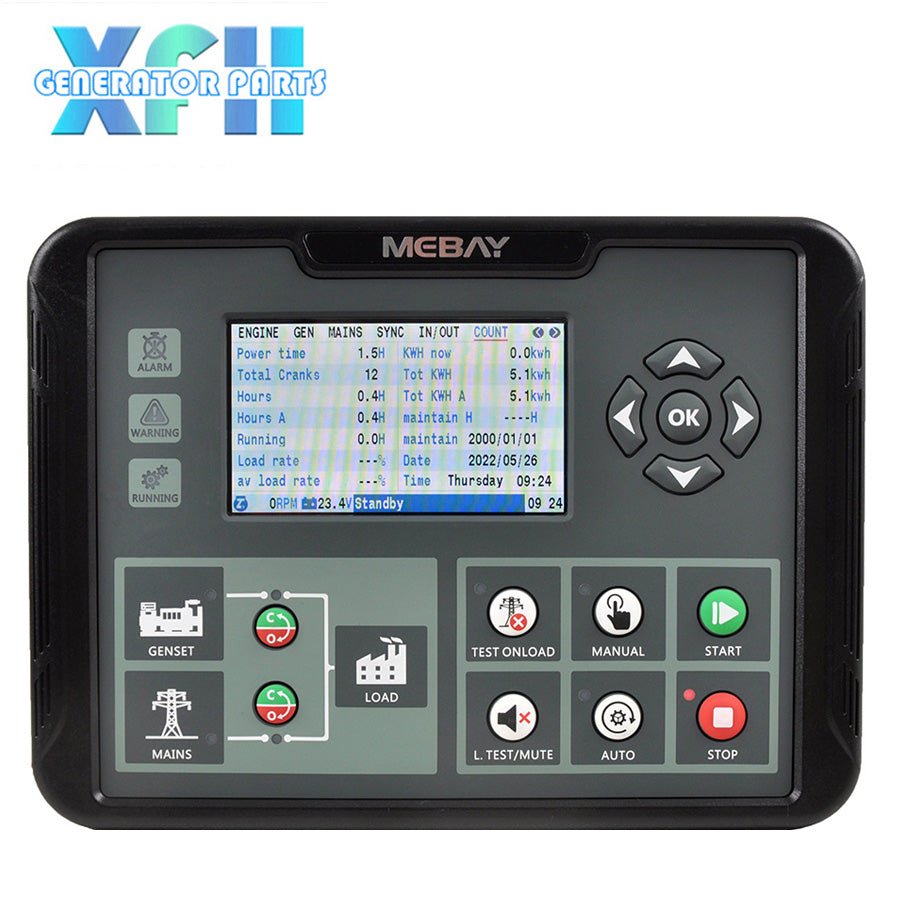

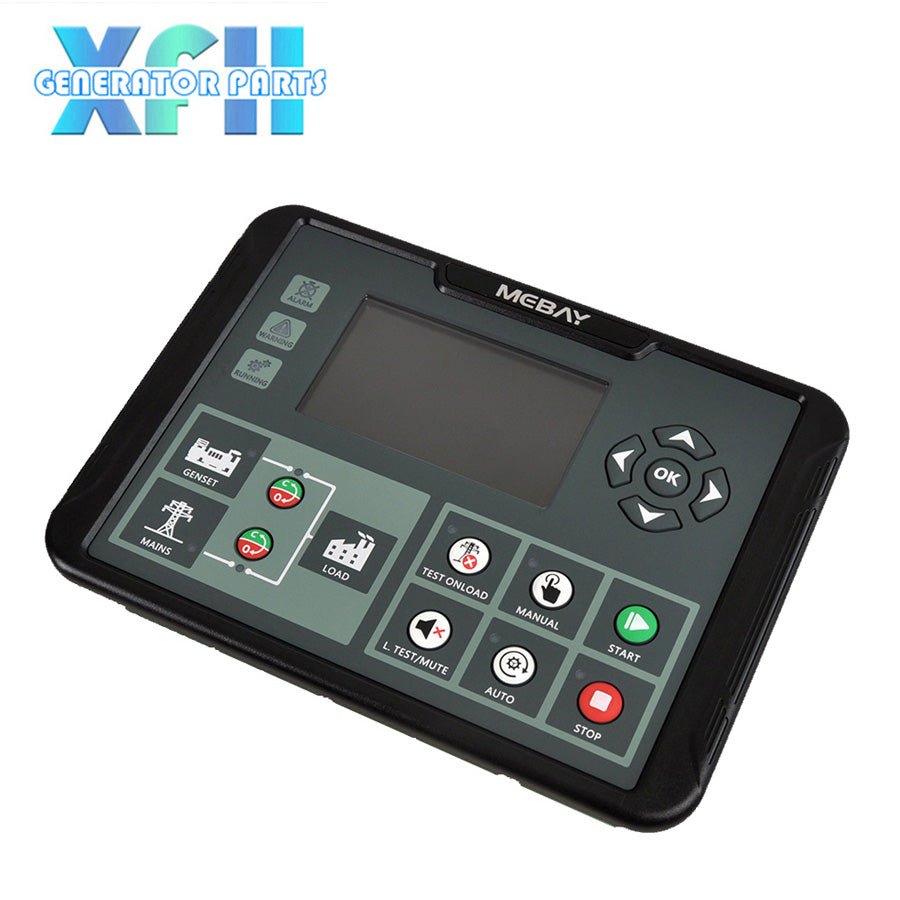

--Dual core 32bit high performance single chip microcomputer. --4.3inch TFT colorful big screen
--Customer logo can be displayed on starting page -- Indicator and number display through UI surface. --Silicone panels; --USB, RS485 and CAN Port. J1939 protocol set inside.
--If you need AMF function, please kindly
--Real time clock inside
--Three class protection countdown function
--Black box function
--Battery charging control function

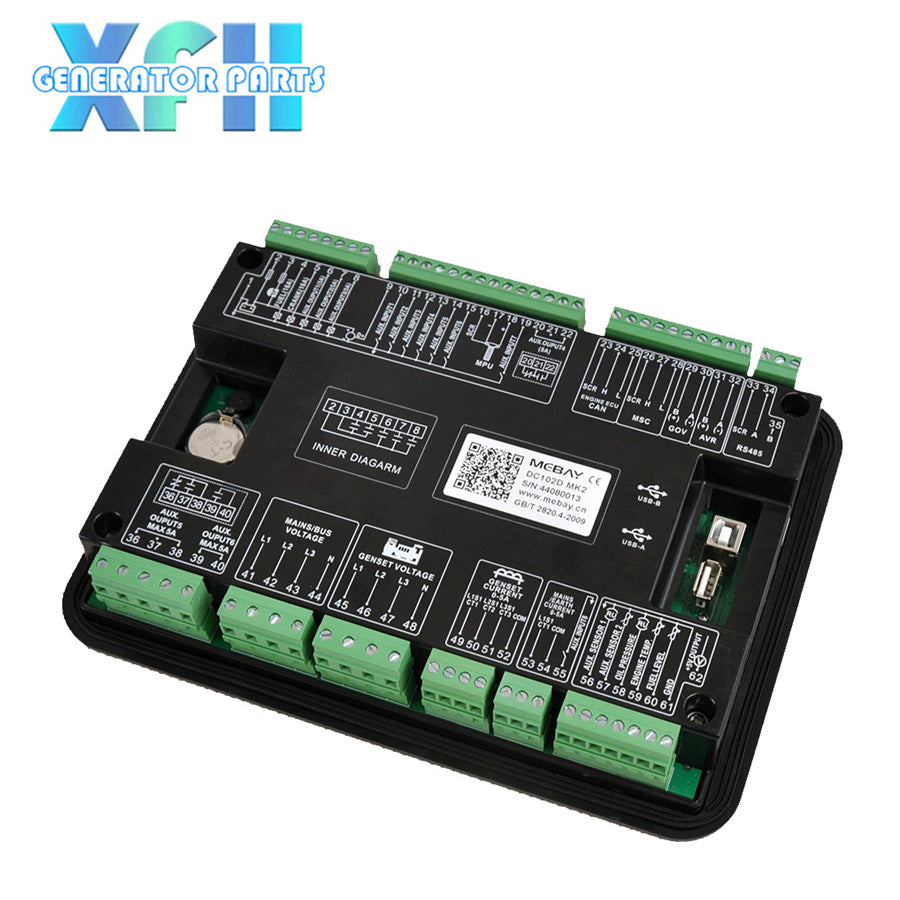

--8 relay’s output, 7 switches input and 5 sensor simulation input connectors
--Adapt to 3P4W, 1P2W, 2P3W (120V/240V,50/60HZ)

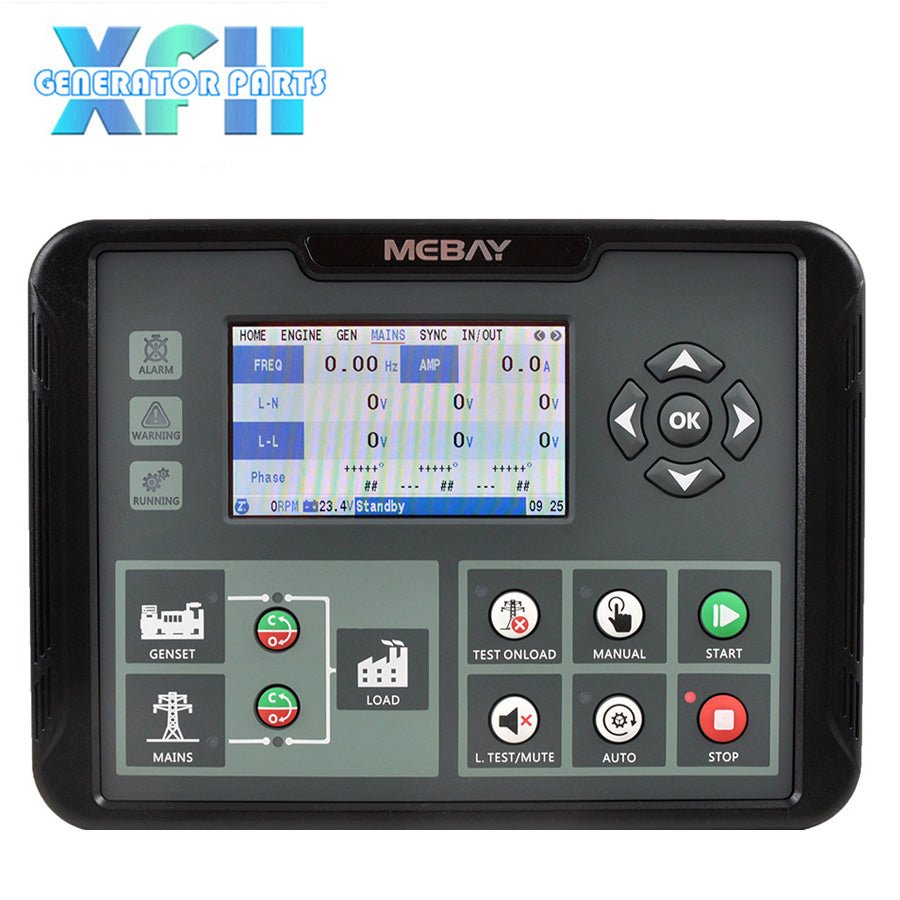

--Collects and shows 3-phase voltage, current, power parameter and frequency of Bus bar.

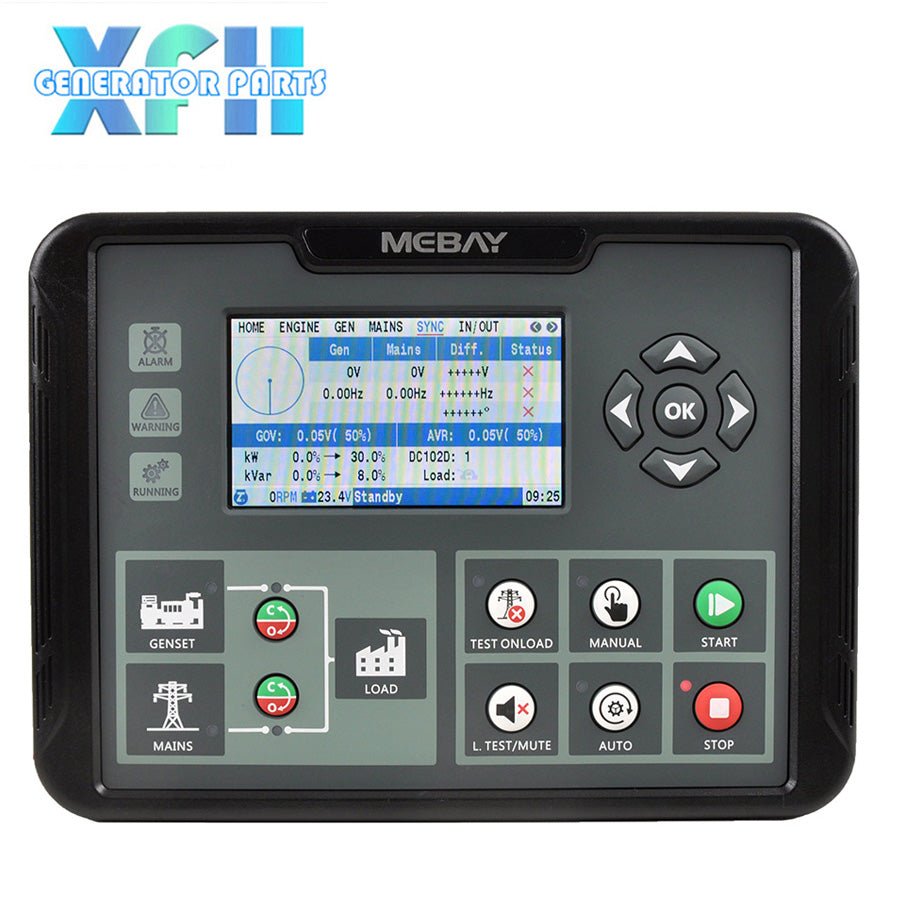

--Synchronization parameters
--Ramp on and ramp off function
Overall dimension
241mm*177mm*45mm
Panel cutout
220mm*160mm
