Mebay DC40C DC40CR Auto Generator Controller CANBUS ECU Engine Controller

Mebay DC40C DC40CR Auto Generator Controller CANBUS ECU Engine Controller

Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.

Model
$107.00
$107.00
Obral Habis
Biaya pengiriman dihitung saat checkout.

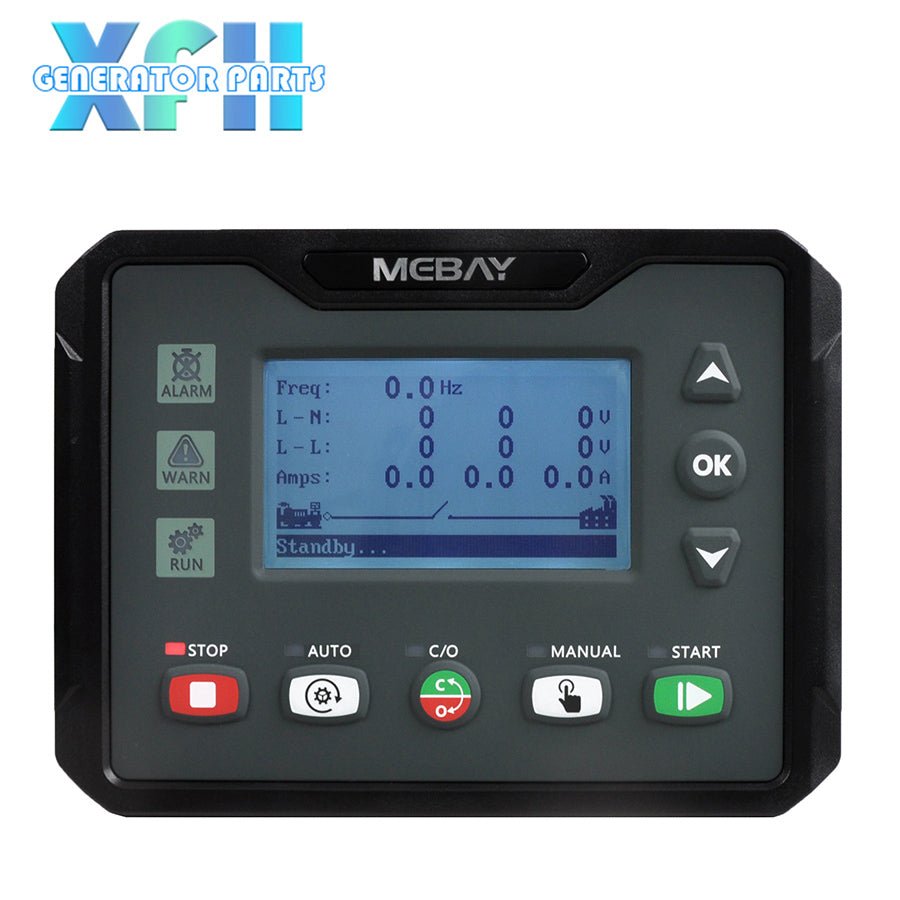

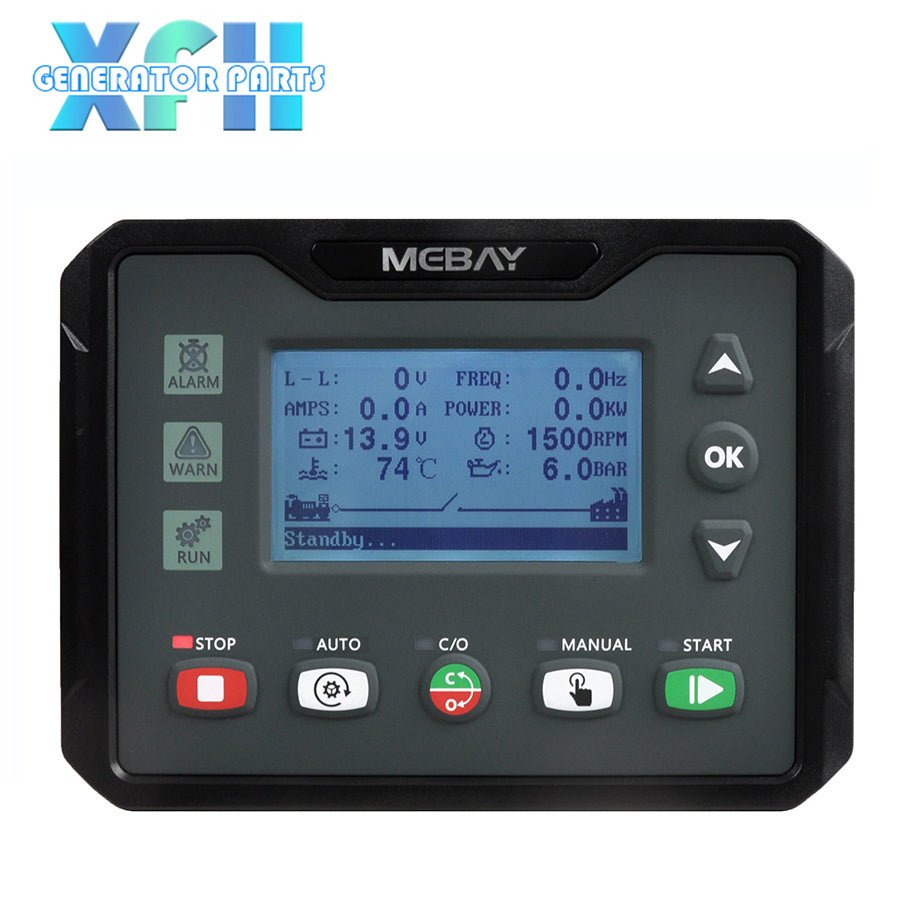

2.8 inch LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.

StandardCAN communication port, built-in J1939 protocol, has matched more than 40 kinds of engines;

  1. Parameters Display

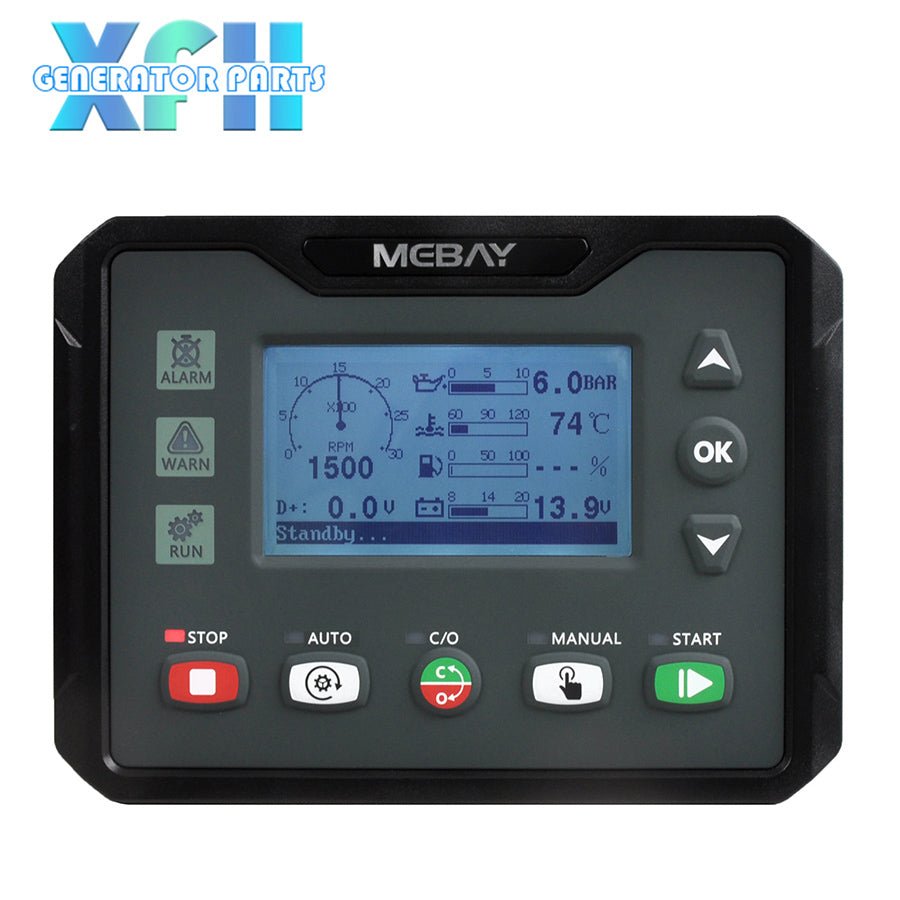

    • Engine RPM
    • Engine oil pressure
    • Engine temperature
    • Engine fuel level
    • Engine battery voltage
    • Charging voltage
    • CAN related parameters(C series only)
    • Mains Frequency (only for DC42C)
    • Mains phase voltage L-N (only for DC42C)
    • Mains phase voltage L-L (only for DC42C)
    • Generator 3 Phase voltage L-N
    • Generator 3 Phase voltage L-L
    • Generator 3 phase current A
    • Generator Frequency Hz

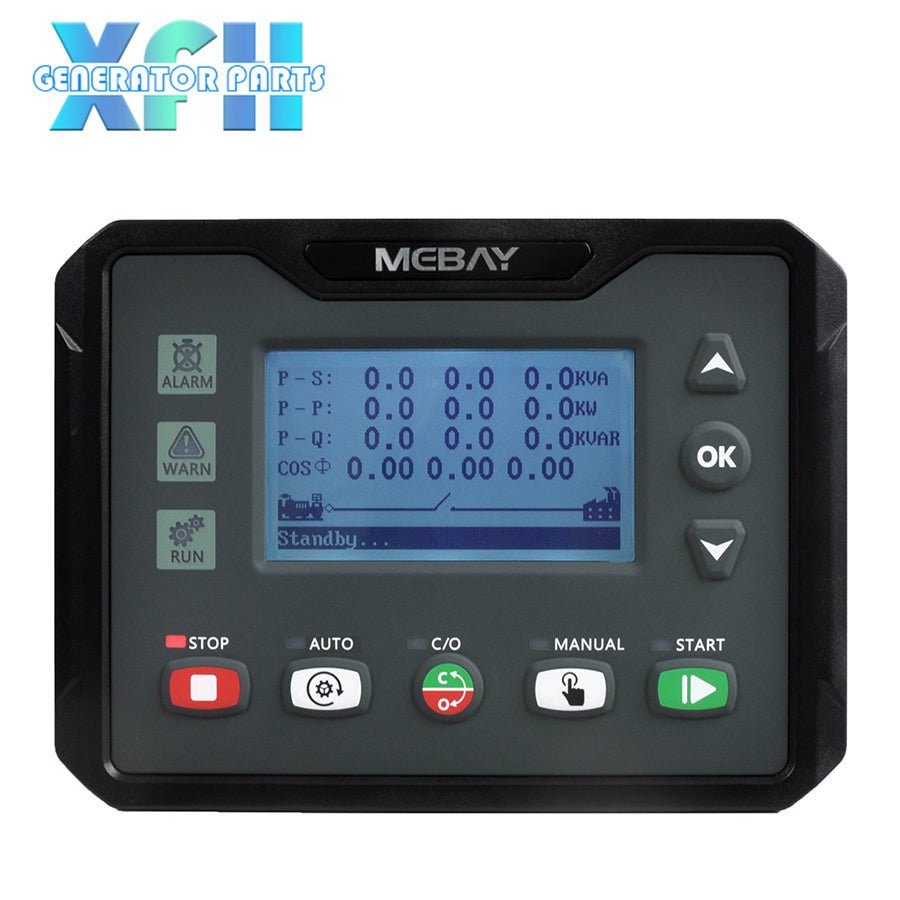

    • Generator Power Factor COS φ
    • Generator active power KW
    • Generator apparent power KVA
    • Generator reactive power KVar

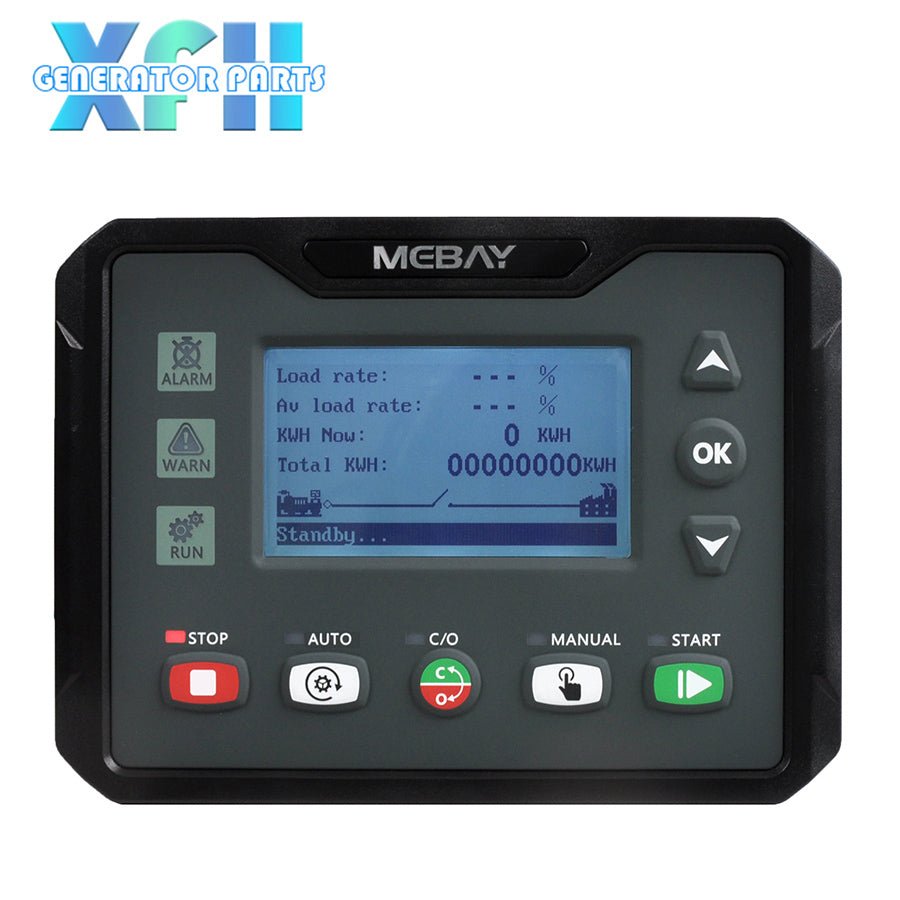

    • Real-time load rate %
    • Current load rate %
    • Average loading rate %
    • Current consumption KWH
    • Total consumption KWH

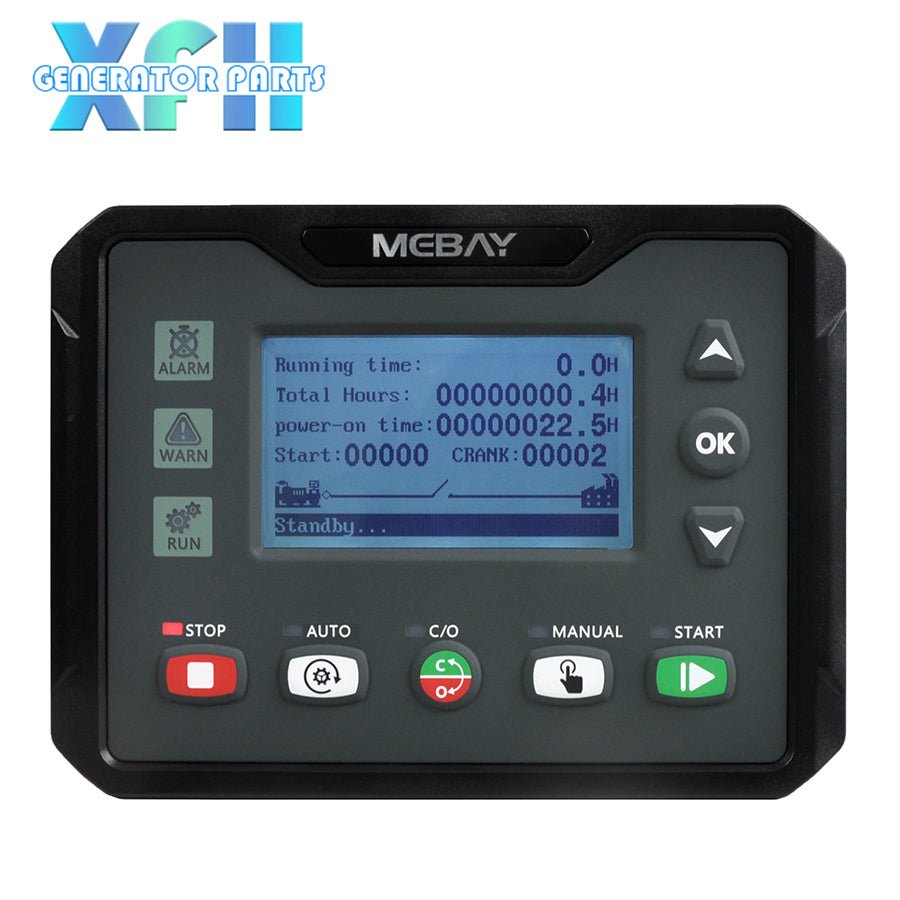

    • Total Crank times
    • Cumulative power on time of controller
    • Current running time
    • Total running time

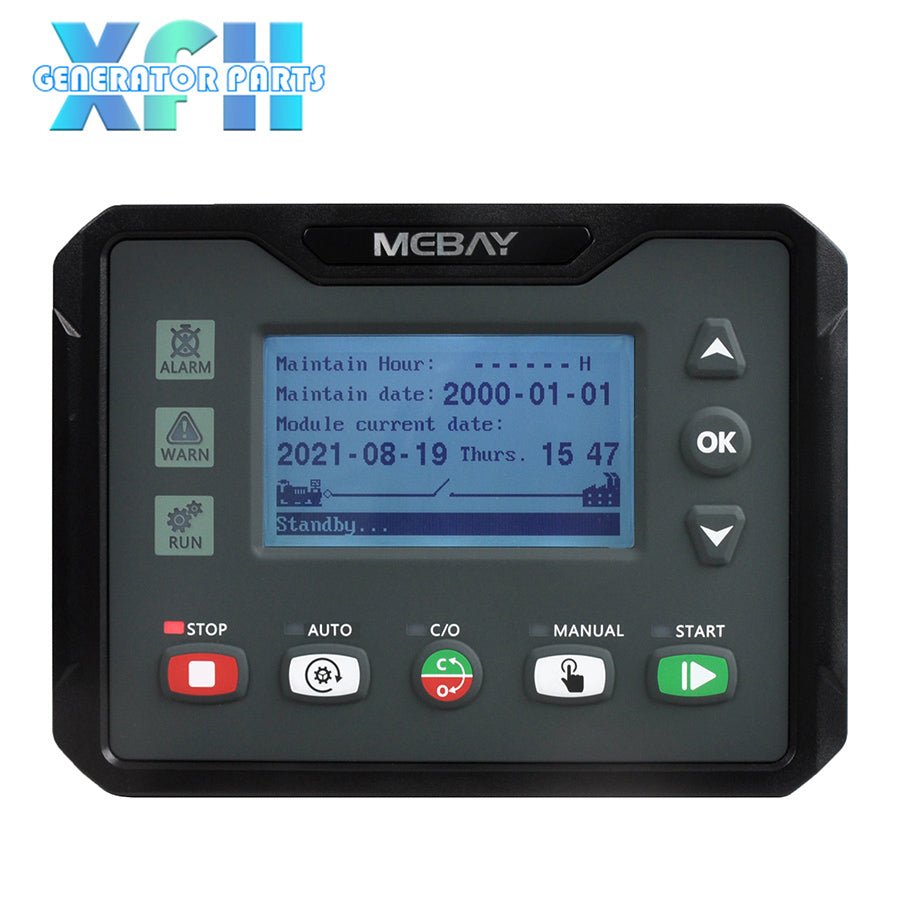

    • Maintenance notice

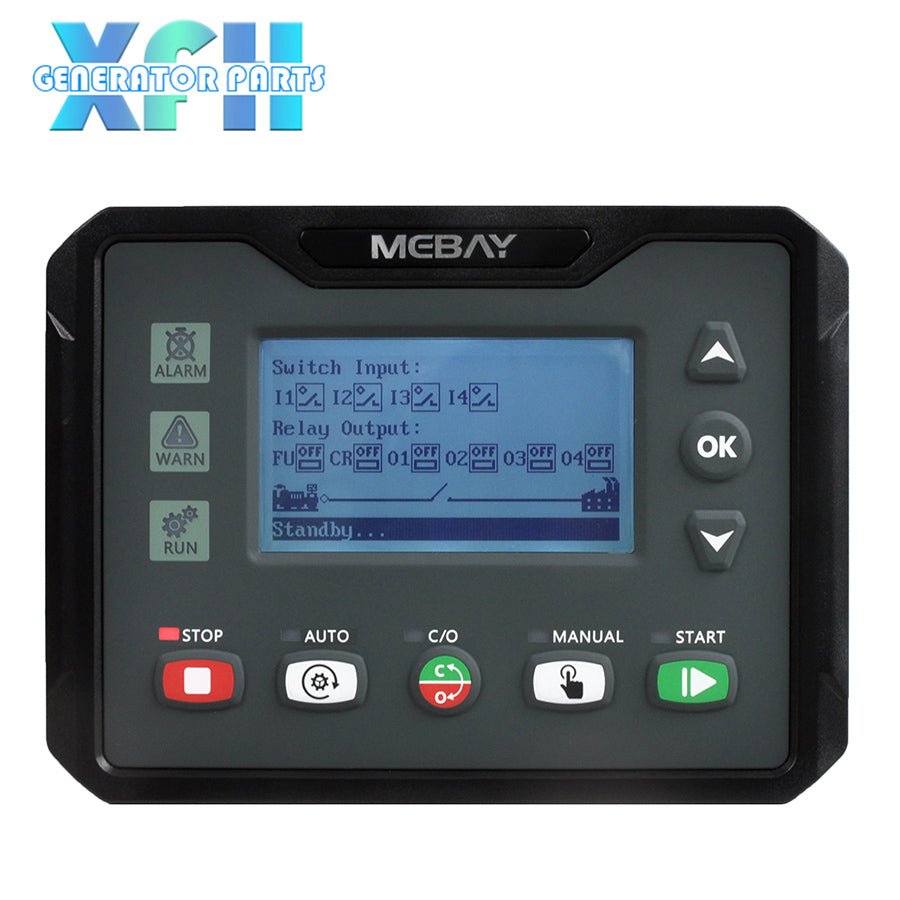

    • Switches input status display
    • Output status display of relays
    • Current date and time;
  1. Protection
    • Over speed
    • Under speed
    • Low oil pressure
    • High temperature
    • Low fuel level
    • External emergency alarm
    • D+ open
    • RPM Lost
    • Sensor Open
    • Over Frequency
    • Under Frequency
    • Over voltage
    • Under voltage
    • Over current
    • Non-balance of current
    • Overpower
    • Maintenance expire
    • Low water level alarm
    • Emergency Stop
    • Crank failure
    • Battery over voltage
    • Battery under voltage
    • The charger fails to charge
    • Charger charging failure
    • Stop Failure
    • ECU alarm failure
    • ECU communication Failure

Options

Parameters

Working voltage

DC8V----36V Continuous

Power consumption

Standby：24V：MAX 2W



Working：24V：MAX5W

AC Voltage Input

1P2W 30VAC-276VAC (ph-N)



2P3W 30VAC-276VAC (ph-N)



3P4W 30VAC-276VAC (ph-N)

MAX Accumulating Time

99999.9Hours（Min Store time:6min）

Fuel Relay Output

Max 5Amp DC+VE Supply voltage

Start Relay Output

Max 5Amp DC+VE Supply voltage

AUX.OUTPUT 1

Max 1Amp DC+VE Supply voltage

AUX.OUTPUT 2

Max 1Amp DC+VE Supply voltage

AUX.OUTPUT 3

Max 1Amp DC+VE Supply voltage

AUX.OUTPUT 4

Max 1Amp DC+VE Supply voltage

Excitation output

Max 0.9AMP DC+VE supply voltage

AUX. Input

Available if connecting with Battery -

Working condition

-25-65℃

Storage condition

-40-85℃

Protection Level

IP54：when waterproof rubber gasket is added between controller and its panel

Insulation strength

Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Overall dimension

142mm*105mm*45mm

Panel cutout

116mm*90mm

Weight

0.6Kg
