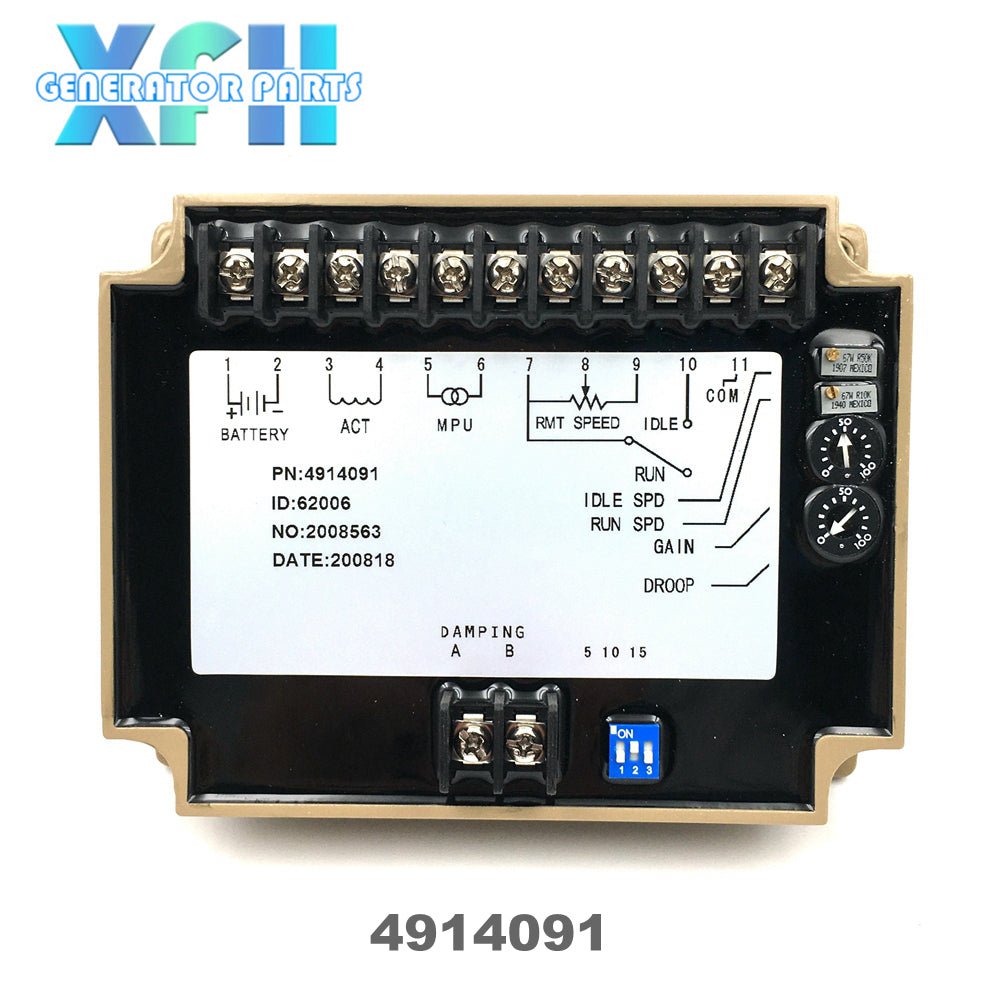

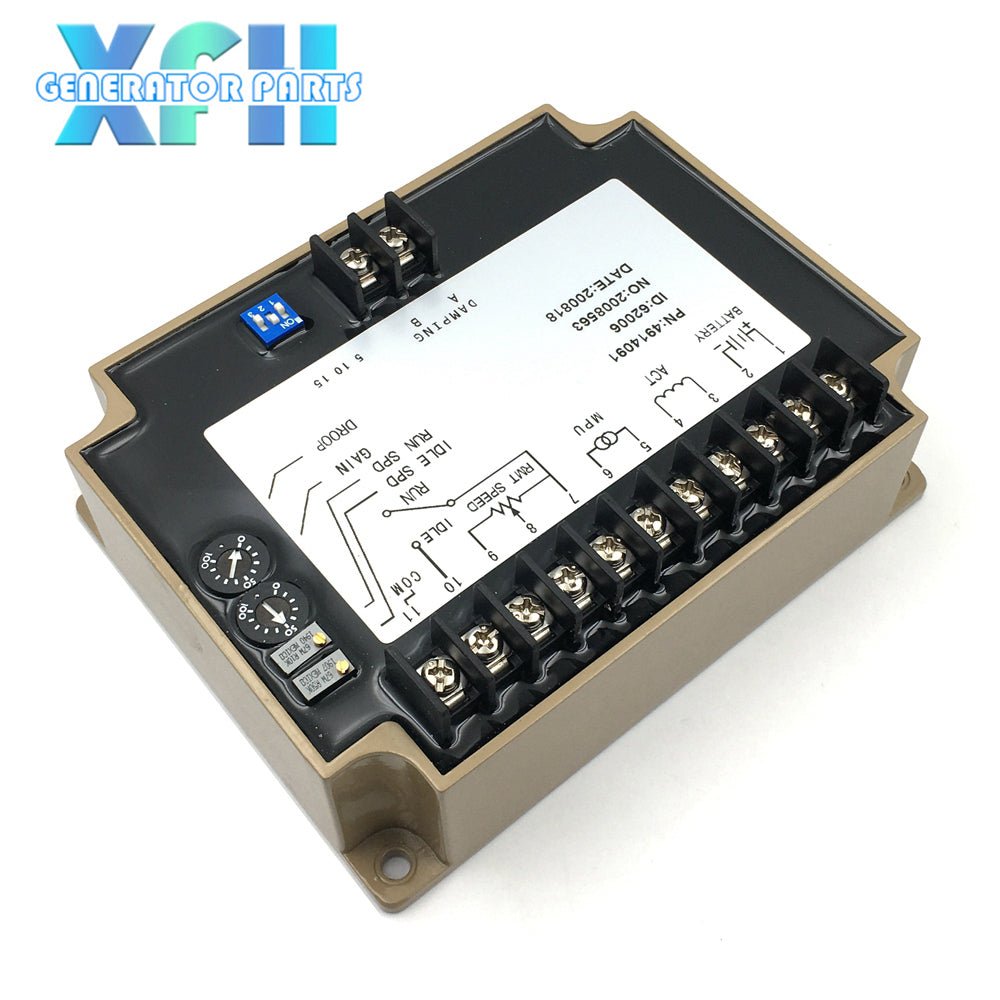

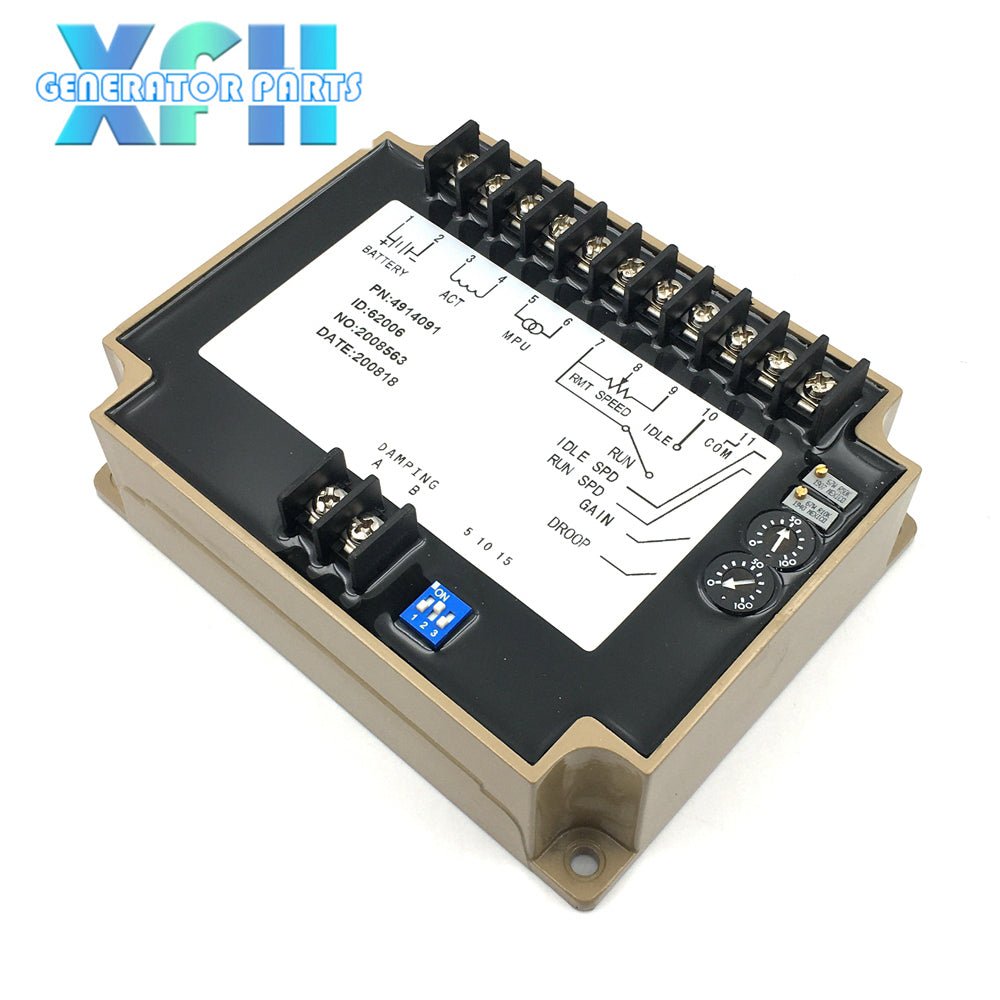

Generator Speed Controller 4914091 Speed Control Governor For Diesel Generator Set
Generator Speed Controller 4914091 Speed Control Governor For Diesel Generator Set
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Impossible de charger la disponibilité du service de retrait
RPM Stability:<±0.25%
Speed Range:1KHz ~ 6.5KHz
Thermal Stability: Max ±0.7%
IDLE Regulation:260 ±20Hz
DROOP Regulation:Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation:±200Hz (with 1 KΩ connected)
AUX Input Sensitivity:148Hz / 1V., ±10Hz
Impedance:1MΩ
ENVIRONMENT:
Working Humidity Range:Maximum 95%
Environment Temprature:-15 ~ 55 °C
Shocking:25HZ 2mm
INPUT POWER SUPPLY:
Voltage: 12 or 24V DC
Grounding Pole:Negative pole
Power Supply:Negative pole
Actuator Continuous Current: Maximum 2.5A
insulating strength:≥500MΩ
