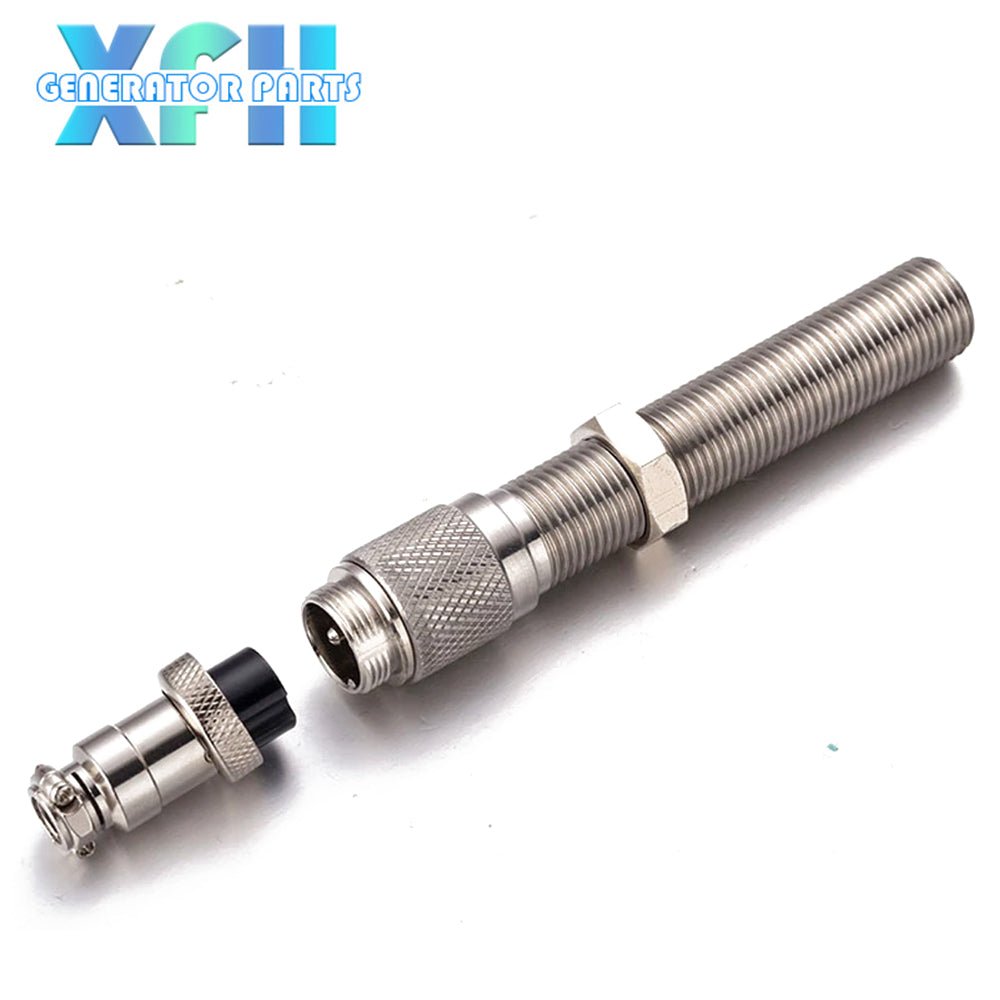

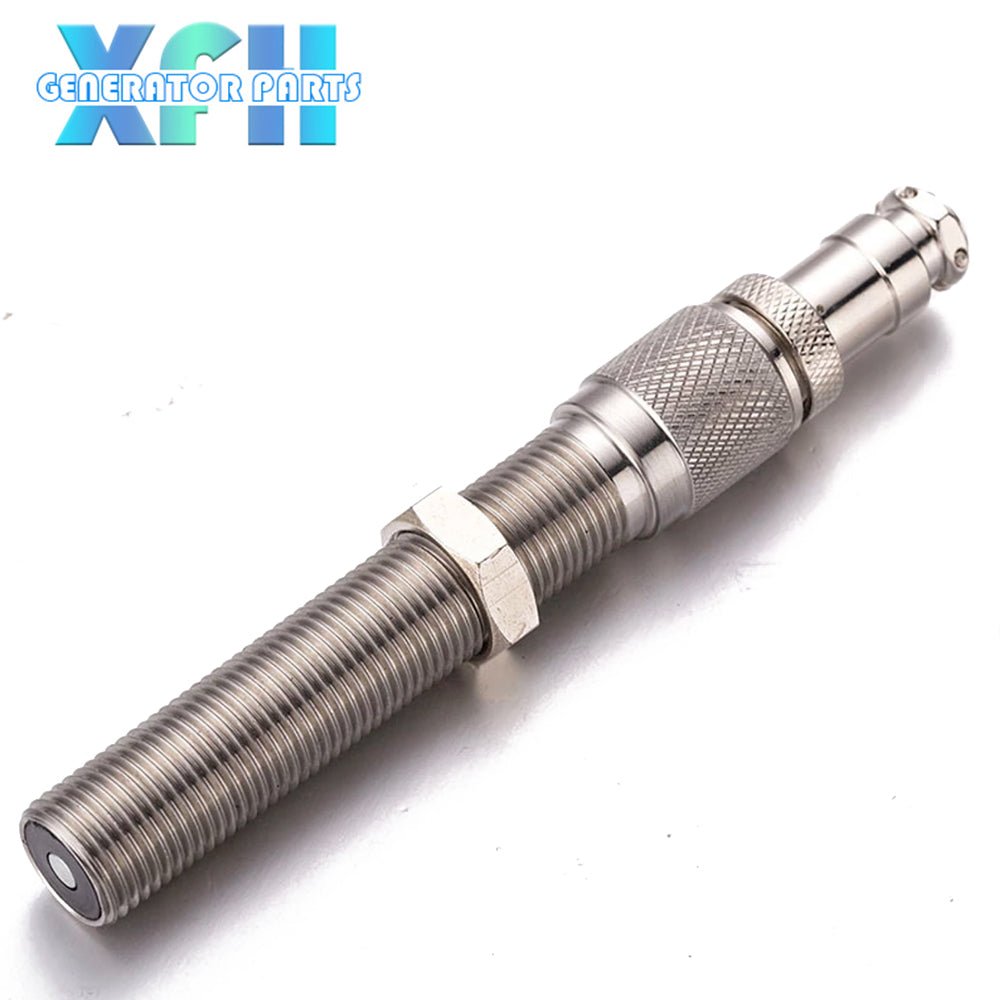

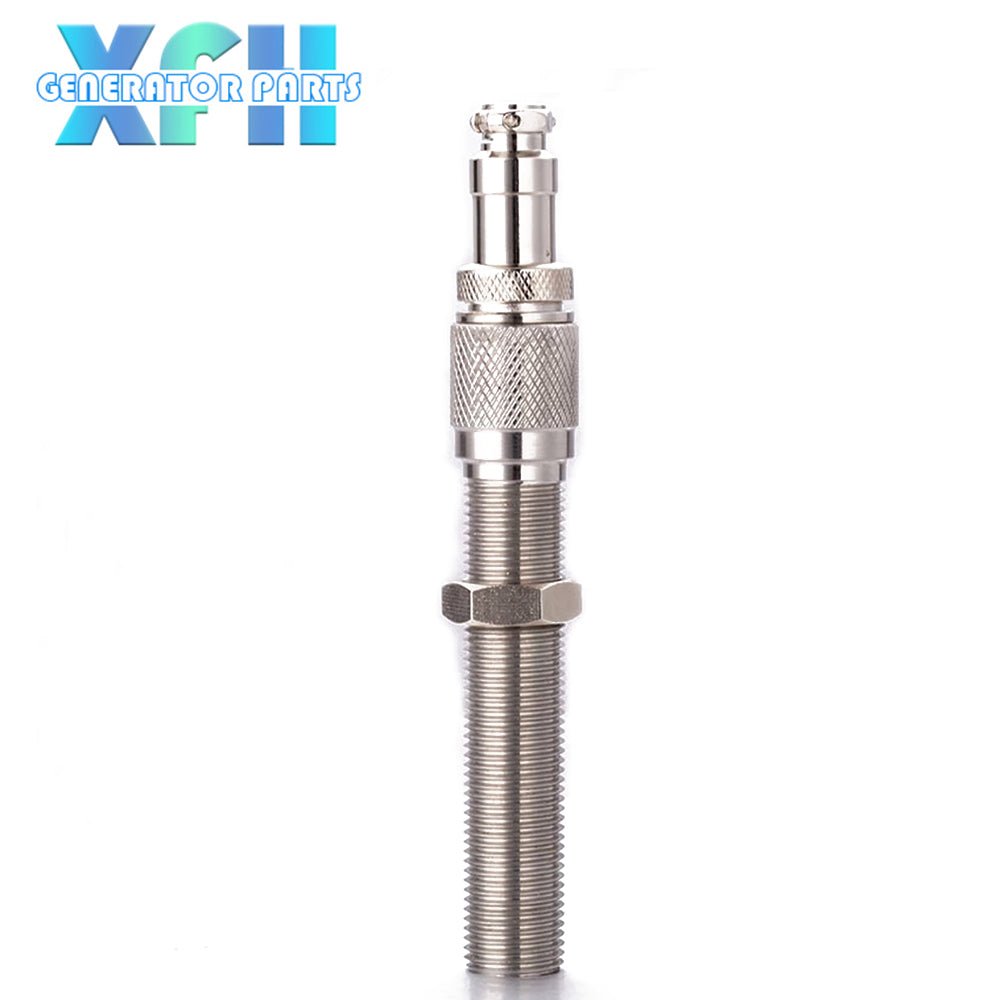

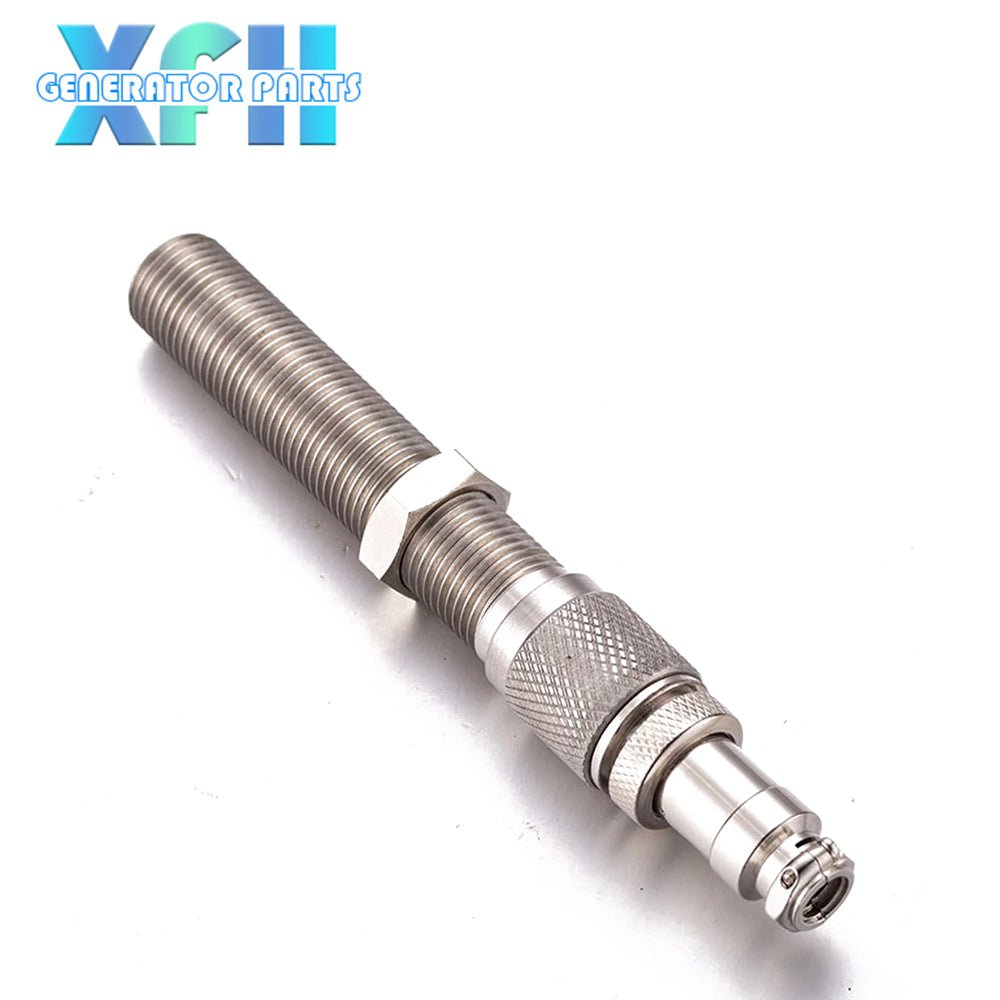

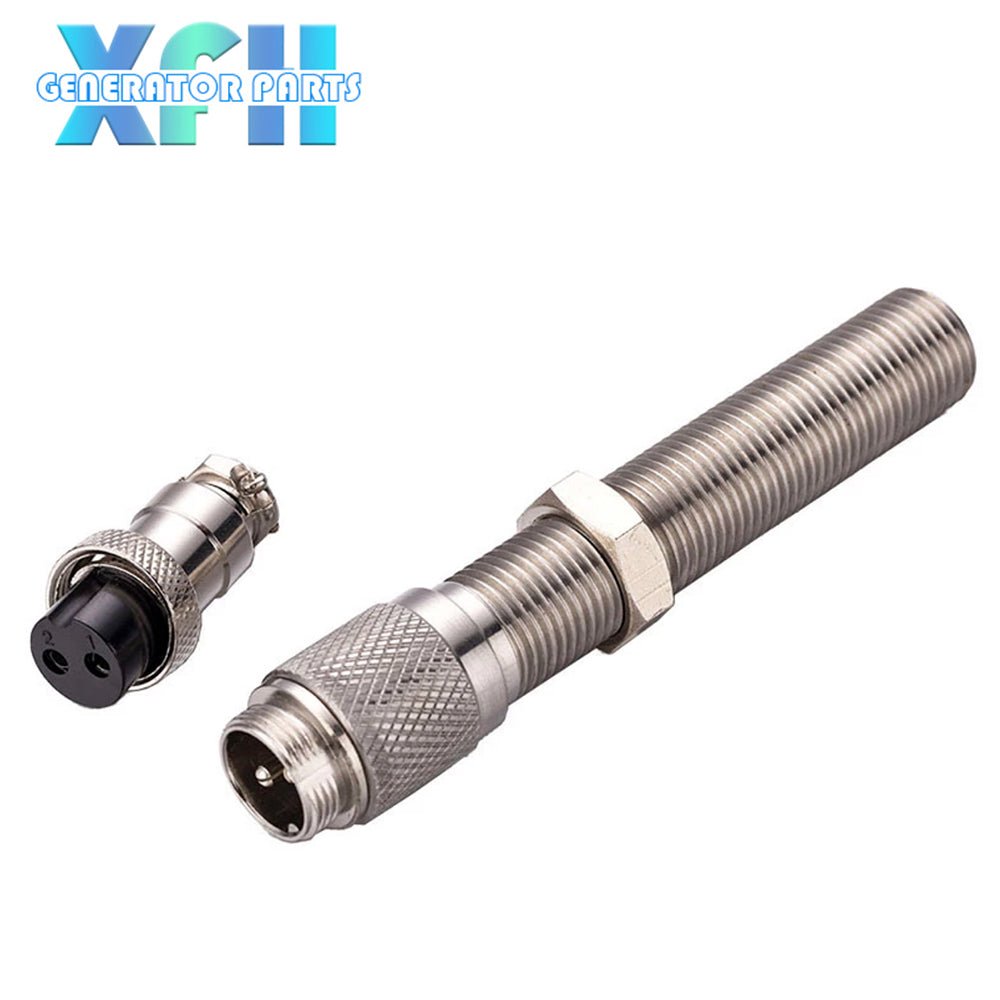

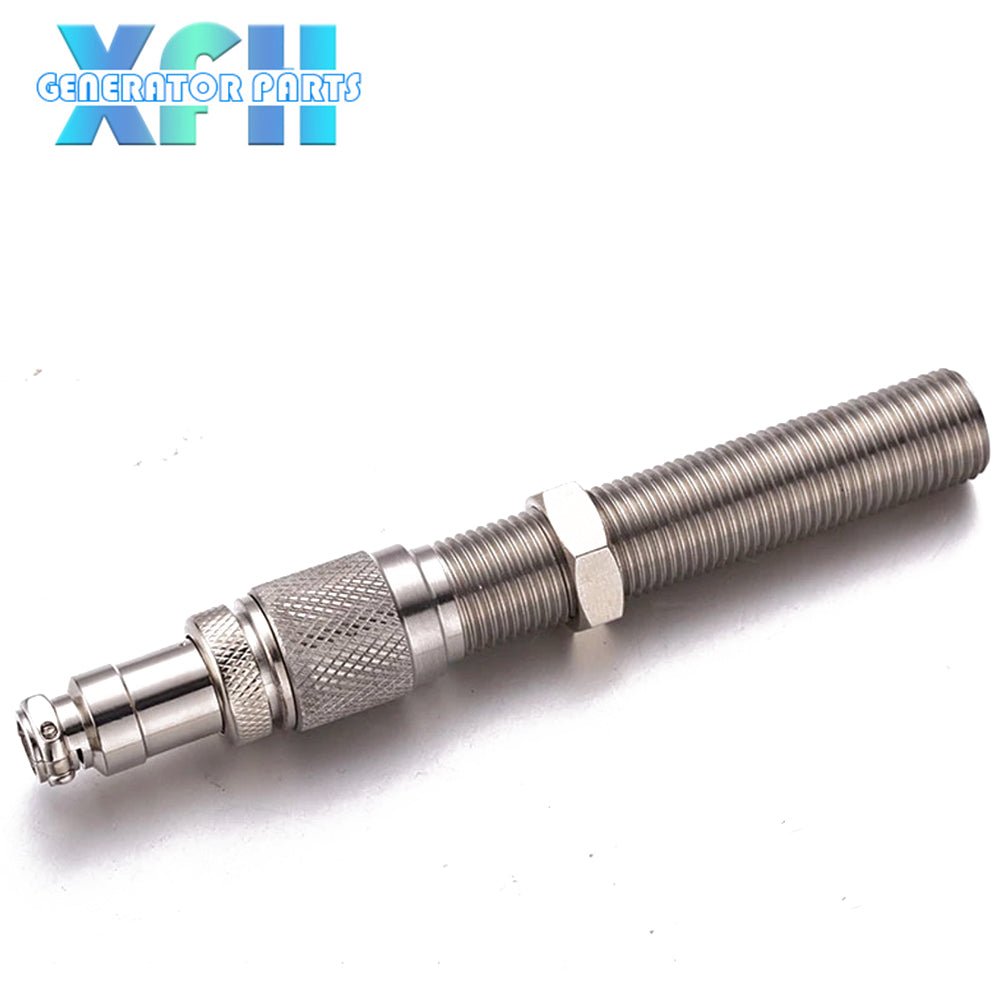

MSP679 Generator Magnetic Pickup Speed Sensor MPU MSP679
MSP679 Generator Magnetic Pickup Speed Sensor MPU MSP679
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Impossible de charger la disponibilité du service de retrait
We have Magnetic Speed Sensor MSP679 in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The Speed Sensor MSP679 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the Magnetic Pickup MSP679, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
|
5/8-18 UNF Threaded |
|
||||
|
Product # |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
|
|
MSP674 |
3in [76.2mm] |
High Output 913Ω |
Military |
No |
|
|
MSP675 |
3.19in [81mm] |
7in [178mm] |
Flying Leads |
No |
|
|
MSP676 |
5in [127mm] |
1ft [0.3m] |
Flying Leads |
No |
|
|
MSP677 |
3in [76mm] |
na |
Military |
No |
|
|
MSP678 |
4.86in [123.4mm] |
na |
Military |
No |
|
|
MSP679 MPU |
3in [76.2mm] |
na |
Military |
Yes |
|
|
MSP6710 |
4.86in [123.4mm] |
na |
Military |
Yes |
|
|
MSP6719 |
2.37in [60.2mm] |
1ft [0.3m] Harness |
Flying Leads |
No |
|
|
MSP6720 |
3.86in [98.1mm] |
1ft [0.3m] Harness |
Flying Leads |
No |
|
|
MSP6721 |
3.19in [81mm] |
2.75in [70mm] |
Automotive |
No |
|
|
MSP6721C |
3.19in [81mm] |
2.75in [70mm] |
Automotive |
Yes |
|
|
MSP6722 |
2.37in [60.2mm] |
6in [152mm] |
Push-On Terminals |
No |
|
|
MSP6728 |
3.19in [81mm] |
6.25in [159mm] |
Packard |
No |
|
|
MSP6728C |
3.19in [81mm] |
6.25in [159mm] |
Packard |
Yes |
|
|
MSP6732 |
3.16in [80.3mm] |
3.25in [82.6mm] |
Dual Packard |
No |
|
|
MSP6732C |
3.16in [80.3mm] |
3.25in [82.6mm] |
Dual Packard |
Yes |
|
|
MSP6743 |
3.5in [89mm] |
High Output 1.2kΩ |
#8-32NC-2A Threaded Stud Terminals |
No |
|
