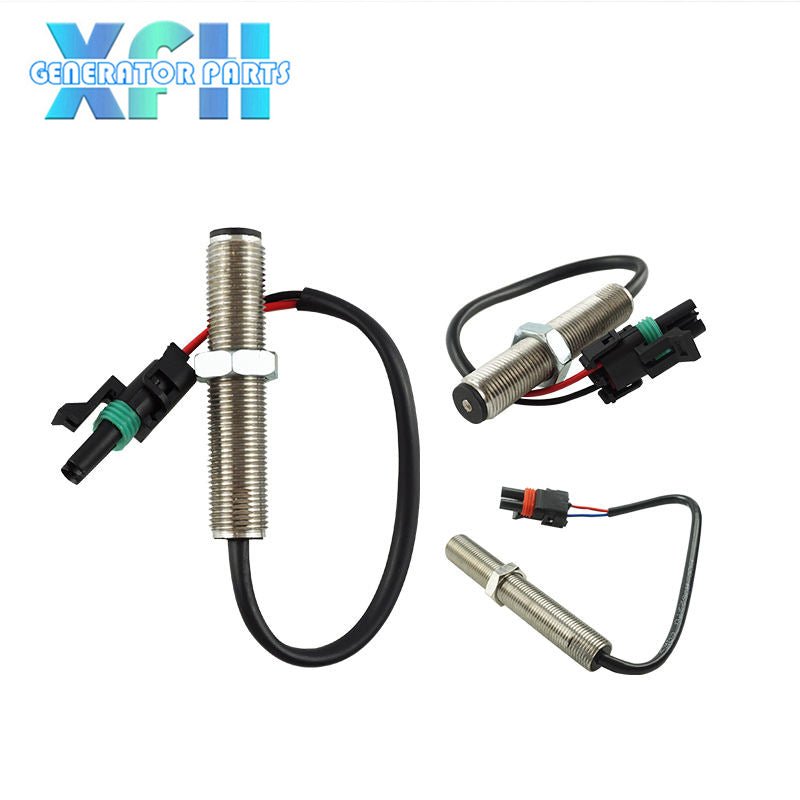

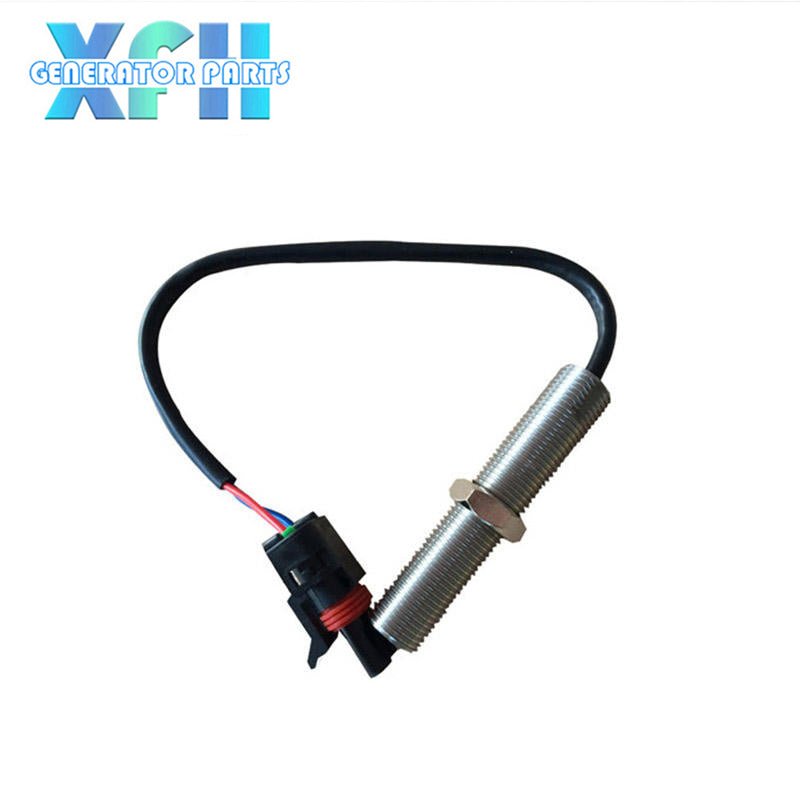

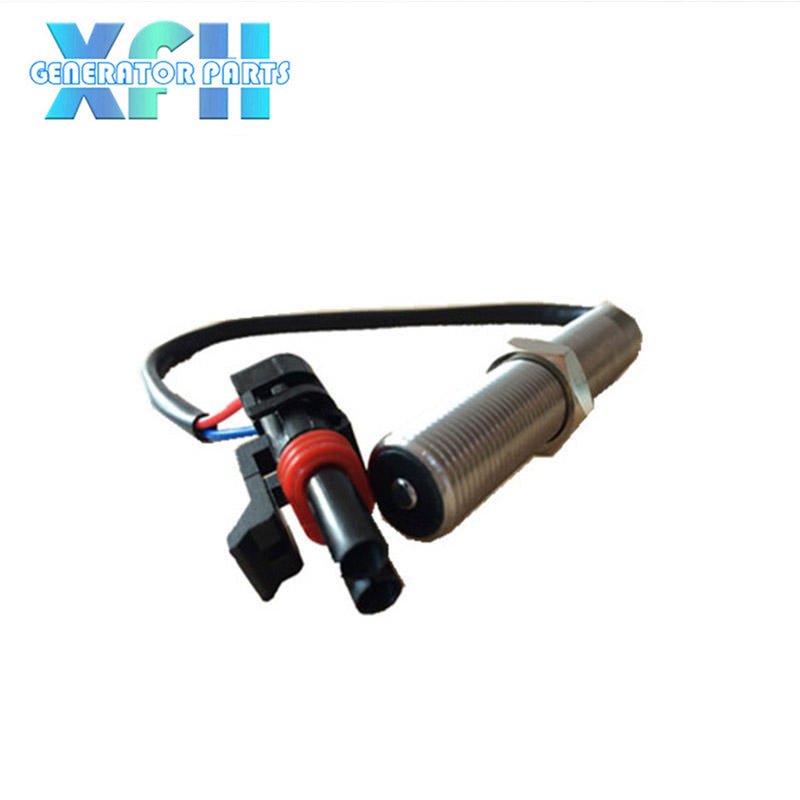

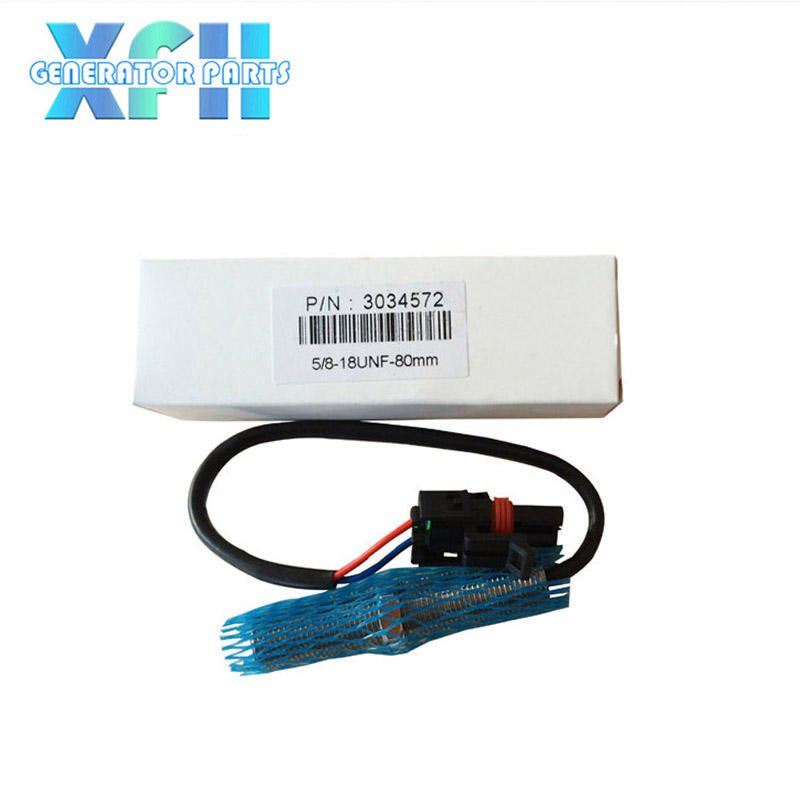

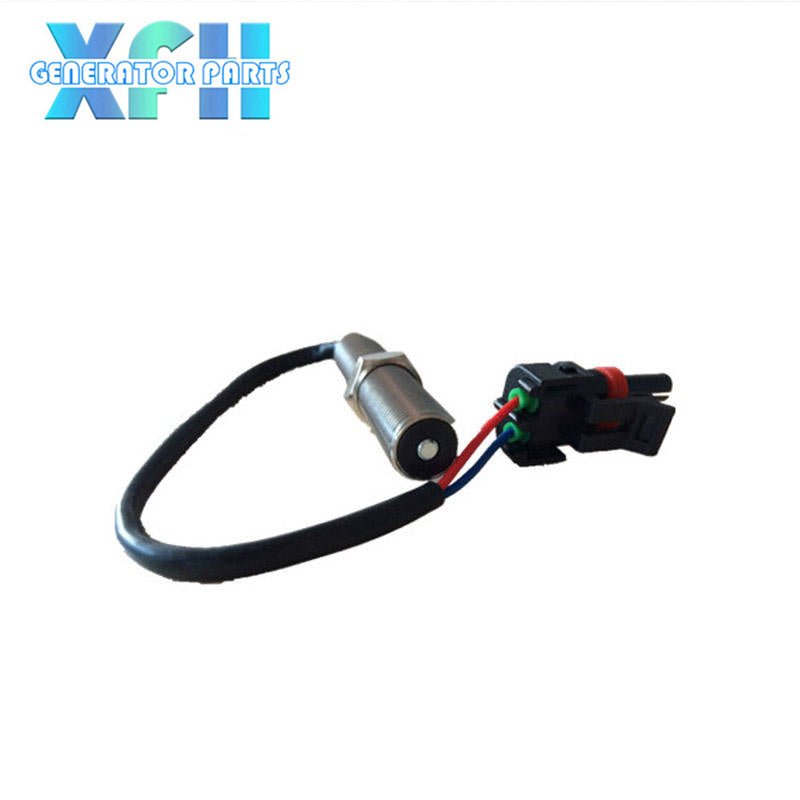

Diesel Engine Magnetic Pickup 3034572 5/8-18UNF MPU Speed Sensors
Diesel Engine Magnetic Pickup 3034572 5/8-18UNF MPU Speed Sensors
Test before shippment, 1 year warranty, pay safe with PayPal. Free Shipping to 63 countries.
Impossible de charger la disponibilité du service de retrait
Diesel Engine Magnetic Pickup MPU Speed Sensors 3034572 indicates when ring gear teeth, or other ferrous projections,pass the tip of the sensor.Electrical impulses are induced within the coil and sent to speed control unit.The signal from the magnetic speed sensor,teeth per second is directly proportional to engine speed.
|
3034572 |
|
|
Range |
50-5000hz |
|
Inductance Value |
42mh + 25% |
|
Resistance Value |
300 ohms maximum |
|
Thread |
5 / 8-18 unf-2a |
|
Distance from Tooth |
028 in min. -. 042 in max |
|
Temperature Range |
- 55 to 105 |
|
Idle Output |
1.5 volts AC minimum |
|
Output |
30 volts AC |
