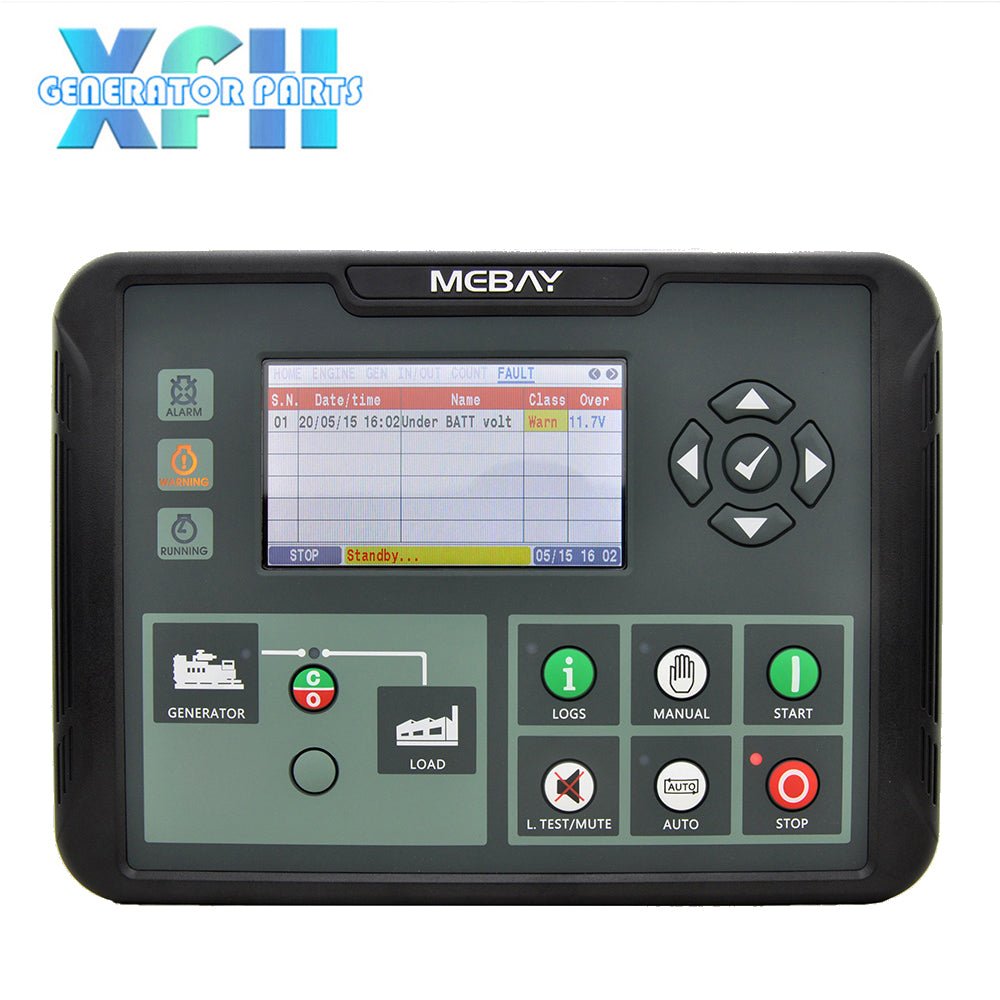

Mebay Generator Controller DC80D DC80DR Generator AMF Control Unit with LCD Display

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.

4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.

Main Features

There are four Models under DC8xD MK3 series.

DC80D MK3: used for single machine automation. Start/Stop through remote start signal.

DC82D MK3: Based on DC80D MK3, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.

DC80DR MK3: Based on DC80D MK3, it adds RS485 port.

DC82DR MK3: Based on DC82D MK3, it adds RS485 port.

• Real time clock inside.
• Maintenance countdown function, can set maintenance timing or date.
• The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault.
• Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals.
• 5 relays can be set as switch value input, and function configurable.
• 3 sensor simulation input connectors, various kinds of units can be set.
• Sensor can be self-defined by front face button or PC software.
• Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
• Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
• Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
• Standard water-proof rubber gasket. The waterproof can reach IP54
