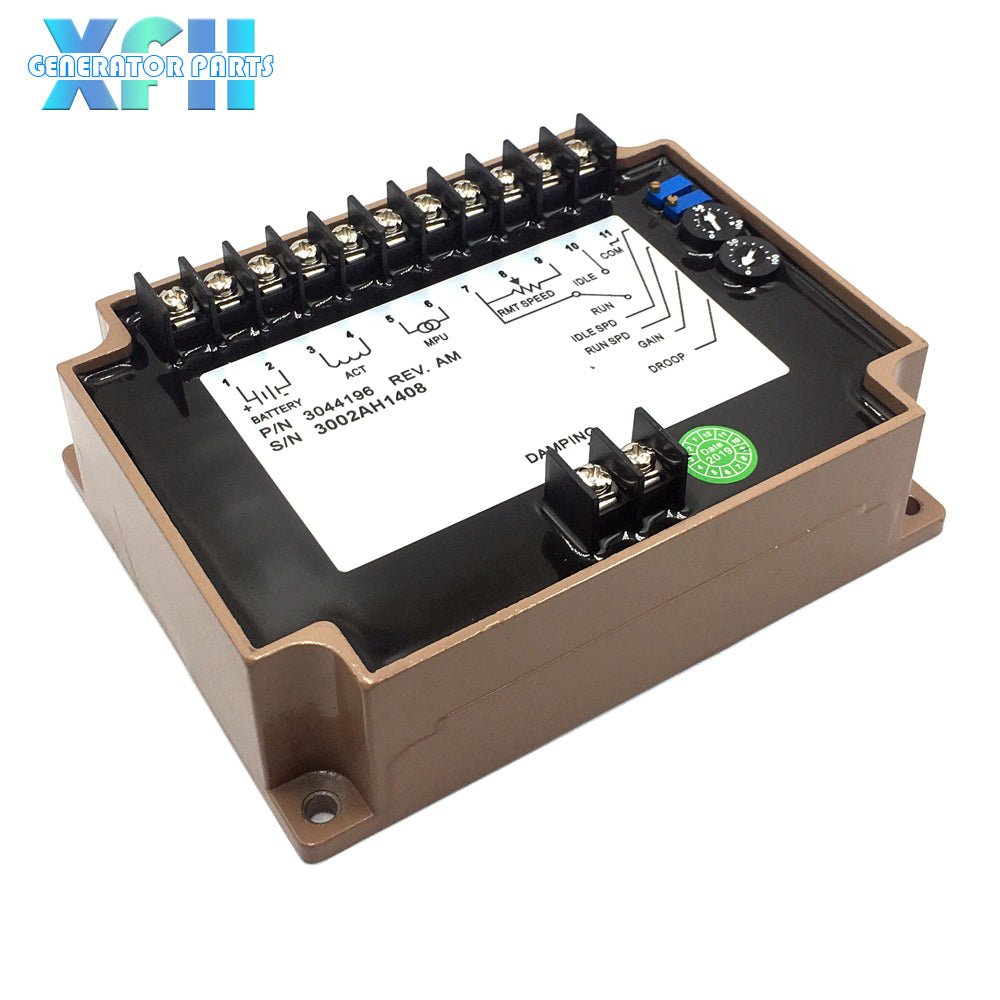

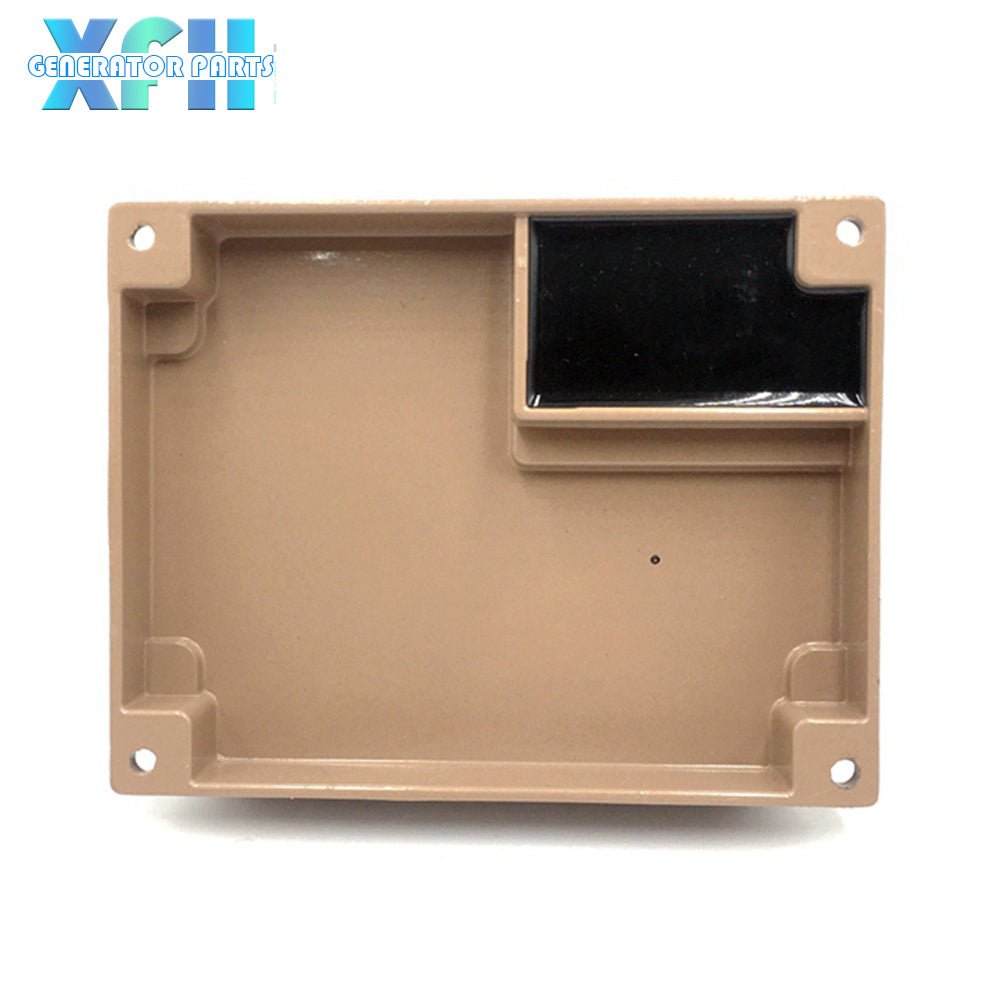

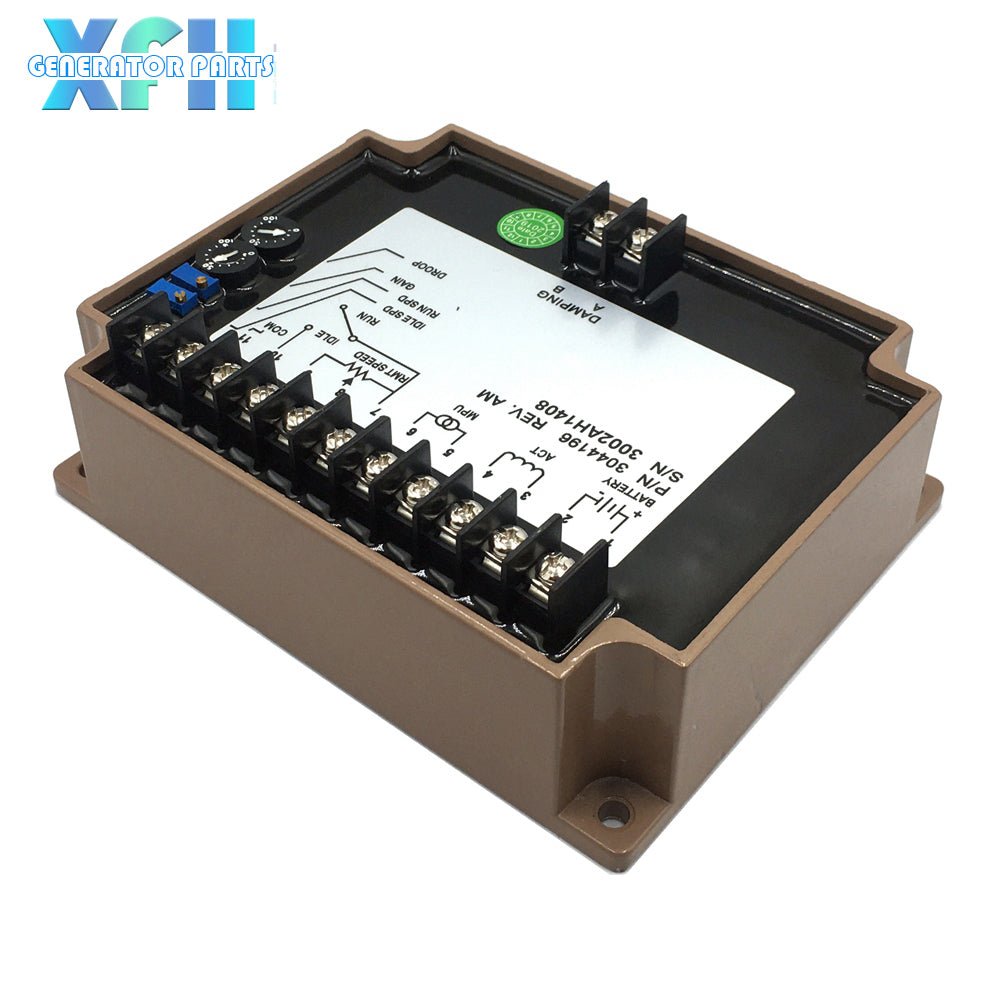

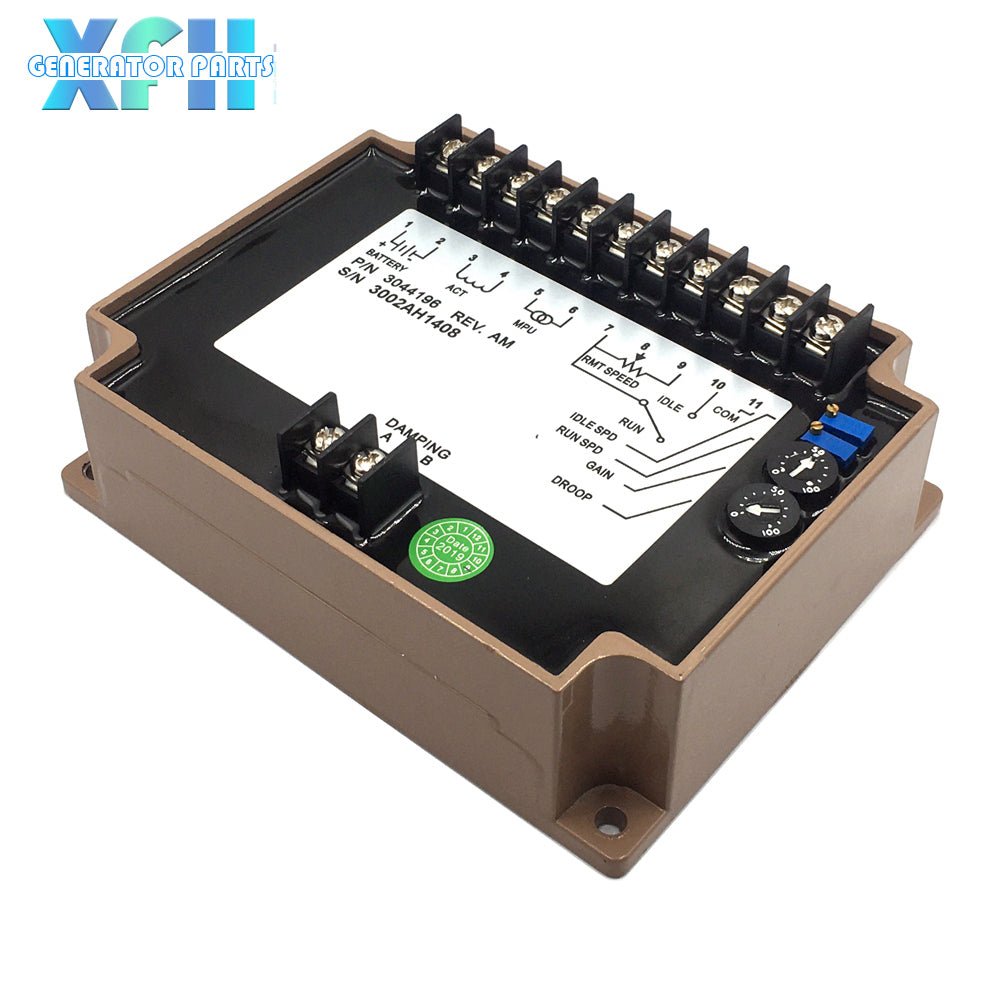

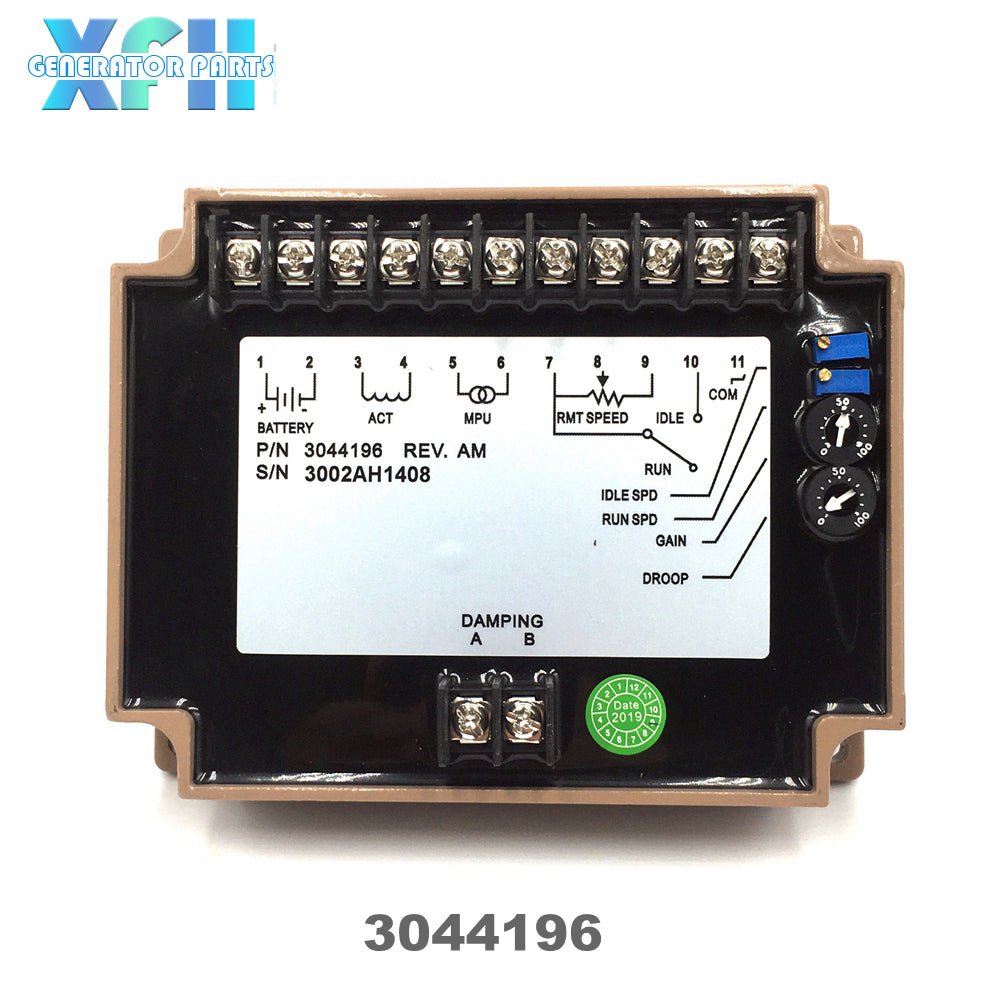

Generator Speed Control Unit EFC3044196 for KTA19 QSK19 K19 Governor Control 3044196 for actuator Replace for Original

3044196 is an engine speed controller designed by all electronic devices for CUMMINS actuator, the speed controller has fast and precise response to transient load changes. It has a wide speed control range.

SPECIFICATION
RPM Stability: <±0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal Stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz

DROOP Regulation
Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85 °C

ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92 °C
Shocking: 20-100HZ 500mm/Sec.

INPUT POWER PROVIDE
Voltage: 24V
Grounding Pole: Negative pole
Power Provide: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
