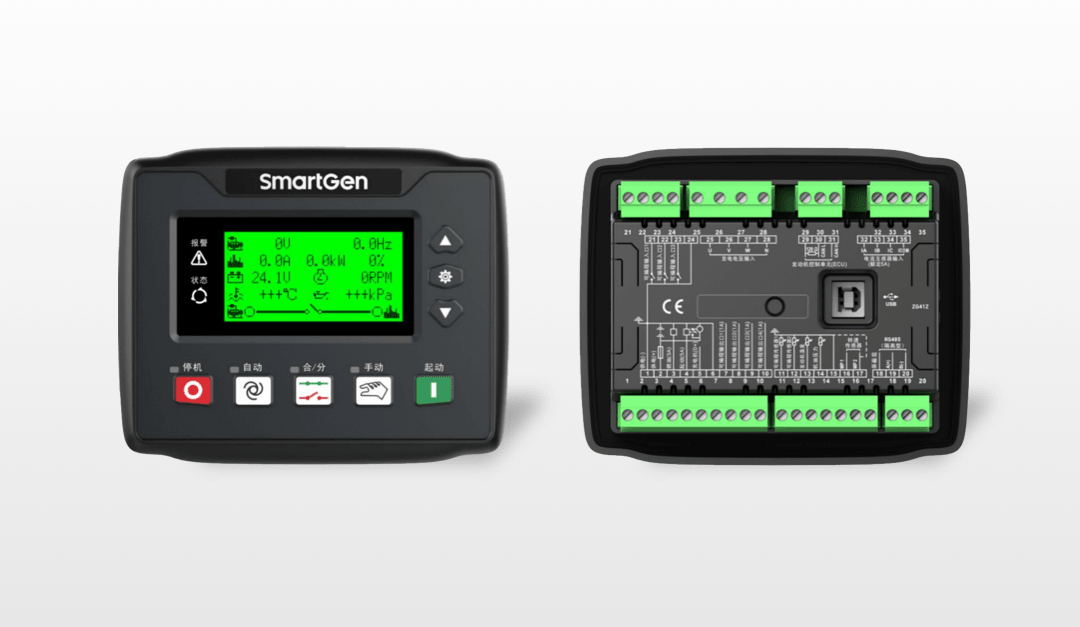

HGM4100Z genset controller adopt domestic components, which can be used for harsh environment like (-40~+70)°C temperature, high humidity, high altitude, strong electromagnetic interference.
1.Main functions and characteristics
● Purely domestic components with Chinese mark
● Wide working temperature range: (-40~+70)°C
● With USB、RS485、CANBUS port, suitable for various ECU engine and can realize remote monitoring via RS485 (isolated type)
● 6-way relay output (crank, fuel and 4-way custom output)
● 5-way digital input (3+2 multiplex input port)
● 4-way analog input (3+2 multiplex input port)
● 3-way generation current sampling input (built-in CT)
● With charger D+ voltage, engine speed (MPU) sampling input
● Front panel protection class can reach IP65
● With event log, maintenance, battle mode, instrument mode
● Remote monitoring module (HGM4100Z-RM) and local control module (HGM4100Z) can communicate via RS485 and realize local/remote monitoring function
2.Typical Application
3.Overall Dimension and Cutout
